Highway Traffic Act
Code de la route

ONTARIO REGULATION 413/05

vehicle weights and dimensions — for safe, productive and infrastructure-friendly vehicles

Consolidation Period: From November 29, 2016 to the e-Laws currency date.

Last amendment: O. Reg. 402/16.

This Regulation is made in English only.

CONTENTS

Application and Interpretation

1.

Application

2.

Definitions

Designated Vehicles and Combinations

3.

Designated tractor-trailer combinations

3.1

Designated buses and recreational vehicles

3.2

Designated trucks

3.3

Designated truck-trailer combinations

3.4

Designated saddlemount combination

4.

Weight limit chart not determinative of designated vehicle or combination

Preconditions for Designated Vehicles or Designated Combinations

5.

Liftable axles and controls

6.

Rear impact guards

7.

Brakes

8.

Tires

9.

Wheel cut

10.

Self-steering axle locking device

11.

Tri-drive locking device

12.

C-train equipment

13.

Labelling

14.

Weight requirements

Rules Applicable to Designated Vehicles and Designated Combinations

15.

Dimensional limits for long combinations

17.

Axle unit weight limits

19.

Axle group weight limits

20.

Maximum allowable gross vehicle weight — designated vehicles and combinations

Rules Applicable to Non-Designated Vehicles and Combinations

21.

Maximum allowable gross vehicle weight — non-designated vehicles and combinations

22.

Maximum allowable gross vehicle weight — transition for non-designated vehicles and combinations

25.

Aggregate vehicles

34.

Permits

34.0.1

Special permits to exceed dimension and weight limits, certain vehicles

34.1

Axle weight limits

35.

Tractor tandem axle weight increases

Miscellaneous

36.

Flexible aerodynamic devices not included in length

36.2

Exemption from all maximum weights — fire apparatus

Schedules of Designated Vehicles and Combinations

37.

Interpretation for Schedules

38.

Application of Vehicle Weight Tables

Schedule 1

Designated tractor-trailer combination 1 — tractor fixed axle semi-trailer

Schedule 2

Designated tractor-trailer combination 2 — tractor self-steer triaxle semi-trailer

Schedule 3

Designated tractor-trailer combination 3 — tractor self-steer quad semi-trailer

Schedule 4

Designated tractor-trailer combination 4 — tractor self-steer 5-axle semi-trailer (1-3-1)

Schedule 5

Designated tractor-trailer combination 5 — tractor self-steer 5-axle semi-trailer (1-1-3)

Schedule 6

Designated tractor-trailer combination 6 — tractor self-steer 6-axle semi-trailer (1-4-1)

Schedule 7

Designated tractor-trailer combination 7 — tractor self-steer 6-axle semi-trailer (1-1-4)

Schedule 8

Designated tractor-trailer combination 8 — tri-drive tractor fixed axle semi-trailer

Schedule 9

Designated tractor-trailer combination 9 — tri-drive tractor self-steer triaxle semi-trailer

Schedule 10

Designated tractor-trailer combination 10 — tri-drive tractor self-steer quad semi-trailer

Schedule 11

Designated tractor-trailer combination 11 — tractor a-train double trailers

Schedule 12

Designated tractor-trailer combination 12 — tractor b-train double trailers

Schedule 13

Designated tractor-trailer combination 13 — tractor c-train double trailers

Schedule 14

Designated tractor-trailer combination 14 — stinger-steer tractor semi-trailer auto carrier

Schedule 15

Designated tractor-trailer combination 15 — tractor hinged semi-trailer

Schedule 16

Designated bus or recreational vehicle 1 — standard bus or comparable recreational vehicle

Schedule 17

Designated bus or recreational vehicle 2 — inter-city bus or comparable recreational vehicle

Schedule 18

Designated bus 3 — articulated bus

Schedule 19

Designated truck 1 — 2-axle truck

Schedule 20

Designated truck 2 — tandem-axle truck

Schedule 21

Designated truck 3 — 3-axle truck plus auxiliary axle

Schedule 22

Designated truck 4 — twin-steer tandem-drive truck

Schedule 23

Designated truck 5 — self-steer triaxle truck

Schedule 24

Designated truck 6 — tri-drive 4-axle truck

Schedule 25

Designated truck 7 — twin steer tri-drive 5-axle truck

Schedule 26

Designated truck-trailer combination 1 — truck and fixed axle pony trailer

Schedule 27

Designated truck-trailer combination 2 – truck and self-steer triaxle pony trailer

Schedule 28

Designated truck-trailer combination 3 – truck and full trailer

Schedule 29

Designated truck-trailer combination 4 – truck and self-steer triaxle full trailer

Schedule 30

Designated truck-trailer combination 5 — truck and tridem-axle full trailer

Schedule 31

Designated saddlemount combination

Vehicle weight table 1

Allowable gross weight on a vehicle with three axles (kilograms)

Vehicle weight table 2

Allowable gross weight on a vehicle with four axles (kilograms)

Vehicle weight table 3

Allowable gross weight on a vehicle with five axles (kilograms) inter-vehicle-unit distance, less than 2.4 metres (or intra-vehicle-unit distance)

Vehicle weight table 4

Allowable gross weight on a vehicle with five axles (kilograms) inter-vehicle-unit distance, 2.4 metres to less than 2.7 metres (or intra-vehicle-unit distance)

Vehicle weight table 5

Allowable gross weight on a vehicle with five axles (kilograms) inter-vehicle-unit distance, 2.7 metres to less than 3.0 metres (or intra-vehicle-unit distance)

Vehicle weight table 6

Allowable gross weight on a vehicle with five axles (kilograms) inter-vehicle-unit distance, 3.0 metres to less than 3.3 metres (or intra-vehicle-unit distance)

Vehicle weight table 7

Allowable gross weight on a vehicle with five axles (kilograms) inter-vehicle-unit distance, 3.3 metres to less than 3.6 metres (or intra-vehicle-unit distance)

Vehicle weight table 8

Allowable gross weight on a vehicle with five axles (kilograms) inter-vehicle-unit distance, 3.6 metres or more (or intra-vehicle-unit distance)

Vehicle weight table 9

Allowable gross weight on a vehicle with six axles (kilograms) inter-vehicle-unit distance, less than 2.1 metres (or intra-vehicle-unit distance)

Vehicle weight table 10

Allowable gross weight on a vehicle with six axles (kilograms) inter-vehicle-unit distance, 2.1 metres to less than 2.4 metres (or intra-vehicle-unit distance)

Vehicle weight table 11

Allowable gross weight on a vehicle with six axles (kilograms) inter-vehicle-unit distance, 2.4 metres to less than 2.7 metres (or intra-vehicle-unit distance)

Vehicle weight table 12

Allowable gross weight on a vehicle with six axles (kilograms) inter-vehicle-unit distance, 2.7 metres to less than 3.0 metres (or intra-vehicle-unit distance)

Vehicle weight table 13

Allowable gross weight on a vehicle with six axles (kilograms) inter-vehicle-unit distance, 3.0 metres to less than 3.3 metres (or intra-vehicle-unit distance)

Vehicle weight table 14

Allowable gross weight on a vehicle with six axles (kilograms) inter-vehicle-unit distance, 3.3 metres to less than 3.6 metres (or intra-vehicle-unit distance)

Vehicle weight table 15

Allowable gross weight on a vehicle with six axles (kilograms) inter-vehicle-unit distance, 3.6 metres or more (or intra-vehicle-unit distance)

Vehicle weight table 16

Allowable gross weight on a vehicle with seven axles (kilograms) inter-vehicle-unit distance, less than 2.1 metres

Vehicle weight table 17

Allowable gross weight on a vehicle with seven axles (kilograms) inter-vehicle-unit distance, 2.1 metres to less than 2.4 metres

Vehicle weight table 18

Allowable gross weight on a vehicle with seven axles (kilograms) inter-vehicle-unit distance, 2.4 metres to less than 2.7 metres

Vehicle weight table 19

Allowable gross weight on a vehicle with seven axles (kilograms) inter-vehicle-unit distance, 2.7 metres to less than 3.0 metres

Vehicle weight table 20

Allowable gross weight on a vehicle with seven axles (kilograms) inter-vehicle-unit distance, 3.0 metres to less than 3.3 metres

Vehicle weight table 21

Allowable gross weight on a vehicle with seven axles (kilograms) inter-vehicle-unit distance, 3.3 metres to less than 3.6 metres

Vehicle weight table 22

Allowable gross weight on a vehicle with seven axles (kilograms) inter-vehicle-unit distance, 3.6 metres or more

Vehicle weight table 23

Allowable gross weight on a vehicle with eight or more axles (kilograms) inter-vehicle-unit distance, less than 2.1 metres

Vehicle weight table 24

Allowable gross weight on a vehicle with eight or more axles (kilograms) inter-vehicle-unit distance, 2.1 metres to less than 2.4 metres

Vehicle weight table 25

Allowable gross weight on a vehicle with eight or more axles (kilograms) inter-vehicle-unit distance, 2.4 metres to less than 2.7 metres

Vehicle weight table 26

Allowable gross weight on a vehicle with eight or more axles (kilograms) inter-vehicle-unit distance, 2.7 metres to less than 3.0 metres

Vehicle weight table 27

Allowable gross weight on a vehicle with eight or more axles (kilograms) inter-vehicle-unit distance, 3.0 metres to less than 3.3 metres

Vehicle weight table 28

Allowable gross weight on a vehicle with eight or more axles (kilograms) inter-vehicle-unit distance, 3.3 metres to less than 3.6 metres

Vehicle weight table 29

Allowable gross weight on a vehicle with eight or more axles (kilograms) inter-vehicle-unit distance, 3.6 metres or more

Vehicle weight table 30

Allowable gross weight on designated truck-trailer combinations (kilograms)

Vehicle weight table 31

Allowable gross weight on designated truck-trailer combinations (kilograms)

Vehicle weight table 32

Allowable gross weight on non-designated vehicles and combinations (other than b-train combinations) that are governed by section 21 (kilograms)

Vehicle weight table 33

Allowable gross weight on non-designated b-train combinations that are governed by section 21 (kilograms)



Application and Interpretation

Application

1. (1) Subject to any by-law made under subsection 109 (12) of the Act, this Regulation sets out dimensional limits for the purposes of section 109 of the Act.  O. Reg. 457/10, s. 1.

(2) This Regulation sets out weight limits for the purposes of sections 115 to 118 of the Act.  O. Reg. 457/10, s. 1.

Definitions

2. (1) The definitions in sections 108 and 114 of the Act apply to this Regulation.  O. Reg. 413/05, s. 2 (1).

(2) In this Regulation,

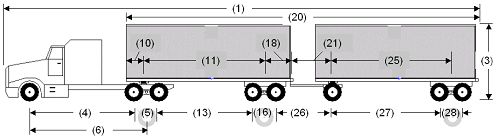

“A-train double” means a vehicle combination composed of a tractor, a semi-trailer and,

(a) a trailer converter dolly that is towed from a single hitch, as shown in Figure 1, on the centre line of the semi-trailer and another semi-trailer, or

(b) a full trailer attached to the semi-trailer as if a trailer converter dolly were used and towed from a single hitch, as shown in Figure 1, on the centre line of the semi-trailer;

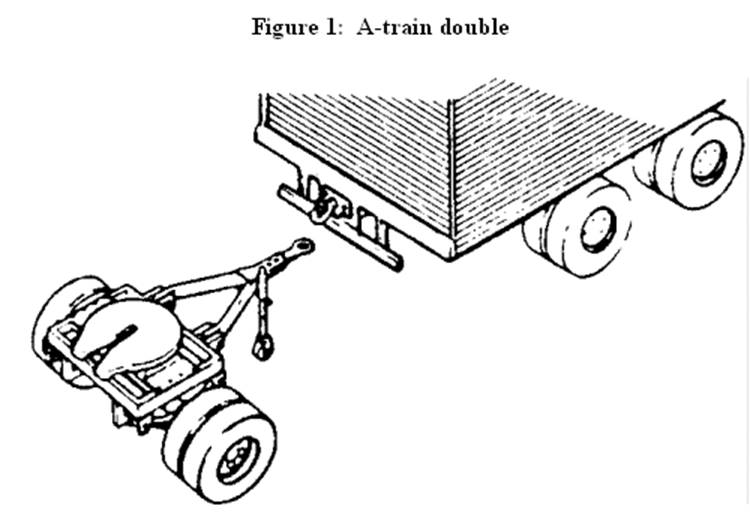

Illustration of Figure 1 – Trailer converter dolly to the rear of a semi-trailer, both with a single hitch on centreline.

“aggregate vehicle” means a vehicle or vehicle combination that is designed for dumping or spreading sand, gravel, crushed or uncut rock, asphalt, slag or rubble or any mixture of such materials and that is transporting a load consisting mostly of any of these materials;

“axle spread” means the longitudinal distance between the centres of the foremost and rearmost axles of an axle unit;

“B-train double” means a vehicle combination composed of a tractor and two semi-trailers, the rearmost of which is attached by a fifth wheel assembly whose lower half is mounted on the rear of the foremost semi-trailer, as shown in Figure 2;

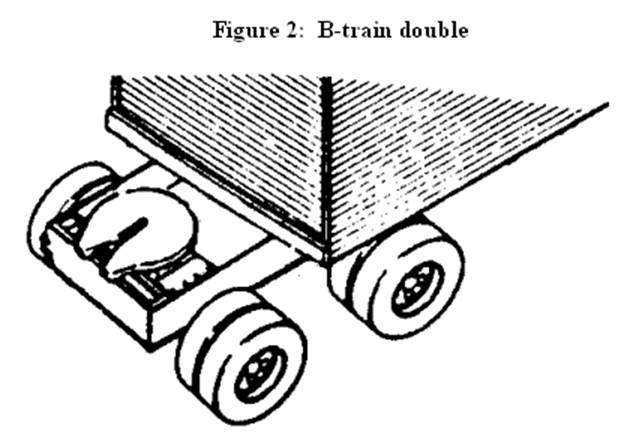

Illustration of Figure 2 - Fifth wheel assembly mounted on the rear of semi-trailer

“base length” means the distance measured between the centres of the first axle of the front axle of a vehicle or vehicle combination and the last axle of a vehicle or vehicle combination;

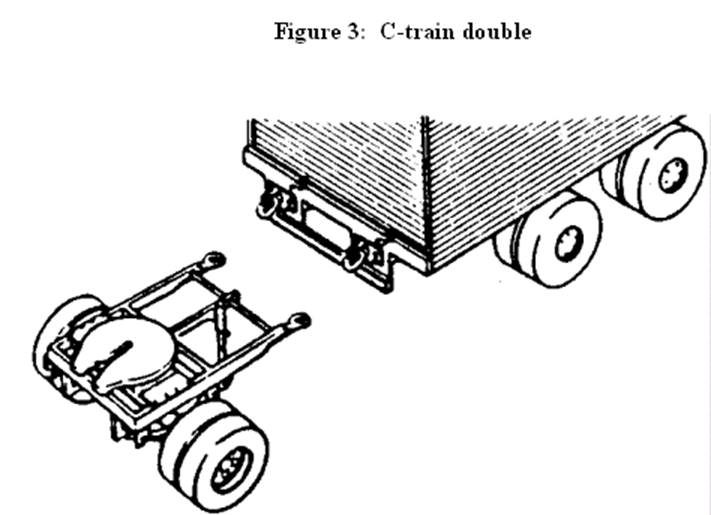

“C-train double” means a vehicle combination consisting of a tractor and two semi-trailers, the second of which is attached to the first by a trailer converter dolly that has a frame rigid in the horizontal plane and that is towed from two hitches located in a horizontal transverse line on the foremost semi-trailer that preclude any rotation in the horizontal plane about the hitch point, as shown in Figure 3;

Illustration of Figure 3 – Trailer converter dolly to the rear of a semi-trailer, both with two hitches

“carbon dioxide tank semi-trailer” means a tank semi-trailer that is used regularly to transport carbon dioxide, was manufactured to Transport Canada specification TC331 or United States Department of Transportation specification MC331 and bears the appropriate specification number on the compliance label or manufacturer’s identification plate affixed to the vehicle;

“combination” and “vehicle combination” mean a combination of vehicles;

“cryogenic tank semi-trailer” means a tank semi-trailer that was manufactured to United States Compressed Gas Association specification CGA341 or Transport Canada specification TC341 and bears the appropriate specification number on the compliance label or manufacturer’s identification plate affixed to the vehicle;

“designated bus or recreational vehicle”, when followed by a number, means the designated bus or recreational vehicle identified by the same number in the Table to section 3.1;

“designated tractor-trailer combination”, when followed by a number, means the designated tractor-trailer combination identified by the same number in the Table to section 3;

“designated truck”, when followed by a number, means the designated truck identified by the same number in the Table to section 3.2;

“designated truck-trailer combination”, when followed by a number, means the designated truck -trailer combination identified by the same number in the Table to section 3.3;

“drawbar” means a towing structure that is connected to a trailer or a trailer converter dolly and that includes an eye or equivalent device for coupling to a trailer hitch;

“drive axle” means an axle unit that is connected to the power source of a motor vehicle and that transmits tractive power to the wheels;

“end dump semi-trailer” means a semi-trailer to which is permanently attached a body or box that is hinged and that can be raised to dump from the rear of the semi-trailer;

“fifth wheel assembly” means a plate-type coupling device comprised of a kingpin, locking jaws and plates, the lower half of which is mounted on the rear portion of a vehicle frame or the frame of a trailer converter dolly and the upper half of which is fastened to the underside of the forward portion of a semi-trailer for the purpose of supporting and towing the semi-trailer;

“forced-steer auxiliary pusher axle” means an axle that articulates in response to forces generated through mechanisms and linkages operated by the driver, but does not include the front axle of a vehicle or vehicle combination;

“full trailer” means a trailer designed so that the whole of its own weight and of any load are carried on its own axles and includes a vehicle combination consisting of a semi-trailer and a trailer converter dolly;

“inter-axle spacing” means the longitudinal distance separating two consecutive axle units within a vehicle or vehicle combination, measured from the centre of the rearmost axle of the foremost axle unit to the centre of the foremost axle of the other axle unit;

“inter-vehicle-unit distance”, for a vehicle combination, means,

(a) the distance between the centres of the last axle of the motor vehicle or road building machine and the first axle of the towed vehicle, and

(b) the distance between the centres of the last axle of the first towed vehicle and the first axle of the second towed vehicle,

but in subsection 38 (2), Schedules 11, 12 and 13 and Vehicle Weight Tables 3 to 29, it means the lesser of clauses (a) and (b);

“long combination” means a tractor-trailer combination to which one or more of the following applies:

1. The total length, including load, exceeds the 23 metre limit specified in subsection 109 (7) of the Act.

2. The box length of a combination including more than one trailer exceeds the 18.5 metre limit specified in subsection 109 (8) of the Act.

3. The semi-trailer length, excluding any portion of auxiliary equipment or machinery that extends beyond the front or rear of the semi-trailer and that is not designed or used for the transportation of goods, exceeds the 14.65 metre limit specified in subsection 109 (10) of the Act;

“non-designated”, with reference to a truck, bus, recreational vehicle or vehicle combination means a truck, bus, recreational vehicle or vehicle combination that is not, respectively, a designated truck, a designated bus or recreational vehicle, a designated tractor-trailer combination, a designated truck-trailer combination or a designated saddlemount combination;

“open-top hopper dump semi-trailer” means a semi-trailer to which is permanently attached an open-top body or box with bottom hoppers that can be opened to dump from the bottom of the semi-trailer;

“pony trailer” means a trailer that is designed and used so that the preponderance of the trailer’s weight and load is carried on its own axles and that is equipped with a drawbar rigidly attached to the trailer;

“quadruple axle” means a four axle group in which the axles,

(a) have their consecutive centres equally spaced,

(b) have their consecutive centres more than one metre apart,

(c) do not include a liftable axle or a self-steering axle,

(d) have the same number of tires at each wheel position, and

(e) are articulated from an attachment to the vehicle common to the consecutive axles or are designed to automatically equalize the load between the four axles under all conditions of loading;

“self-steering axle” means an assembly of two or more wheels whose centres are in one transverse vertical plane and whose wheels can articulate in response to forces generated between the tires and the road or through mechanisms and linkages that operate independently of the driver;

“single semi-trailer” means a semi-trailer that is the only trailer in a tractor-trailer combination;

“tag-axle tank semi-trailer” means a tank semi-trailer,

(a) that is not more than 14.65 metres in length,

(b) that is equipped with a rear single axle and a front tandem axle, whose inter-axle spacing is more than 2.5 metres,

(c) whose single axle,

(i) is a self-steering axle capable of turning 20 degrees in either direction, and

(ii) is not a liftable axle, and

(d) whose axles automatically equalize its load such that the weight on the self-steering axle is not more than 500 kilograms greater or less than the average weight per axle of the tandem axle;

“tandem axle” means a dual axle as defined in section 114 of the Act that does not include a liftable axle or a self-steering axle and that has the same number of tires at each wheel position;

“tank full trailer” means a full trailer that is permanently attached to a closed tank having a capacity of 2.3 kilolitres or more;

“tank pony trailer” means a pony trailer that is permanently attached to a closed tank having a capacity of 2.3 kilolitres or more;

“tank semi-trailer” means a semi-trailer that is permanently attached to a closed tank having a capacity of 2.3 kilolitres or more;

“tractor” means a commercial motor vehicle designed to draw one or more semi-trailers, or a semi-trailer and a full trailer, to which it is coupled by means of a fifth wheel assembly;

“tridem axle” means a triple axle as defined in section 114 of the Act that does not include a liftable axle or a self-steering axle and that has the same number of tires at each wheel position;

“tri-drive axle” means a drive axle composed of a tridem axle in which each axle of the tridem axle transmits tractive power to its wheels;

“truck” does not include a tractor or a bus;

“turn centre” means the geometric centre,

(a) on a semi-trailer consisting only of one axle unit, of the axle unit,

(b) on a semi-trailer consisting of more than one axle unit, of the axle unit containing more axles,

(c) on a semi-trailer containing a quadruple axle, of the quadruple axle,

(d) on a tractor, full trailer or pony trailer, of the rear axle unit,

(e) on a truck, bus or recreational vehicle, of the drive axle unit.

“wheelbase” means the longitudinal distance,

(a) from the centre of the kingpin to the turn centre, in the case of a semi-trailer or in the case of a full trailer without a turntable in designated truck-trailer combination 3,

(b) from the centre of articulation of the turntable to the turn centre, in the case of a full trailer with a turntable in designated truck-trailer combination 3,

(c) from the centre of the kingpin to the geometric centre of the tridem axle, in the case of the front portion of a hinged semi-trailer, and from the articulation point of the forward hinge to the geometric centre of the tandem axle, in the case of the rear portion of a hinged semi-trailer,

(d) from the centre of the front axle to the turn centre, in the case of a tractor, truck, bus or recreational vehicle,

(e) from the centre of the hitching device to the turn centre, in the case of a pony trailer or of a full trailer, other than a full trailer in designated truck-trailer combination 3.  O. Reg. 413/05, s. 2 (2); O. Reg. 457/10, s. 2 (1-13); O. Reg. 167/12, s. 1; O. Reg. 16/14, s. 1; O. Reg. 8/16, s. 1.

(3) For the purposes of this Regulation, where a tire width has been marked on the tire by the manufacturer, the width of the tire shall be deemed to be as marked.  O. Reg. 413/05, s. 2 (3).

(4) For the purposes of this Regulation, the month and year when a vehicle was manufactured or built is the earliest month and year on any incomplete vehicle manufacturer’s information label or manufacturer’s compliance label on the vehicle.  O. Reg. 457/10, s. 2 (14).

Designated Vehicles and Combinations

Designated tractor-trailer combinations

3. The Table to this section sets out 15 tractor-trailer combinations that are designated tractor-trailer combinations if the vehicle combination meets the configuration description in the correspondingly numbered Schedule and complies with the dimensional limits of the Schedule and with all the relevant preconditions for the designated combination in the Schedule and in sections 5 to 14.  O. Reg. 457/10, s. 3.

TABLE OF DESIGNATED TRACTOR-TRAILER COMBINATIONS



Schedule

Designated Tractor-Trailer Combination

Type of Tractor-Trailer Combination

1

1

Tractor Fixed Axle Semi-trailer

2

2

Tractor Self-steer Triaxle Semi-trailer

3

3

Tractor Self-steer Quad Semi-trailer

4

4

Tractor Self-steer 5-Axle Semi-trailer (1-3-1)

5

5

Tractor Self-steer 5-Axle Semi-trailer (1-1-3)

6

6

Tractor Self-steer 6-Axle Semi-trailer (1-4-1)

7

7

Tractor Self-steer 6-Axle Semi-trailer (1-1-4)

8

8

Tri-drive Tractor Fixed Axle Semi-trailer

9

9

Tri-drive Tractor Self-steer Triaxle Semi-trailer

10

10

Tri-drive Tractor Self-steer Quad Semi-trailer

11

11

Tractor A-train Double Trailers

12

12

Tractor B-train Double Trailers

13

13

Tractor C-train Double Trailers

14

14

Stinger-Steer Tractor Semi-trailer Auto Carrier

15

15

Tractor Hinged Semi-trailer

O. Reg. 457/10, s. 3.

Designated buses and recreational vehicles

3.1 The Table to this section sets out three buses and two recreational vehicles that are designated buses or recreational vehicles if the vehicle meets the configuration description in the correspondingly numbered Schedule and complies with the dimensional limits of the Schedule and with all the relevant preconditions for the designated vehicle in the Schedule and in section 8.  O. Reg. 457/10, s. 3.

TABLE OF DESIGNATED BUSES OR RECREATIONAL VEHICLES



Schedule

Designated Bus or Recreational Vehicle

Type of Bus or Recreational Vehicle

16

1

Standard Bus or Comparable Recreational Vehicle

17

2

Inter-city Bus or Comparable Recreational Vehicle

18

3

Articulated Bus

O. Reg. 457/10, s. 3.

Designated trucks

3.2 The Table to this section sets out seven trucks that are designated trucks if the vehicle meets the configuration description in the correspondingly numbered Schedule and complies with the dimensional limits of the Schedule and with all the relevant preconditions for the designated vehicle in the Schedule and in sections 5 to 14.  O. Reg. 457/10, s. 3.

TABLE OF DESIGNATED trucks



Schedule

Designated Truck

Type of Truck

19

1

2-Axle Truck

20

2

Tandem-axle Truck

21

3

3-Axle Truck with Auxiliary Axle

22

4

Twin-steer Tandem-drive Truck

23

5

Self-steer Triaxle Truck

24

6

Tri-drive 4-Axle Truck

25

7

Twin-steer Tri-drive 5-Axle Truck

O. Reg. 457/10, s. 3.

Designated truck-trailer combinations

3.3 The Table to this section sets out five truck-trailer combinations that are designated truck-trailer combinations if the vehicle combination meets the configuration description in the correspondingly numbered Schedule and complies with the dimensional limits of the Schedule and with all the relevant preconditions for the designated vehicle in the Schedule and in sections 5 to 14.  O. Reg. 457/10, s. 3.

TABLE OF DESIGNATED TRUCK-TRAILER COMBINATIONS



Schedule

Designated Truck-Trailer Combination

Type of Truck-Trailer Combination

26

1

Truck and Fixed Axle Pony Trailer

27

2

Truck and Self-steer Triaxle Pony Trailer

28

3

Truck and Full Trailer

29

4

Truck and Self-steer Triaxle Full Trailer

30

5

Truck and Tridem-axle Full Trailer

O. Reg. 457/10, s. 3.

Designated saddlemount combination

3.4 A saddlemount combination is a designated saddlemount combination if it meets the configuration description in Schedule 31 and complies with the dimensional limits of the Schedule and with all of the relevant preconditions for the designated saddlemount combination in the Schedule.  O. Reg. 457/10, s. 3.

Weight limit chart not determinative of designated vehicle or combination

4. A vehicle or vehicle combination described in sections 3 to 3.4 is a designated vehicle or a designated combination even if it does not meet the limits in the weight limit chart of the corresponding Schedule.  O. Reg. 457/10, s. 4.

4.1 Revoked:  O. Reg. 457/10, s. 4.

Preconditions for Designated Vehicles or Designated Combinations

Liftable axles and controls

5. (1) A designated vehicle or designated vehicle combination may have axles in addition to those specified in the corresponding Schedule, but the additional axles must remain in the raised position.  O. Reg. 457/10, s. 5 (2).

(2) A designated truck or a tractor in a designated combination may not be equipped with or have controls, whether remote or manual, that would allow the driver from the cab of the truck or tractor to lift, deploy or alter the weight on a self-steering axle of the truck or of any drawn trailer unless,

(a) the truck, truck-trailer combination or tractor-trailer combination is designed to carry raw forest products; or

(b) the controls,

(i) do not activate unless the emergency 4-way flashers are activated,

(ii) contain a device that prevents lifting the axle or altering the axle weight when the truck or vehicle combination is travelling at a speed over 60 kilometres per hour, and

(iii) in the case of a tractor-trailer combination, operate only on the most forward self-steering axle of the semi-trailer.  O. Reg. 457/10, s. 5 (2).

(3) The tractor in a designated tractor-trailer combination 12 may not be equipped with or have controls, whether remote or manual, that would allow the driver to lift, deploy or alter the weight on the tandem or tridem axles in the combination, unless the controls,

(a) operate only on the forward axle of the lead trailer’s tridem axle;

(b) do not activate unless the emergency 4-way flashers are activated; and

(c) contain a device that prevents lifting the axle or altering the axle weight when the combination is travelling at a speed over 60 kilometres per hour.  O. Reg. 457/10, s. 5 (2).

(3.1) A designated truck may be equipped with,

(a) manual controls mounted outside the cab of the truck to lift or deploy its self-steering axle or forced-steer auxiliary pusher axle;

(b) manual controls mounted outside the cab of the truck to alter the weight on its self-steering axle or forced-steer auxiliary pusher axle, but only for use outside of Ontario;

(c) automatic controls that lift its self-steering axle when reversing and deploy it again when moving forward; and

(d) automatic controls that lift or deploy its self-steering axle or forced-steer auxiliary pusher axle, depending on whether the truck is heavily or lightly loaded.  O. Reg. 457/10, s. 5 (2).

(3.2) A trailer in a designated combination may be equipped with,

(a) manual controls to lift or deploy its self-steering axles;

(b) manual controls to alter the weight on its self-steering axles, but only for use outside Ontario;

(c) automatic controls that lift its self-steering axles when reversing and deploy them again when moving forward; and

(d) automatic controls that lift or deploy its self-steering axles, depending on whether the trailer is heavily or lightly loaded.  O. Reg. 457/10, s. 5 (2).

(4) In subsection (3) and in Schedule 12,

“tridem axle” means a triple axle as defined in section 114 of the Act that does not include a self-steering axle and that has the same number of tires at each wheel position, and includes an axle unit that is equipped with a device for altering the weight transmitted to the highway surface.  O. Reg. 413/05, s. 5 (4).

Rear impact guards

6. (1) The rearmost trailer of any designated tractor-trailer combination that is a long combination must be equipped with a rear impact guard meeting the requirements of subsection (2) if,

(a) the trailer was manufactured after July 14, 1993 and before January 27, 1998;

(b) the trailer has an axle unit that can slide or is fixed so that the rear of the rearmost tire is more than 0.3 metres in front of the rear of the trailer; and

(c) the trailer’s rear structure is more than 0.56 metres above the ground when the trailer is unladen on a level surface.  O. Reg. 413/05, s. 6 (1); O. Reg. 457/10, s. 6 (1).

(2) A rear impact guard must consist of a single horizontal beam that is rigidly attached to the trailer and that,

(a) extends within 0.1 metres of each side of the trailer;

(b) is not more than 0.3 metres in front of the rear of the trailer and is as close to the rear as possible; and

(c) is not more than 0.56 metres above the ground when the trailer is unladen on a level surface.  O. Reg. 413/05, s. 6 (2); O. Reg. 457/10, s. 6 (2).

(3) The rearmost trailer in a combination described in subsection (5) must be equipped with a rear impact guard that meets one of the following standards, as that standard read on the date of the trailer’s manufacture:

1. United States Federal Motor Vehicle Safety Standard 224.

2. Standard 223 under the Motor Vehicle Safety Act (Canada).  O. Reg. 457/10, s. 6 (3).

(4) Subsection (3) does not apply if one of the standards described in that subsection exempts the rearmost trailer in a combination described in subsection (5) from having a rear impact guard.  O. Reg. 457/10, s. 6 (3).

(5) Subsection (3) applies to,

(a) any designated tractor-trailer combination that is a long combination whose rearmost trailer was manufactured after January 26, 1998;

(b) designated tractor-trailer combination 2, 3, 4, 5, 6, 7, 9 or 10;

(c) any designated tractor-trailer combination that includes a trailer that was manufactured after 2005; or

(d) any designated truck-trailer combination that includes a trailer that was manufactured after August 31, 2007.  O. Reg. 457/10, s. 6 (3).

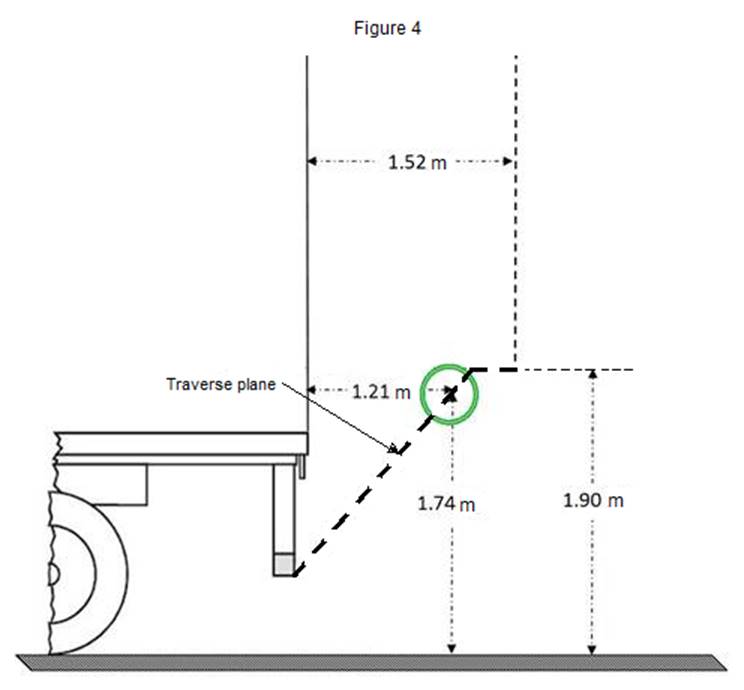

figure 4 Revoked:  O. Reg. 457/10, s. 6 (4).

Brakes

7. (1), (2) Revoked:  O. Reg. 457/10, s. 7 (1).

(3) The following brake requirements apply to designated tractor-trailer combinations 4, 5, 6, 7 and 15:

1. The semi-trailer service brake system must be constructed so that a single leakage failure in any component of the system, except the tubing or fittings in the control line, does not render the brakes on more than three axles inoperative.

2. The semi-trailer must be equipped with a low air pressure warning system constructed so that, in the event the air pressure in any one of the service brake reservoirs falls below 483 kPa or 70 psi, a red LED warning lamp will illuminate.  The lamp must be side-facing, located on the outside of the semi-trailer near the front side marker lamp, within the field of view of the tractor’s rear view mirror, and must include a bulb check feature.

3. The semi-trailer supply and control gladhands must be equipped with screens that will prevent any particle larger than 0.33 millimetres or 0.013 inches from entering the gladhand beyond a point where it remains visible from the opening.  A label indicating that the vehicle is equipped with gladhand screens and stating that the gladhand screens must be inspected regularly and kept clean to prevent brake system malfunction must be placed adjacent to the gladhands.

4. The semi-trailer must be equipped with an antilock brake system that directly or indirectly controls each wheel of the semi-trailer.

5. The semi-trailer must display a clearly visible label with the name and telephone number of the semi-trailer manufacturer and the appropriate brake system circuit diagram number.  O. Reg. 413/05, s. 7 (3); O. Reg. 457/10, s. 7 (2).

Tires

8. The tires of a designated vehicle or vehicle combination must be at least 150 millimetres wide.  O. Reg. 413/05, s. 8; O. Reg. 457/10, s. 8.

Wheel cut

9. (1) Every designated vehicle with a self-steering axle and every designated vehicle combination with a self-steering axle, other than a self-steering tag axle in designated bus or recreational vehicle 1 or 2, must comply with the wheel cut requirements of the Table to this section.  O. Reg. 457/10, s. 9.

(2) In this section,

“wheel cut” means the number of degrees the wheels of a self-steering axle are capable of turning in either direction from the straight ahead position.  O. Reg. 413/05, s. 9 (2).

Table
Minimum Required Self-steering axle Wheel Cut



Distance from Turn Centre to Self-steering Axle

Minimum Degrees of Wheel Cut

4.65 metres or less

20°

More than 4.65 metres and less than or equal to 5.85 metres

25°

More than 5.85 metres and less than or equal to 7.10 metres

28°

More than 7.10 metres

30°

O. Reg. 413/05, s. 9, Table.

Self-steering axle locking device

10. (1) In designated tractor-trailer combinations 2 and 9, if the axle spread of the tandem axle of the semi-trailer exceeds 1.85 metres, the designated combination must be equipped with an automatic device that locks the self-steering axle in the straight ahead position when the combination is travelling at a speed over 60 kilometres per hour.  O. Reg. 413/05, s. 10 (1); O. Reg. 457/10, s. 10 (1).

(2) Designated tractor-trailer combinations 4 and 6 must be equipped with an automatic device that locks the rearmost self-steering axle in the straight ahead position when the combination is travelling at a speed over 60 kilometres per hour.  O. Reg. 413/05, s. 10 (2); O. Reg. 457/10, s. 10 (2).

Tri-drive locking device

11. Any differential locks on a tri-drive axle of any designated vehicle or vehicle combination must remain unlocked while the vehicle or combination is operated on a highway.  O. Reg. 457/10, s. 11.

C-train equipment

12. (1) The foremost semi-trailer of a designated tractor-trailer combination 13 must be equipped with a hitch that meets the requirements of section 904 of the Motor Vehicle Safety Regulations made under the Motor Vehicle Safety Act (Canada).  O. Reg. 413/05, s. 12 (1); O. Reg. 457/10, s. 12 (1).

(2) Revoked:  O. Reg. 457/10, s. 12 (2).

(3) The trailer converter dolly of a designated tractor-trailer combination 13 must meet the requirements of section 903 of the Motor Vehicle Safety Regulations made under the Motor Vehicle Safety Act (Canada).  O. Reg. 413/05, s. 12 (3); O. Reg. 457/10, s. 12 (1).

Labelling

13. (1) The semi-trailer in designated tractor-trailer combinations 2, 3, 4, 5, 6, 7, 9, 10 and 15, the trailer in designated truck-trailer combinations 2 and 4 and designated trucks 3 and 5 must bear their original compliance labels and comply with subsections (2) and (3).  O. Reg. 457/10, s. 13.

(2) The original compliance label or the manufacturer’s identification plate on the truck or trailer must,

(a) contain the notation “SPIF”, signifying that the truck or trailer is safe, productive and infrastructure-friendly and was manufactured to meet the specifications of this Regulation;

(b) identify the company authorized under the Motor Vehicle Safety Act (Canada) to apply a national safety mark, the foreign manufacturer registered under that Act or the authorized dealer of either of them, that manufactured the truck or trailer; and

(c) indicate the gross vehicle and axle weight ratings.  O. Reg. 457/10, s. 13.

(3) If a truck or trailer was not manufactured to meet the specifications of this Regulation, but was converted to meet such specifications, it must bear a label adjacent to the original compliance label,

(a) containing the notation “SPIF”, signifying that the truck or trailer is safe, productive and infrastructure-friendly and was converted to meet the specifications of this Regulation;

(b) identifying the company authorized under the Motor Vehicle Safety Act (Canada) to apply a national safety mark, the foreign manufacturer registered under that Act or the authorized dealer of either of them, that converted the truck or trailer; and

(c) indicating the revised gross vehicle and axle weight ratings.  O. Reg. 457/10, s. 13.

(4) If a semi-trailer was manufactured or converted before 2006, the label required by subsection (2) or (3) may bear the notation “Reg 597 (Ont) – 3” or “Reg 597 (Ont) – 4” instead of the notation “SPIF”.  O. Reg. 457/10, s. 13.

Weight requirements

14. (1) The following designated vehicles and vehicles within designated combinations must be designed to load equalize within the meaning of subsection (2):

1. Designated trucks 3 and 5.

2. The semi-trailer in designated tractor-trailer combinations 2 to 7, 9, 10 and 15.

3. The pony trailer in designated truck-trailer combination 2.  O. Reg. 457/10, s. 14 (1).

(2) A vehicle load equalizes if,

(a) in the case of designated truck 3, the weight of the auxiliary self-steering axle or forced-steer auxiliary pusher axle is not more than 500 kilograms greater or less than 33 per cent of the weight on the tandem axle;

(b) in the case of designated truck 5, the weight of the self-steering axle is not more than 500 kilograms greater or less than the average weight per axle of the tandem axle;

(c) in the case of the semi-trailer in designated tractor-trailer combinations 2 to 7, 9 and 10, the weight of each self-steering axle is not more than 500 kilograms greater or less than the average weight per axle of the tandem, tridem or quadruple axle;

(d) in the case of the semi-trailer in designated tractor-trailer combination 15, the weight of the tandem axle is not more than 500 kilograms greater or less than 67 per cent of the weight of the tridem axle; and

(e) in the case of the pony trailer in designated truck-trailer combination 2, the weight of the self-steering axle is not more than 500 kilograms greater or less than the average weight per axle of the tandem axle.  O. Reg. 457/10, s. 14 (1).

(3), (4) Revoked:  O. Reg. 457/10, s. 14 (1).

(5) A semi-trailer forming part of designated tractor-trailer combinations 3, 4, 5, 6, 7, 10 and 15 must be equipped with,

(a) a device that accurately displays the total weight on the trailer axles in kilograms; or

(b) a device and a table or chart, from the combined use of which the total weight on the trailer axles in kilograms may be readily and accurately obtained.  O. Reg. 413/05, s. 14 (5); O. Reg. 457/10, s. 14 (2).

(6)-(8) Revoked:  O. Reg. 457/10, s. 14 (3).

Rules Applicable to Designated Vehicles and Designated Combinations

Dimensional limits for long combinations

15. (1) A designated tractor-trailer combination that is a long combination shall comply with the dimensional limits in the corresponding Schedule and not with the dimensional limits specified in section 109 of the Act, if the dimensional limits in the Schedule are greater than those in section 109 of the Act.  O. Reg. 457/10, s. 15 (2).

(2) A long combination that is a designated tractor-trailer combination 4, 6 or 7 in every respect except that both self-steering axles are raised shall comply with the dimensional limits in the corresponding Schedule and not with the dimensional limits specified in section 109 of the Act, if the dimensional limits in the Schedule are greater than those in section 109 of the Act and if the gross vehicle weight of the long combination does not exceed the amount permitted in Vehicle Weight Table 32.  O. Reg. 457/10, s. 15 (2).

(3) A designated truck-trailer combination 3, a designated bus or recreational vehicle 2 or 3 and a designated saddlemount combinaton shall comply with the dimensional limits in the corresponding Schedule and not with the dimensional limits specified in section 109 of the Act, if the dimensional limits in the Schedule are greater than those in section 109 of the Act.  O. Reg. 457/10, s. 15 (2).

16. Revoked:  O. Reg. 457/10, s. 16.

Axle unit weight limits

17. The axle unit weight for a designated vehicle or combination is that specified in the corresponding Schedule instead of the axle unit weight specified or referred to in subsection 116 (1) of the Act.  O. Reg. 413/05, s. 17; O. Reg. 457/10, s. 17.

18. Revoked:  O. Reg. 457/10, s. 18.

Axle group weight limits

19. The axle group weight for a quadruple axle in a designated tractor-trailer combination 6 or 7 is that specified in the corresponding Schedule instead of the axle group weight for a four axle group referred to in clause 117 (1) (c) of the Act.  O. Reg. 413/05, s. 19; O. Reg. 457/10, s. 19.

Maximum allowable gross vehicle weight — designated vehicles and combinations

20. (1) Clauses 118 (1) (a) and (b) of the Act do not apply to designated vehicles and combinations.  O. Reg. 457/10, s. 20.

(2) For the purpose of clause 118 (1) (c) of the Act,

(a) the maximum allowable gross vehicle weight of a designated vehicle or vehicle combination is the amount prescribed by the weight limit chart of the appropriate Schedule; and

(b) where the weight limit chart of the appropriate Schedule refers to a Vehicle Weight Table, the appropriate Vehicle Weight Table, determined in accordance with section 38, applies.  O. Reg. 457/10, s. 20.

Rules Applicable to Non-Designated Vehicles and Combinations

Maximum allowable gross vehicle weight — non-designated vehicles and combinations

21. (1) Clauses 118 (1) (a) and (b) of the Act do not apply to non-designated vehicles and combinations, except as provided in section 22 of this Regulation.  O. Reg. 457/10, s. 21.

(2) For the purpose of clause 118 (1) (c) of the Act,

(a) the maximum allowable gross vehicle weight for non-designated vehicles and combinations, other than B-train combinations, is the amount prescribed in Vehicle Weight Table 32;

(b) the maximum allowable gross vehicle weight for non-designated B-train combinations is the amount prescribed in Vehicle Weight Table 33.  O. Reg. 457/10, s. 21.

Maximum allowable gross vehicle weight — transition for non-designated vehicles and combinations

22. (1) For the purpose of section 118 of the Act, the maximum allowable gross vehicle weight for a non-designated vehicle or vehicle combination described in subsection (2) and before the date specified in that subsection is the lowest of,

(a) the amount calculated under clause 118 (1) (a) of the Act;

(b) the amount calculated under clause 118 (1) (b) of the Act; and

(c) the maximum allowable gross vehicle weight under the appropriate Vehicle Weight Table from Vehicle Weight Tables 1 to 29, as determined in accordance with section 38.  O. Reg. 457/10, s. 21.

(2) Subsection (1) applies to the following non-designated vehicles and vehicle combinations before the specified date:

1. Before January 1, 2016, a tractor-trailer combination that includes a single semi-trailer, if the semi-trailer has four or more deployed axles, was manufactured before 2006 and is not an end dump semi-trailer or an open-top hopper dump semi-trailer.

2. Before January 1, 2016, a tractor-trailer combination with two trailers, if both trailers were manufactured before 2006.

3. Before January 1, 2021, a tractor-trailer combination that includes a single carbon dioxide tank semi-trailer, cryogenic tank semi-trailer or tag-axle tank semi-trailer, if the semi-trailer has three or fewer deployed axles.

4. Before January 1, 2021, a truck, bus or recreational vehicle, if the truck, bus or recreational vehicle was manufactured before July 1, 2011.

5. Before January 1, 2021, a truck-trailer combination if both the truck and trailer were manufactured before July 1, 2011.

6. Subject to subsection (4), before January 1, 2021, a truck-trailer combination if,

i. either the truck or the trailer, but not both, was manufactured before July 1, 2011, and

ii. the other vehicle is a designated truck or is a trailer that meets all of the requirements in order to be part of a designated truck-trailer combination.  O. Reg. 457/10, s. 21; O. Reg. 167/12, s. 2 (1).

(3) Before January 1, 2021, subsection (1) applies to a non-designated tractor-trailer combination that includes a single tank semi-trailer with three or fewer axles deployed, other than a carbon dioxide tank semi-trailer, cryogenic tank semi-trailer or tag-axle tank semi-trailer, except that the maximum allowable gross vehicle weight is determined by subtracting 3,000 kilograms from the weight determined under that subsection.  O. Reg. 457/10, s. 21.

(4) Before January 1, 2021, subsection (1) applies to a non-designated truck-trailer combination that is composed of a twin-steer tandem axle truck and trailer and that meets the requirements in subparagraphs 6 i and ii of subsection (2), except that the maximum allowable gross vehicle weight is determined by subtracting the following amount from the weight determined under subsection (1):

1. If the trailer is a triaxle pony trailer or a triaxle full trailer, 2,500 kilograms.

2. If the trailer is a pony trailer with a wheelbase of 8.75 metres or more or a full trailer with a wheelbase of 7.25 metres or more and the trailer is not a triaxle trailer,

i. 5,500 kilograms, if its base length is less than 18.25 metres,

ii. 4,500 kilograms, if its base length is 18.25 metres or more but less than 18.75 metres,

iii. 3,500 kilograms, if its base length is 18.75 metres or more but less than 19.25 metres, or

iv. 2,500 kilograms, if its base length is 19.25 metres or more.

3. If the trailer is a pony trailer with a wheelbase of less than 8.75 metres or a full trailer with a wheelbase of less than 7.25 metres and the trailer is not a triaxle trailer,

i. 5,500 kilograms, if it has one axle,

ii. 8,500 kilograms, if it has two axles, or

iii. 9,500 kilograms, if it has three or more axles.  O. Reg. 167/12, s. 2 (2).

(5) In subsection (4),

“triaxle” with reference to a trailer, means a trailer with a single self-steer axle in the front and a tandem axle in the rear;

“twin-steer tandem axle truck” means a 4-axle truck with a front tandem axle and a rear tandem drive axle.  O. Reg. 167/12, s. 2 (2).

23., 24. Revoked:  O. Reg. 457/10, s. 21.

Aggregate vehicles

25. (1) This section applies to aggregate vehicles, but does not apply to designated vehicles and combinations or to non-designated vehicles and combinations to which section 21 applies.  O. Reg. 457/10, s. 22 (2).

(2) Clauses 118 (1) (a) and (b) of the Act do not apply to aggregate vehicles.  O. Reg. 457/10, s. 22 (2).

(3) The maximum allowable gross vehicle weight of an aggregate vehicle shall be determined by subtracting, in the case of a two-axle aggregate vehicle, 1,000 kilograms or, in the case of an aggregate vehicle of three or more axles, 1,500 kilograms from,

(a) the maximum weight permitted on the front axle under section 116 of the Act plus the sum of the maximum allowable weights for all other axle units of the vehicle or vehicle combination as set out in section 116 of the Act;

(b) the maximum weight permitted on the front axle under section 116 of the Act plus the sum of the maximum allowable weights for any two axle groups, three axle groups or four axle groups, or any combination of them, as set out in section 117 of the Act, plus the maximum allowable weight for any axle unit or units excluding any axle unit or units that are part of an axle group, as set out in section 116 of the Act; or

(c) the maximum allowable gross vehicle weight prescribed by clause 22 (1) (c) of this Regulation.  O. Reg. 413/05, s. 25 (3); O. Reg. 457/10, s. 22 (3, 4).

(4) Where the calculation of front axle weight for an aggregate vehicle powered by a tractor results in a weight over 6,500 kilograms, the front axle weight shall be deemed to be 6,500 kilograms.  O. Reg. 413/05, s. 25 (4).

(5) In this section and in Vehicle Weight Tables 1 to 29,

“front axle weight”, in respect of an aggregate vehicle, means,

(a) for a single front axle, the maximum weight permitted under section 116 of the Act for a single axle, and

(b) for a dual front axle, one-half the maximum weight permitted under section 116 of the Act for a dual axle.  O. Reg. 413/05, s. 25 (5); O. Reg. 457/10, s. 22 (5).

26.-33. Revoked:  O. Reg. 457/10, s. 23.

Permits

34. (1) Despite section 21, the Registrar may issue permits under clause 110.1 (1) (b) of the Act allowing the operation of the following non-designated vehicles and of the following vehicles that form part of a non-designated vehicle combination in compliance with the maximum allowable gross vehicle weights specified in subsection 22 (1) or section 25:

1. After December 31, 2010, an end-dump semi-trailer or open-top hopper dump semi-trailer that was manufactured before 2003 and is part of a tractor-trailer combination.

2. After December 31, 2015, a single semi-trailer, other than a dump semi-trailer, with four or more deployed axles that was manufactured before 2006 and is part of a tractor-trailer combination.

3. After December 31, 2015, a trailer that forms part of a tractor-trailer combination with two trailers, if both trailers were manufactured before 2006.

4. After December 31, 2020, a truck, bus or recreational vehicle that was manufactured before July 1, 2011.

5. After December 31, 2020, a trailer in a truck-trailer combination, if the trailer was manufactured before July 1, 2011.  O. Reg. 457/10, s. 24.

(2) A permit described in subsection (1) may be issued for the purpose of allowing the continued use of a vehicle by itself or in a combination referred to in subsection (1), but the permit shall be limited to the normal operating life of the vehicle and shall not be valid,

(a) in the case of an open-top hopper dump semi-trailer, for longer than 20 years after the year of its manufacture;

(b) in the case of a tank full trailer or a tank pony trailer, for longer than 20 years after the year of its manufacture;

(b.1) in the case of a tank semi-trailer, for longer than 25 years after the year of its manufacture;

(c) in the case of a semi-trailer, other than a tank semi-trailer, with four or more axles, for longer than 20 years after the year of its manufacture;

(d) in the case of a semi-trailer, other than a tank semi-trailer, that forms part of a tractor-trailer combination with two trailers, for longer than 20 years after the year of its manufacture;

(e) in the case of a truck that is a concrete mixer fitted with a revolving drum, for longer than 20 years after the year of its manufacture;

(f) in the case of a vehicle not referred to in clause (a), (b), (c), (d) or (e), for longer than 15 years after the year of its manufacture.  O. Reg. 457/10, s. 24; O. Reg. 16/14, s. 2.

Note: On the day section 7 of Schedule 12 to the Jobs for Today and Tomorrow Act (Budget Measures), 2016 comes into force, the Regulation is amended by adding the following section: (See: O. Reg. 402/16, s. 1)

Special permits to exceed dimension and weight limits, certain vehicles

34.0.1 (1) For the purposes of clause 110.1 (2) (d) of the Act, a permit may be issued under subsection 110.1 (1) of the Act in respect of any of the following vehicles, if the vehicle was manufactured prior to January 1, 2017:

1. A hydrovac.

2. A sewer cleaner.

3. A street sweeper. O. Reg. 402/16, s. 1.

(2) A permit described in subsection (1) may be issued for the purpose of allowing the vehicle to operate in excess of the weight limits set out in Part VIII of the Act or in a regulation made under that Part, as specified in the permit, so long as the vehicle does not exceed its manufacturer’s gross vehicle weight rating or any manufacturer’s gross axle weight rating. O. Reg. 402/16, s. 1.

(3) A permit described in subsection (1) is valid until the later of,

(a) June 30, 2020; and

(b) December 31 of the year that is 15 years after the model year of the vehicle in respect of which it was issued. O. Reg. 402/16, s. 1.

(4) Subject to subsection (5), in this section,

“hydrovac” means a vehicle,

(a) whose primary function is to inject pressurized water into the ground and to vacuum the resulting liquefied soil and debris, and

(b) that is equipped with two tanks, one to store water and the other to store debris;

“sewer cleaner” means a vehicle,

(a) whose primary function is to clean sewage systems using a high-pressure water sprayer, a vacuum system, or a combination thereof, and

(b) that is equipped with two tanks, one to store water and the other to store debris;

“street sweeper” means a vehicle whose primary function is to clean or sweep roadways with a power brush or broom or by means of a vacuum and to store collected debris in a mounted storage container. O. Reg. 402/16, s. 1.

(5) For the purposes of the definitions in subsection (4), “hydrovac”, “sewer cleaner” and “street sweeper” do not include vehicles designed or used to transport a load other than a load that is essential to the vehicle’s primary function. O. Reg. 402/16, s. 1.

Axle weight limits

34.1 (1) For the purposes of section 116 of the Act, if a non-designated vehicle or a vehicle that is part of a non-designated combination is manufactured after June 30, 2011, the weight on an axle unit shall not exceed the manufacturer’s gross axle weight rating if the manufacturer’s gross axle weight is less than the amount otherwise permitted by the Act and this Regulation.  O. Reg. 457/10, s. 25.

(2) If the driver of the vehicle or vehicle combination does not have with him or her verification in writing of the manufacturer’s gross axle weight ratings of the axles of the vehicle or combination, or if the driver does not provide that verification when demanded by a police officer or officer appointed for carrying out the provisions of this Act, the axle unit weight on an axle unit shall not exceed,

(a) for the front axle, the lower of 5,000 kilograms and the sum of the maximum tire load ratings specified on the tire side walls; and

(b) for other axles, the sum of the maximum tire load ratings specified on the tire side walls.  O. Reg. 457/10, s. 25.

Tractor tandem axle weight increases

35. (1) Tandem axles with an axle spread of at least 1.2 metres and less than 1.6 metres are prescribed axle units for the purposes of section 116 of the Act when they form part of a three-axle tractor that is not part of a designated combination, that has both a front single axle equipped with single tires and a rear tandem axle and that has no other axles deployed.  O. Reg. 457/10, s. 26 (2).

(2) Instead of the maximum allowable axle unit weights specified in Table 1 of Part VIII of the Act, the prescribed weight for the axle units prescribed in subsection (1) is 18,000 kilograms.  O. Reg. 413/05, s. 35 (2).

Miscellaneous

Flexible aerodynamic devices not included in length

36. (1) An aerodynamic device with which a commercial motor vehicle or trailer is equipped is exempt from clauses 109 (13.1) (a) and (b) of the Act if the device meets all of the following conditions:

1. The device is a flexible aerodynamic device.

2. When the device is not deployed, the device is capable of being folded so that no portion of it extends more than 0.305 metres beyond the rear of the vehicle or trailer.

3. When the device is deployed, no portion of the device that is 1.9 metres or less above the ground extends beyond a transverse vertical plane that,

i. starts from the rear bottom of the vehicle or trailer, and

ii. intersects the point that is 1.74 metres above the ground and 1.21 metres beyond the rear of the vehicle or trailer, as shown in Figure 4.

4. When the device is deployed, no portion of the device that is more than 1.9 metres above the ground extends more than 1.52 metres beyond the rear of the vehicle or trailer, as shown in Figure 4.

Dimensional requirements for an aerodynamic device to extend beyond the rear of the commercial motor vehicle or trailer

O. Reg. 8/16, s. 2.

(2) In subparagraph 3 i of subsection (1),

“rear bottom of the vehicle or trailer” means,

(a) if the vehicle or trailer is equipped with a rear impact guard, the rear bottom edge of the rear impact guard, or

(b) if the vehicle or trailer is not equipped with a rear impact guard, the rear bottom edge of its rearmost component having structural properties, including the deck, stairs or ramp, but excluding auxiliary equipment or machinery. O. Reg. 8/16, s. 2.

36.1 Revoked:  O. Reg. 457/10, s. 27.

Exemption from all maximum weights — fire apparatus

36.2 A fire apparatus is exempt from sections 116, 117 and 118 of the Act if the fire apparatus does not exceed the axle unit, axle group or gross vehicle weight ratings specified by the manufacturer.  O. Reg. 435/08, s. 2.

Schedules of Designated Vehicles and Combinations

Interpretation for Schedules

37. (1) The following interpretive rules apply to Schedules 1 to 31:

1. The column heading “Ref” refers to a reference number associated with a dimension of the designated vehicle or combination. Some of the dimensions are set out in the diagram at the top of the Schedule identified by their reference number.

2. A reference to an axle unit in a Configuration Description is to a deployed axle unit.  If an axle unit is not referred to in a Configuration Description, the designated combination does not have that axle unit unless it is an additional axle described in subsection 5 (1).

3. Where a tire weight limit is expressed as weight per millimetre, the reference is to a millimetre of tire width.

4. The sum of the maximum tire load ratings shall be determined by adding the highest tire load ratings of the tires as specified on the tire side walls.

5. A vehicle that is required to comply with subsection 109 (2) of the Act and that does comply with that subsection shall be deemed to be in compliance with the width limits in Schedules 1 to 31.

6. Maximum width shall be determined in accordance with subsections 109 (1), (3) and (4) of the Act.

7. Maximum length shall be determined in accordance with section 109 of the Act, excluding subsection 109 (10.1) of the Act.

8. “Not controlled” means that no measurement is prescribed.

9. “Overall” refers to the total combination.

10. In calculating allowable gross vehicle weight, where a Schedule refers to the actual weight on the front axle, if that weight exceeds maximum allowable weight for the axle, the maximum allowable weight must be used in the calculation.  O. Reg. 457/10, s. 28.

(2) In Schedules 1 to 31,

“AGVW” means allowable gross vehicle weight;

“allowable gross vehicle weight” means the maximum permissible weight of a vehicle or vehicle combination for the purpose of section 118 of the Act;

“bed length” means the external measurement of a trailer from the front of its cargo carrying space to the rear of its cargo carrying space, but excluding any portion of auxiliary equipment or machinery that extends beyond the front of the trailer and that is not designed for the transportation of goods;

“box length”, in a truck-trailer combination, means the external measurement from the front of the load-carrying portion of the truck to the rear of the trailer, including load, but excluding any portion of auxiliary equipment or machinery that extends beyond the front of the load-carrying portion of truck and that is not designed or used for the transportation of goods;

“converter dolly drawbar length” means the longitudinal distance from the centre of the hole in the fifth wheel of a converter dolly to the centre of its eye or equivalent device;

“effective rear overhang”, except where otherwise specified, means the longitudinal distance from the turn centre of the vehicle to its rearmost point, including any load;

“effective wheelbase” means the longitudinal distance between the geometric centres of front and rear axle units of a truck;

“GAWR” means manufacturer’s gross axle weight rating;

“hitch offset”,

(a) in the case of an A-train or C-train, means the longitudinal distance from the turn centre of the foremost semi-trailer to the articulation point of the hitch used to tow the rearmost trailer, and

(b) in the case of truck or tractor, means the longitudinal distance from the turn centre of the truck or tractor to the articulation point of the hitch or coupling device used to tow a trailer;

“inter-city bus” means a bus commonly known as a motor coach that has,

(a) motive power mounted to the rear of the front axle,

(b) air-ride or torsion-bar suspension,

(c) a baggage area that is separate from the passenger cabin, and

(d) a passenger cabin with 15 or more reclining seats for passengers;

“kg” means kilograms;

“load equalized” means that a vehicle that is required by subsection 14 (1) to be designed to load equalize actually does load equalize within the meaning of subsection 14 (2);

“m” means metres;

“Max.” means maximum;

“Min.” means minimum;

“mm” means millimeters;

“na” means not applicable;

“not load equalized” means that a vehicle that is required by subsection 14 (1) to be designed to load equalize does not actually load equalize within the meaning of subsection 14 (2);

“quadruple spread” means the longitudinal distance between the centres of the foremost and rearmost axles of the quadruple axle;

“RV” means recreational vehicle;

“self-steer”, with respect to an axle, means self-steering axle;

“swing radius” means the greatest horizontal distance from the vertical axis through the centre of the kingpin to any point on the semi-trailer ahead of the kingpin, including load and any extension to the length caused by auxiliary equipment or machinery;

“tag axle” means the rearmost axle of a bus or recreational vehicle that forms part of a two axle group with a drive axle;

“tandem” means tandem axle;

“track width” means the width of an axle across the outside faces of the tires measured at any point above the lowest point of the rim;

“tridem” means tridem axle;

“tri-drive” means tri-drive axle;

“verified” means that the driver of the vehicle or vehicle combination has with him or her verification in writing of the manufacturer’s gross axle weight ratings of the axles of the vehicle or combination and provides that verification when demanded by a police officer or officer appointed for carrying out the provisions of the Act.  O. Reg. 457/10, s. 28; O. Reg. 167/12, s. 3; O. Reg. 16/14, s. 3.

Application of Vehicle Weight Tables

38. (1) The following rules apply to the application of the Vehicle Weight Tables:

1. The appropriate Vehicle Weight Table from Vehicle Weight Tables 1 to 29 applies to a non-designated vehicle or combination to which section 22 applies.

2. If a Schedule specifies one of Vehicle Weight Tables 1 to 29, the specified Vehicle Weight Table applies to a designated vehicle or combination.

3. If a Schedule specifies Vehicle Weight Table 30 or 31, the specified Vehicle Weight Table applies to a designated truck-trailer combination.

4. Vehicle Weight Tables 32 and 33 apply to non-designated vehicles and combinations to which section 22 does not apply.  O. Reg. 457/10, s. 28.

(2) Where one of Vehicle Weight Tables 1 to 29 applies, the appropriate table is determined based on the number of axles and the inter-vehicle-unit distance or intra-vehicle-unit distance, with the following exceptions:

1. The maximum allowable gross vehicle weight for a 5-axle A-train double or C-train double is as prescribed in Vehicle Weight Table 8.

2. The maximum allowable gross vehicle weight for a 7-axle vehicle without a drawn vehicle is as prescribed in Vehicle Weight Table 16.

3. The maximum allowable gross vehicle weight for an eight or more axle vehicle without a drawn vehicle is as prescribed in Vehicle Weight Table 23.  O. Reg. 457/10, s. 28.

(3) In the case of non-designated combinations, if the gross weight transmitted to the highway by the rearmost vehicle of the combination is not at least five per cent of the gross weight of the combination, the axles of the rearmost vehicle are not included in calculating the base length and the number of axles when determining the combination’s maximum allowable gross vehicle weight under a Vehicle Weight Table; instead, the maximum allowable gross vehicle weight of the combination is determined by adding the weight derived from the appropriate Vehicle Weight Table and the actual weight of the rearmost vehicle.  O. Reg. 457/10, s. 28.

(4) If the determination of the maximum allowable gross vehicle weight under subsection (3) produces a result greater than 63,500 kilograms, the maximum allowable gross vehicle weight for the non-designated combination is 63,500 kilograms.  O. Reg. 457/10, s. 28.

(5) In this section and in the Vehicle Weight Tables,

“front axle weight”, in respect of a vehicle or vehicle combination that is not an aggregate vehicle, means,

(a) for a single front axle, the axle unit weight on the front axle or, if that weight is more than the maximum weight permitted for a single axle under section 116 of the Act, the maximum weight permitted for a single axle under section 116 of the Act,

(b) for a dual front axle, one-half of the axle unit weight on the dual front axle or, if that weight is more than one-half of the maximum weight permitted for a dual axle under section 116 of the Act, one-half of the maximum weight permitted for a dual axle under section 116 of the Act, and

(c) for a triple front axle, one-third of the axle unit weight for the triple front axle or, if that weight is more than one-third of the maximum weight permitted for a triple axle under section 116 of the Act, one-third of the maximum weight permitted for a triple axle under section 116 of the Act;

“intra-vehicle-unit distance”, for a five or six-axle vehicle without a drawn vehicle, means the greater of,

(a) the distance between the centres of the second and third axles from the front of the vehicle, and

(b) the distance between the centres of the third and fourth axles from the front of the vehicle;

“number of axles” means the total number of axles on a vehicle or vehicle combination that are deployed.  O. Reg. 457/10, s. 28.

(6) In Vehicle Weight Tables 1 to 29, subsections 25 (4) and (5) apply and subsection (5) of this section does not apply in determining front axle weight on an aggregate vehicle.  O. Reg. 457/10, s. 28.

SCHEDULE 1
DESIGNATED tractor-trailer COMBINATION 1 — TRACTOR FIXED AXLE semi-trailer

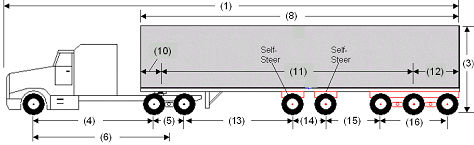

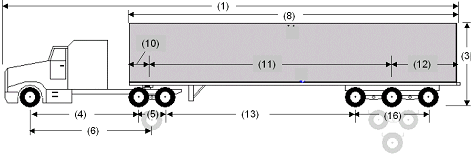

Illustration of Designated Tractor-Trailer Combination 1 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 1 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is either a single or tandem axle. The semi-trailer has one axle unit that is either a single, tandem or tridem axle.

Qualifying Preconditions

Equipment and components, see ss. 5, 6 and 8

Exceptions

Until January 1, 2020, the dimensional limits for Wheelbase (11), Effective Rear overhang (12), Inter-vehicle-unit distance (13) and Track Width (19) do not apply if the semi-trailer was built before 2006 and is not more than 14.65 metres long.

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.2 to 1.85m

Tractor

(6)

Wheelbase

Max. 7.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 7.2m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is 6.2m or less

6.25m to 12.50m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >6.2m to 6.3m

6.25m to 12.47m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >6.3m to 6.4m

6.25m to 12.40m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >6.4m to 6.5m

6.25m to 12.33m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >6.5m to 6.6m

6.25m to 12.27m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >6.6m to 6.7m

6.25m to 12.20m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >6.7m to 6.8m

6.25m to 12.13m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >6.8m to 6.9m

6.25m to 12.07m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >6.9m to 7.0m

6.25m to 12.00m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >7.0m to 7.1m

6.25m to 11.93m

Semi-Trailer

(11)

Wheelbase — If tractor wheelbase is >7.1m to 7.2m

6.25m to 11.87m

Semi-Trailer

(12)

Effective Rear Overhang

Max. 35% of wheelbase

Semi-Trailer

(13)

Inter-vehicle-unit Distance — single to single, tandem or tridem

Min. 3.0m

Semi-Trailer

(13)

Inter-vehicle-unit Distance — tandem to tandem

Min. 5.0m

Semi-Trailer

(13)

Inter-vehicle-unit Distance — tandem to tridem

Min. 5.5m

Semi-Trailer

(16)

Tandem Spread

1.2 to 3.1m

Semi-Trailer

(16)

Tridem Spread

2.4 to 3.7m

Semi-Trailer

(19)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Other Tractor Axles and Trailer Axles:





Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg



Tandem Axle by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8m or more (Single Tires)

18,000 kg



– 1.8m or more (Dual Tires)

19,100 kg



Tridem Axle – by axle spread:





– 2.4 < 3.0m

21,300 kg



– 3.0 < 3.6m

24,000 kg



– 3.6 to 3.7m

26,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii. Until January 1, 2020, maximum weight in appropriate Vehicle Weight Table (1-15), if semi-trailer Wheelbase (11) or Inter-vehicle-unit Distance (13), as provided in Exceptions note, are less than the minimums specified in the Dimensional Limit Chart

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 4; O. Reg. 16/14, s. 4.



SCHEDULE 2
DESIGNATED tractor-trailer COMBINATION 2 — TRACTOR SELF-STEER TRIAXLE SEMI-TRAILER

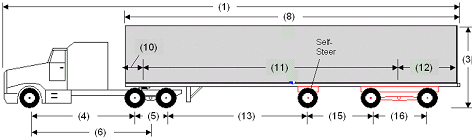

Illustration of Designated Tractor-Trailer Combination 2 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 2 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tandem axle. The semi-trailer has two axle units: a single self-steer axle (in front) and a tandem axle (in the rear).

Qualifying Preconditions

Weight, see s. 14

Equipment and components, see ss. 5, 6, 8, 9,10

Labelling, see s. 13

Exceptions

Until January 1, 2020, the dimensional limits for Wheelbase (11) and Track width (19) do not apply if the semi-trailer was built before 2006 and is not more than 14.65 metres long.

Alternatives

A vehicle combination that meets every requirement to be Designated Tractor-Trailer Combination 2 except that the self-steer axle of the semi-trailer is not deployed is Designated Tractor-Trailer Combination 1.

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0 m

Tractor

(5)

Tandem Axle Spread

1.2 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.2m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

6.25 to 12.5m

Semi-Trailer

(12)

Effective Rear Overhang

Max. 35% of wheelbase

Semi-Trailer

(13)

Inter-vehicle-unit Distance

Min. 4.0m if trailer built after 2005

Semi-Trailer

(15)

Inter-axle Spacing

> 2.5 to 3.0m

Semi-Trailer

(16)

Tandem Spread

1.2 to 2.8m

Semi-Trailer

(19)

Track Width — tandem — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — tandem — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width —tandem — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Tandem Drive Axle by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8m or more (Single Tires)

18,000 kg



– 1.8m or more (Dual Tires)

19,100 kg



Trailer Axles:



i. If tandem axle spread is 1.2 < 1.8m or there are single tires on any wheel of trailer:



1. self-steer axle (load equalized)

9,000 kg



2. self-steer axle (not load equalized)

7,500 kg



3. tandem axle (load equalized)

18,000 kg



4. tandem axle (not load equalized)

15,000 kg



  ii. If tandem axle spread is 1.8 to 2.8m and there are no single tires on any wheel of trailer:



1. self-steer axle (load equalized)

9,550 kg



2. self-steer axle (not load equalized)

8,000 kg



3. tandem axle (load equalized)

19,100 kg



4. tandem axle (not load equalized)

16,000 kg

Allowable Gross Vehicle Weight: (lowest of i, ii and iii)

i. actual weight on the front axle plus other axle maximums



  ii. maximum weight based on base length:



Base length

Maximum



< 13m

46,000 kg



13m < 13.75m

49,000 kg



13.75m < 14.5m

51,000 kg



14.5m < 15m

53,000 kg



15m or more

55,000 kg



iii. Until January 1, 2020, maximum weight in appropriate Vehicle Weight Table (9-15), if Semi-trailer Wheelbase (11), as provided in Exceptions note, is less than the minimum specified in the Dimensional Limit Chart

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 5.

SCHEDULE 3
DESIGNATED tractor-trailer COMBINATION 3 — TRACTOR SELF-STEER QUAD SEMI-TRAILER

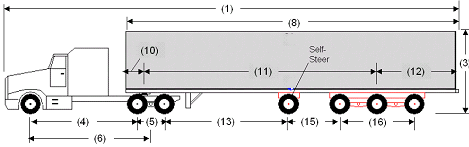

Illustration of Designated Tractor-Trailer Combination 3 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 3 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tandem axle. The semi-trailer has two axle units: a single self-steer axle in front and a tridem axle in the rear.

Qualifying Preconditions

Weight, see s. 14

Equipment and components, see ss. 5, 6, 8, 9

Labelling, see s. 13

Exceptions

Until January 1, 2020, the dimensional limits for Wheelbase (11), Inter-vehicle-unit Distance (13) and Track Width (19) do not apply if the semi-trailer was built before 2006 and is not more than 14.65 metres long and the Inter-vehicle-unit Distance (13) is not less than 4.5 metres.

Alternatives

A combination that meets every requirement to be Designated Tractor-Trailer Combination 3 except that the self-steer axle of the semi-trailer is not deployed is Designated Tractor-Trailer Combination 1.

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.2 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.2m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

6.25 to 12.5m

Semi-Trailer

(12)

Effective Rear Overhang

Max. 35% of wheelbase

Semi-Trailer

(13)

Inter-vehicle-unit Distance — if tridem spread is 3.0 < 3.6m

Min. 6.0m

Semi-Trailer

(13)

Inter-vehicle-unit Distance — if tridem spread is 3.6 to 3.7m

Min. 5.5m

Semi-Trailer

(15)

Inter-axle Spacing

> 2.5 to 3.0m

Semi-Trailer

(16)

Tridem Spread

3.0 to 3.7m

Semi-Trailer

(19)

Track Width — tridem — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — tridem — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — tridem — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive Axle – by tandem axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg



Trailer Axles – by tridem axle spread:



i. tridem axle spread is 3.0 < 3.6m:



1. self-steer axle (load equalized)

8,000 kg



2. self-steer axle (not load equalized)

6,900 kg



3. tridem axle (load equalized)

24,000 kg



4. tridem axle (not load equalized)

20,700 kg



  ii. tridem axle spread is 3.6 to 3.7m:





1. self-steer axle (load equalized)

8,500 kg



2. self-steer axle (not load equalized)

7,400 kg



3. tridem axle (load equalized)

25,500 kg



4. tridem axle (not load equalized)

22,200 kg

Allowable Gross Vehicle Weight: (lowest of i, ii and iii)

i.   actual weight on the front axle plus other axle maximums



  ii. Maximum weight based on base length:



Base length

Maximum



< 16.5

54,000 kg



16.5m < 17.5m

56,000 kg



17.5m < 18.25m

58,000 kg



18.25m < 18.75m

59,000 kg



18.75m < 19.25m

60,000 kg



19.25m or more

60,800 kg



iii. Until January 1, 2020, maximum weight in appropriate Vehicle Weight Table (16-22), if Semi-trailer Wheelbase (11) or Inter-vehicle-unit Distance (13), as provided in Exceptions note, are less than the minimums specified in the Dimensional Limit Chart

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 6.

SCHEDULE 4
DESIGNATED Tractor-Trailer COMBINATION 4 — TRACTOR SELF-STEER 5-AXLE SEMI-TRAILER (1-3-1)

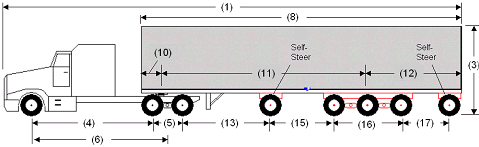

Illustration of Designated Tractor-Trailer Combination 4 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 4 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tandem axle. The semi-trailer has three axle units: a single self-steer axle in front, a tridem axle in the middle, and a single self-steer axle in the rear.

Qualifying Preconditions

Weight, see s. 14

Equipment and components, see ss. 5 to 10

Labelling, see s. 13

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.3 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.2m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

Min. 9.5m

Semi-Trailer

(12)

Effective Rear Overhang

Max. Lesser of 53% of wheelbase or 5.1m

Semi-Trailer

(13)

Inter-vehicle-unit Distance

Min. 3.0m

Semi-Trailer

(15)

Inter-axle Spacing

3.0 to 4.0m

Semi-Trailer

(16)

Tridem Spread

3.0 to 3.1m

Semi-Trailer

(17)

Inter-axle Spacing

2.1 to 2.8m

Semi-Trailer

(19)

Track Width — tridem axle — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — tridem axle — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — tridem axle — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive Axle – By tandem axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg



Trailer Axles:



  1) self-steer axle (load equalized)

7,500 kg



  2) self-steer axle (not load equalized)

6,600 kg



  3) tridem axle (load equalized)

22,500 kg



  4) tridem axle (not load equalized)

19,800 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii. maximum weight based on base length and inter-vehicle-unit distance:



Base length

Inter-vehicle-unit Distance





3.0m<3.3m

3.3m<3.6m

3.6m or more



< 17.75m

55,000 kg

56,000 kg

57,000 kg



17.75m < 18.5m

57,500 kg

59,000 kg

59,500 kg



18.50m < 19.25m

59,000 kg

60,500 kg

61,000 kg



19.25m or more

60,000 kg

62,000 kg

63,500 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 7.

SCHEDULE 5
DESIGNATED tractor-trailer COMBINATION 5 — TRACTOR SELF-STEER 5-AXLE SEMI-TRAILER (1-1-3)

Illustration of Designated Tractor-Trailer Combination 5 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 5 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tandem axle. The semi-trailer has three axle units: two single self-steer axles in front and a tridem axle in the rear.

Qualifying Preconditions

Weight, see s. 14

Equipment and components, see ss. 5 to 9

Labelling, see s. 13

Alternatives

A combination that meets every requirement to be Designated Tractor-Trailer Combination 5 except that the front self-steer axle of the semi-trailer is not deployed is Designated Tractor-Trailer Combination 3. A combination that meets every requirement to be Designated Tractor-Trailer Combination 5 except that both self-steer axles of the semi-trailer are not deployed is Designated Tractor-Trailer Combination 1.

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0 m

Tractor

(5)

Tandem Axle Spread

1.3 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.2m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

11.5 to 12.5m

Semi-Trailer

(12)

Effective Rear Overhang

Max. 35% of wheelbase

Semi-Trailer

(13)

Inter-vehicle-unit Distance

Min. 3.2m

Semi-Trailer

(14)

Inter-axle Spacing

1.5 to 2.8m

Semi-Trailer

(13) + (14)

Inter-vehicle unit Distance + Inter-axle Spacing

Min. 6.0m

Semi-Trailer

(15)

Inter-axle Spacing

>2.5 to 2.8m

Semi-Trailer

(16)

Tridem Spread

3.0 to 3.1m

Semi-Trailer

(19)

Track Width — tridem axle — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — tridem axle — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — tridem axle — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive Axle – By tandem axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg



Trailer Axles:



  1. self-steer axle (load equalized)

7,500 kg



  2. self-steer axle (not load equalized)

6,600 kg



  3. tridem axle (load equalized)

22,500 kg



  4. tridem axle (not load equalized)

19,800 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii. maximum weight based on base length and inter-vehicle-unit distance:



Base length

Inter-vehicle-unit Distance





3.2m<3.3m

3.3m<3.6m

3.6m or more



< 17.75m

55,000 kg

56,000 kg

57,000 kg



17.75m < 18.5m

57,500 kg

59,000 kg

59,500 kg



18.50m < 19.25m

59,000 kg

60,500 kg

61,000 kg



19.25m or more

60,000 kg

62,000 kg

63,500 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 8.

SCHEDULE 6
DESIGNATED tractor-trailer COMBINATION 6 — TRACTOR SELF-STEER 6-AXLE SEMI-TRAILER (1-4-1)

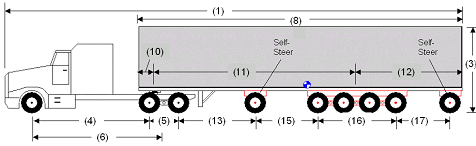

Illustration of Designated Tractor-Trailer Combination 6 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 6 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tandem axle. The semi-trailer has two axle units and one axle group: a single steer axle in front, a quadruple axle in the middle and a single self-steer axle in the rear.

Qualifying Preconditions

Weight, see s. 14

Equipment and components, see ss. 5 to 10

Labelling, see s. 13

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.3 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.2m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

Min. 9.5m

Semi-Trailer

(12)

Effective Rear Overhang

Max. Lesser of 53% of wheelbase or 5.1m

Semi-Trailer

(13)

Inter-vehicle-unit Distance

Min. 3.8m

Semi-Trailer

(15)

Inter-axle Spacing

2.9 to 3.0m

Semi-Trailer

(16)

Quadruple Spread

3.9 to 4.0m

Semi-Trailer

(17)

Inter-axle Spacing

2.3 to 2.8m

Semi-Trailer

(19)

Track Width — quadruple axle — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — quadruple axle — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — quadruple axle — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive axle – By tandem axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg



Trailer Axles:



  1. self-steer axle (load equalized)

6,500 kg



  2. self-steer axle (not load equalized)

5,750 kg



  3. quadruple axle (load equalized)

26,000 kg



  4. quadruple axle (not load equalized)

23,000 kg

Allowable Gross Vehicle Weight: (lowest of i, ii and iii)

i. actual weight on the front axle plus other axle maximums



  ii. maximum weight based on base length:



Base length

Maximum



< 17.75m

58,000 kg



17.75m < 18.25m

59,000 kg



18.25m < 18.75m

60,000 kg



18.75m < 19.25m

61,500 kg



19.25m or more

63,500 kg



iii. 62,500 kg, if the base length is 19.25m or more and front axle weight is less than 6,000 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 9.

SCHEDULE 7
DESIGNATED tractor-trailer COMBINATION 7TRACTOR SELF-STEER 6-AXLE SEMI-TRAILER (1-1-4)

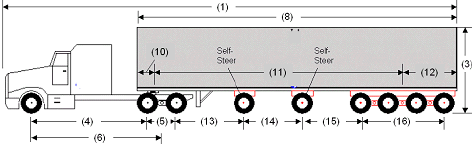

Illustration of Designated Tractor-Trailer Combination 7 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 7 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tandem axle. The semi-trailer has two axle units and one axle group: a single self-steer axle in front, another single self-steer axle in the middle and a quadruple axle in the rear.

Qualifying Preconditions

Weight, see s. 14

Equipment and components, see ss. 5 to 9

Labelling, see s. 13

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.3 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.2m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

11.5 to 12.5m

Semi-Trailer

(12)

Effective Rear Overhang

Max. 35% of wheelbase

Semi-Trailer

(13)

Inter-vehicle-unit Distance

Min. 3.0m

Semi-Trailer

(14)

Inter-axle Spacing

1.5 to 2.8m

Semi-Trailer

(15)

Inter-axle Spacing

2.7 to 2.8m

Semi-Trailer

(16)

Quadruple Spread

3.9 to 4.0m

Semi-Trailer

(19)

Track Width — quadruple axle — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — quadruple axle — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — quadruple axle — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit type

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive Axle – By tandem axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg



Trailer Axles:



  1) self-steer axle (load equalized)

6,500 kg



  2) self-steer axle (not load equalized)

5,750 kg



  3) quadruple axle (load equalized)

26,000 kg



  4) quadruple axle (not load equalized)

23,000 kg

Allowable Gross Vehicle Weight: (lowest of i, ii and iii)

i. actual weight on the front axle plus other axle maximums



  ii. maximum weight based on base length and inter-vehicle-unit distance:



Base length

Inter-vehicle-unit Distance





3.0m<3.3m

3.3m<3.6m

3.6m or more



< 17.75m

55,000 kg

56,500 kg

57,000 kg



17.75m < 18.5m

57,500 kg

59,000 kg

59,500 kg



18.50m < 19.25m

59,000 kg

60,500 kg

61,000 kg



19.25m or more

60,500 kg

62,000 kg

63,500 kg



iii. 62,500 kg, if the base length is 19.25m or more, the inter-vehicle-unit distance is 3.6m or more, and the front axle weight is less than 6,000 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 10.

SCHEDULE 8
DESIGNATED Tractor-Trailer COMBINATION 8 — TRI-DRIVE TRACTOR FIXED AXLE SEMI-TRAILER

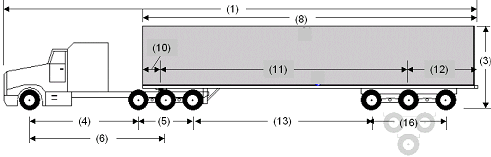

Illustration of Designated Tractor-Trailer Combination 8 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 8 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tri-drive. The semi-trailer has one axle unit that is either a single, tandem or tridem axle.

Qualifying Preconditions

Weight - The front axle weight must be at least 27 per cent of the tri-drive.

Equipment and components, see ss. 5, 6, 8, 11

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.5m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Not controlled

Tractor

(5)

Tridem Axle Spread

2.4 to 2.8m

Tractor

(6)

Wheelbase

6.6 to 6.8m

Tractor

(7)

Tridem Track Width — tractor with single tires built before 2010

2.3 to 2.6m

Tractor

(7)

Tridem Track Width — tractor with single tires built after 2009

2.45 to 2.6m

Tractor

(7)

Tridem Track Width — all other tractors

2.5 to 2.6m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

6.25 to 12.0m

Semi-Trailer

(12)

Effective Rear Overhang

Max. 35% of wheelbase

Semi-Trailer

(13)

Inter-vehicle-unit Distance — single to tridem

Min. 3.0m

Semi-Trailer

(13)

Inter-vehicle-unit Distance — tandem to tridem

Min. 5.5m

Semi-Trailer

(13)

Inter-vehicle-unit Distance — tridem to tridem

Min. 6.0m

Semi-Trailer

(16)

Tandem Spread

1.2 to 3.1m

Semi-Trailer

(16)

Tridem Spread

2.4 to 3.7m

Semi-Trailer

(19)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive Axle – by tridem axle spread:



– 2.4 < 2.7m

21,300 kg



– 2.7 to 2.8m

22,000 kg



Trailer Axles:



Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg



Tandem axle – by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8m or more (Single Tires)

18,000 kg



– 1.8m or more (Dual Tires)

19,100 kg



Tridem Axle – by axle spread:



– 2.4 < 3.0m

21,300 kg



– 3.0 < 3.6m

24,000 kg



– 3.6 to 3.7m

26,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 11.

SCHEDULE 9
DESIGNATED tractor-trailer COMBINATION 9 — TRI-DRIVE TRACTOR SELF-STEER TRIAXLE SEMI-TRAILER

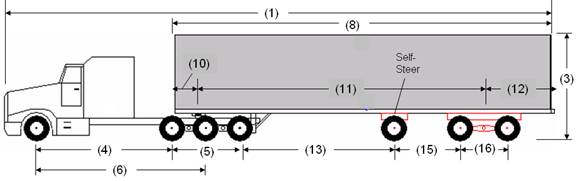

Illustration of Designated Tractor-Trailer Combination 9 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 9 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tri-drive. The semi-trailer has two axle units: a single self-steer axle in front and a tandem axle in the rear.

Qualifying Preconditions

Weight, see s. 14

The front axle weight must be at least 27 per cent of the tri-drive.

Equipment and components, see ss. 5, 6, 8 to 11

Labelling, see s. 13

Alternatives

A combination that meets every requirement to be Designated Tractor-Trailer Combination 9 except that the self-steer axle of the semi-trailer is not deployed is Designated Tractor-Trailer Combination 8.

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.5m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Not controlled

Tractor

(5)

Tridem Axle Spread

2.4 to 2.8m

Tractor

(6)

Wheelbase

6.6 to 6.8m

Tractor

(7)

Tridem Track Width — tractor with single tires built before 2010

2.3 to 2.6m

Tractor

(7)

Tridem Track Width — tractor with single tires built after 2009

2.45 to 2.6m

Tractor

(7)

Tridem Track Width — all other tractors

2.5 to 2.6m

Semi-Trailer

(8)

Length (long combination)

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

6.25 to 12.0m

Semi-Trailer

(12)

Effective Rear Overhang

Max. 35% of wheelbase

Semi-Trailer

(13)

Inter-vehicle-unit Distance

Min. 3.7m

Semi-Trailer

(15)

Inter-axle Spacing

>2.5 to 3.0m

Semi-Trailer

(16)

Tandem Spread

1.2 to 2.8m

Semi-Trailer

(19)

Track Width — tandem — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — tandem — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — tandem — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive Axle – by tridem axle spread:



– 2.4 < 2.7m

21,300 kg



– 2.7 to 2.8m

22,000 kg



Trailer Axles:



i. If tandem axle spread is 1.2 < 1.8m or there are single tires on any wheel of trailer:



1. self-steer axle (load equalized)

9,000 kg



2. self-steer axle (not load equalized)

7,500 kg



3. tandem axle (load equalized)

18,000 kg



4. tandem axle (not load equalized)

15,000 kg



  ii. If tandem axle spread is 1.8 to 2.8m and there are no single tires on any wheel of trailer:



1. self-steer axle (load equalized)

9,550 kg



2. self-steer axle (not load equalized)

8,000 kg



3. tandem axle (load equalized)

19,100 kg



4. tandem axle (not load equalized)

16,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii. maximum weight based on base length:



Base length

Maximum



< 16.0m

55,000 kg



16.0m < 16.75m

56,500 kg



16.75m or more

58,350 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 12.

SCHEDULE 10
DESIGNATED tractor-trailer COMBINATION 10TRI-DRIVE TRACTOR SELF-STEER QUAD SEMI-TRAILER

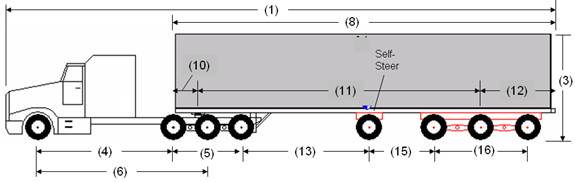

Illustration of Designated Tractor-Trailer Combination 10 with tractor attached to a semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 10 is composed of a tractor and a single semi-trailer. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a tri-drive. The semi-trailer has two axle units: a single self-steer axle in front and a tridem axle in the rear.

Qualifying Preconditions

Weight, see s. 14

The front axle weight must be at least 27 per cent of the tri-drive.

Equipment and components, see ss. 5, 6, 8, 9, 11

Labelling, see s. 13

Alternatives

A combination that meets every requirement to be Designated Tractor-Trailer Combination 10 except that the self-steer axle of the semi-trailer is not deployed is Designated Tractor-Trailer Combination 8.

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.5m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Not controlled

Tractor

(5)

Tridem Axle Spread

2.4 to 2.8m

Tractor

(6)

Wheelbase

6.6 to 6.8m

Tractor

(7)

Tridem Track Width — tractor with single tires built before 2010

2.3 to 2.6m

Tractor

(7)

Tridem Track Width — tractor with single tires built after 2009

2.45 to 2.6m

Tractor

(7)

Tridem Track Width — all other tractors

2.5 to 2.6m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(9)

End-Dump Semi-Trailer Bed Length

Max. 14.65m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase

6.25 to 12.0m

Semi-Trailer

(12)

Effective Rear Overhang

Max. 35% of wheelbase

Semi-Trailer

(13)

Inter-vehicle-unit Distance — if tridem spread is 3.0 < 3.6m

Min. 5.0m

Semi-Trailer

(13)

Inter-vehicle-unit Distance — if tridem spread is 3.6 to 3.7m

Min. 4.5m

Semi-Trailer

(15)

Inter-axle Spacing

>2.5 to 3.0m

Semi-Trailer

(16)

Tridem Spread

3.0 to 3.7m

Semi-Trailer

(19)

Track Width — tridem — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — tridem — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — tridem — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive Axle – by tridem axle spread:



– 2.4 < 2.7m

21,300 kg



– 2.7 to 2.8m

22,000 kg



Trailer Axles: – by tridem axle spread



i. 3.0 < 3.6m



1. self-steer axle (load equalized)

8,000 kg



2. self-steer axle (not load equalized)

6,900 kg



3. tridem axle (load equalized)

24,000 kg



4. tridem axle (not load equalized)

20,700 kg



  ii. 3.6 to 3.7m



1. self-steer axle (load equalized)

8,500 kg



2. self-steer axle (not load equalized)

7,400 kg



3. tridem axle (load equalized)

25,500 kg



4. tridem axle (not load equalized)

22,200 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii. 63,500 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 13.

schedule 11
DESIGNATED tractor-trailer COMBINATION 11 — TRACTOR A-TRAIN DOUBLE TRAILERS

Illustration of Designated Tractor-Trailer combination with tractor attached to two semi-trailers as described below.

Configuration Description

Designated Tractor-Trailer Combination 11 is an A-train double. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a single or tandem axle. The lead semi-trailer has one axle unit that is a single or tandem axle. If there is a trailer converter dolly, it has a single axle and the second semi-trailer has one axle unit that is a single or tandem axle. If there is no trailer converter dolly, the full trailer has two axle units: a single axle in front and a single or tandem axle in the rear.

Qualifying Preconditions

Weight

The sum of the weights of the converter dolly axle and the second trailer axles must not exceed the sum of the weights of the tractor drive axles and the lead semi-trailer axles.

If the inter-vehicle-unit distance between the trailers is less than 3 metres, the sum of the weight of the axles of the lead semi-trailer and the trailer converter dolly or forward axle of a full trailer must not exceed,

(a) 17,000 kg, if there is a single axle on the lead semi-trailer; or

(b) 23,000 kg, if there is a tandem axle unit on the lead semi-trailer.

Equipment and components, see ss. 5, 6, 8

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 25.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.2 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.2m

Lead Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Lead Semi-Trailer

(11)

Wheelbase

Min. 6.25m

Lead Semi-Trailer

(13)

Inter-vehicle-unit Distance — single to single or tandem

Min. 3.0m

Lead Semi-Trailer

(13)

Inter-vehicle-unit Distance — tandem to tandem

Min. 5.0m

Lead Semi-Trailer

(16)

Tandem Spread

1.2 to 1.85m

Lead Semi-Trailer

(18)

Hitch Offset

Max. 1.8m

Lead Semi-Trailer

(19)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Lead Semi-Trailer

(19)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Lead Semi-Trailer

(19)

Track Width — all other trailers

2.5 to 2.6m

Combination

(20)

Box Length

Max. 20.0m

Combination

(21)

Converter Dolly Drawbar Length

Not controlled

Combination

(22)

Converter Dolly Track Width — converter dolly with single tires built before 2010

2.3 to 2.6m

Combination

(22)

Converter Dolly Track Width — converter dolly with single tires built after 2009

2.45 to 2.6m

Combination

(22)

Converter Dolly Track Width — all other converter dollies

2.5 to 2.6m

Second Semi or Full Trailer

(25)

Wheelbase

Min. 6.25m

Second Semi or Full Trailer

(26)

Inter-vehicle-unit Distance

Not controlled

Second Semi or Full Trailer

(27)

Inter-axle Spacing

Min. 3.0m

Second Semi or Full Trailer

(28)

Tandem Spread

1.2 to 1.85m

Second Semi or Full Trailer

(29)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Second Semi or Full Trailer

(29)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Second Semi or Full Trailer

(29)

Track Width — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Other Tractor Axles and Trailer Axles:



Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg



Tandem Axle – by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii.



1. Until December 31, 2020,



A.   if long combination or one of its trailers was built after 2005, maximum weight based on number of axles:



Number of axles

Maximum



5

41,900 kg



6

49,800 kg



7 or 8

53,500 kg



B. if not long combination and both trailers are built before 2006, AGVW is amount shown in appropriate Vehicle Weight Tables 3 to 29



2. After 2020, maximum weight based on number of axles:





Number of axles

Maximum



5

41,900 kg



6

49,800 kg



7 or 8

53,500 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 14.

SCHEDULE 12
DESIGNATED tractor-trailer COMBINATION 12 — TRACTOR B-TRAIN DOUBLE TRAILERS

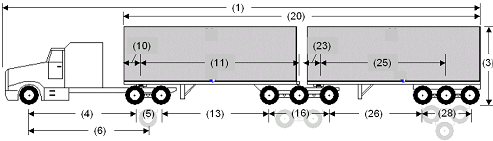

Illustration of Designated Tractor-Trailer Combination 12 with tractor attached to two semi-trailers as described below.

Configuration Description

Designated Tractor-Trailer Combination 12 is a B-train double. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a single or tandem axle. The lead semi-trailer has one axle unit that is a tandem or tridem axle. The second semi-trailer has one axle unit that is a single, tandem or tridem axle.

Qualifying Preconditions

Equipment and components, see ss. 5, 6, 8

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 27.5m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.2 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.8m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.8m

Lead Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Lead Semi-Trailer

(11)

Wheelbase

Min. 6.25m

Lead Semi-Trailer

(13)

Inter-vehicle-unit Distance — single to tandem or tridem

Min. 3.0m

Lead Semi-Trailer

(13)

Inter-vehicle-unit Distance — tandem to tandem

Min. 5.0m

Lead Semi-Trailer

(13)

Inter-vehicle-unit Distance — tandem to tridem

Min. 5.5m

Lead Semi-Trailer

(16)

Tandem Spread

1.2 to 1.85m

Lead Semi-Trailer

(16)

Tridem Spread

2.4 to 3.1m

Lead Semi-Trailer

(19)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Lead Semi-Trailer

(19)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Lead Semi-Trailer

(19)

Track Width — all other trailers

2.5 to 2.6m

Combination

(20)

Box Length

Max. 20.0m

Combination

(11)+(25)

Sum of Trailer Wheelbases — if tractor wheelbase is 6.2m or less

Max. 17.0m

Combination

(11)+(25)

Sum of Trailer Wheelbases — if tractor wheelbase is >6.2m to 6.3m

Max. 16.53m

Combination

(11)+(25)

Sum of Trailer Wheelbases — if tractor wheelbase is >6.3m to 6.4m

Max. 16.44m

Combination

(11)+(25)

Sum of Trailer Wheelbases — if tractor wheelbase is >6.4m to 6.5m

Max. 16.36m

Combination

(11)+(25)

Sum of Trailer Wheelbases — if tractor wheelbase is >6.5m to 6.6m

Max. 16.27m

Combination

(11)+(25)

Sum of Trailer Wheelbases — if tractor wheelbase is >6.6m to 6.7m

Max. 16.19m

Combination

(11)+(25)

Sum of Trailer Wheelbases — if tractor wheelbase is >6.7m to 6.8m

Max. 16.10m

Second Trailer

(23)

Swing Radius

Max. 2.0m

Second Trailer

(24)

Kingpin behind rearmost axle of lead trailer

Max. 0.3m

Second Trailer

(25)

Wheelbase

Min. 6.25m

Second Trailer

(26)

Inter-vehicle-unit Distance — single to tandem or tridem

Min. 3.0m

Second Trailer

(26)

Inter-vehicle-unit Distance — tandem to tandem

Min. 5.0m

Second Trailer

(26)

Inter-vehicle-unit Distance — tandem to tridem

Min. 5.5m

Second Trailer

(26)

Inter-vehicle-unit Distance — tridem to tridem

Min. 6.0m

Second Trailer

(28)

Tandem Spread

1.2 to 1.85m

Second Trailer

(28)

Tridem Spread

2.4 to 3.1m

Second Trailer

(29)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Second Trailer

(29)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Second Trailer

(29)

Track Width — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Other Tractor and Trailer Axles:



Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg



Tandem Axle – by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg



Tridem Axle – by axle spread



2.4 < 3.0m

21,300 kg



3.0 to 3.1m

24,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii. if a 7, 8 or 9-axle combination, maximum weight based on number of axles and base length:



If 7-axle combination:



Base length

Maximum



< 17.0

56,500 kg



17<18m

57,000 kg



18<19m

58,500 kg



19m or more

60,300 kg



If 8 or 9-axle combination:



Base length

Maximum



< 19.0

61,000 kg



19.0<19.5m

62,000 kg



19.5<20.5m

63,000 kg



20.5m or more

63,500 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 15; O. Reg. 8/16, s. 3.

SCHEDULE 13
DESIGNATED tractor-trailer COMBINATION 13 — TRACTOR C-TRAIN DOUBLE TRAILERS

Illustration of Designated Tractor-Trailer combination with tractor attached to two semi-trailers as described below.

Configuration Description

Designated Tractor-Trailer Combination 13 is a C-train double. The front axle of the tractor is a single axle with single tires. The drive axle of the tractor is a single or tandem axle. The lead semi-trailer has one axle unit that is a single or tandem axle. The trailer converter dolly has one axle unit that is a single axle. The second semi-trailer has one axle unit that is a single or tandem axle.

Qualifying Preconditions

Weight

The sum of the weights of the converter dolly axle and the second trailer axles must not exceed the sum of the weights of the tractor drive axles and the lead semi-trailer axles.

If the inter-vehicle-unit distance between the trailers is less than 3 metres the sum of the weight of the axles of the lead semi-trailer and the trailer converter dolly must not exceed,

(a) 17,000 kg, if there is a single axle on the lead semi-trailer; or

(b) 23,000 kg, if there is a tandem axle unit on the lead semi-trailer.

Equipment and components, see ss. 5, 6, 8, 12

DIMENSIONAL LIMIT CHART



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 25.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.2 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m if tractor built after 2005

Tractor

(6)

Wheelbase — (long combination)

Max. 6.2m

Lead Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Lead Semi-Trailer

(11)

Wheelbase

Min. 6.25m

Lead Semi-Trailer

(13)

Inter-vehicle-unit Distance — single to single or tandem

Min. 3.0m

Lead Semi-Trailer

(13)

Inter-vehicle-unit Distance — tandem to tandem

Min. 5.0m

Lead Semi-Trailer

(16)

Tandem Spread

1.2 to 1.85m

Lead Semi-Trailer

(18)

Hitch Offset

Max. 1.8m

Lead Semi-Trailer

(19)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Lead Semi-Trailer

(19)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Lead Semi-Trailer

(19)

Track Width — all other trailers

2.5 to 2.6m

Combination

(20)

Box Length

Max. 20.0m

Combination

(21)

Converter Dolly Drawbar Length

Max. 2.0m

Combination

(22)

Converter Dolly Track Width — converter dolly with single tires built before 2010

2.3 to 2.6m

Combination

(22)

Converter Dolly Track Width — converter dolly with single tires built after 2009

2.45 to 2.6m

Combination

(22)

Converter Dolly Track Width — all other converter dollies

2.5 to 2.6m

Second Trailer

(25)

Wheelbase

Min. 6.25m

Second Trailer

(26)

Inter-vehicle-unit Distance

Not controlled

Second Trailer

(27)

Inter axle Spacing

Min. 3.0m

Second Trailer

(28)

Tandem Spread

1.2 to 1.85m

Second Trailer

(29)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Second Trailer

(29)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Second Trailer

(29)

Track Width — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Other Tractor and Trailer Axles:



Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg



Tandem Axle – by axle spread



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii.



1. Until December 31, 2020,



A. if long combination or one of its trailers was built after 2005, maximum weight based on number of axles:



Number of axles

Maximum



5

41,900 kg



6

49,800 kg



7

54,600 kg



8

58,500 kg



B. if not long combination and both trailers are built before 2006, amount shown in appropriate Vehicle Weight Tables 3 to 29





2. After 2020, maximum weight based on number of axles:





Number of axles

Maximum



5

41,900 kg



6

49,800 kg



7

54,600 kg



8

58,500 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 16.

SCHEDULE 14
DESIGNATED tractor-trailer COMBINATION 14 — stinger-steer TRACTOR semi-trailer auto carrier

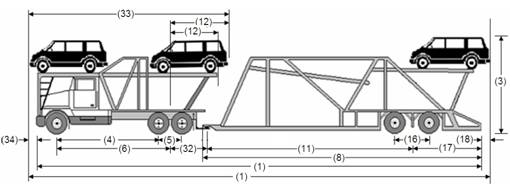

Illustration of Designated Tractor-Trailer Combination 14 with tractor attached to semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 14 is a stinger-steer combination composed of a tractor and semi-trailer. The fifth wheel assembly is mounted on a drop frame located behind and below the centre of the rearmost axle of the tractor.  The front axle of the tractor is a single axle with single tires and the drive axle is single or tandem. The semi-trailer has a single or tandem axle.

Qualifying Preconditions

The width of the tractor or trailer rear load overhang, including extendable support plates, if any, does not exceed 2.3m.

Equipment and Components, see ss. 5, 6, 8

Exceptions

A non-enclosed auto carrier where only the loaded motor vehicles and support plates, if any, on which the motor vehicles rest extend beyond the Overall Length (1), Height (3) and Tractor Effective Rear Overhang (12) limits set out in the Dimensional Limit Chart below is exempt from those limits. The following limits apply to these exempted auto carriers:

Overall length (1) – 25 metres

Height (3) – 4.3 metres

Tractor Effective Rear Overhang (12) – 4.6 metres

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.2 to 1.85m

Tractor

(6)

Wheelbase

Not controlled

Tractor

(12)

Tractor Effective Rear Overhang

Max. 4.0m

Tractor

(32)

Hitch Offset

Max. 2.3m

Tractor

(33)

Length

Max. 12.5m

Tractor

(34)

Front Load Overhang

Max. 1.0 m

Semi-Trailer

(8)

Length

Max. 14.65m

Semi-Trailer

(11)

Wheelbase:

6.25 to 12.5m

Semi-Trailer

(16)

Tandem Axle Spread

1.2 to 3.10m

Semi-Trailer

(17)

Effective Rear Overhang (excluding rear load overhang)

Max. 4.0m or 42% of wheelbase (whichever is greater)

Semi-Trailer

(18)

Rear Load Overhang

Max. 1.2m

Semi-Trailer

(19)

Track Width — trailer with single tires built before 2010

2.3 to 2.6m

Semi-Trailer

(19)

Track Width — trailer with single tires built after 2009

2.45 to 2.6m

Semi-Trailer

(19)

Track Width — all other trailers

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axles Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Other Tractor Axles and Trailer Axles:



– Single Axle (Single Tires)

9,000 kg



– Single Axle (Dual Tires)

10,000 kg



Tandem Axle

18,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 17.

SCHEDULE 15
DESIGNATED TRACTOR-TRAILER COMBINATION 15 — TRACTOR HINGED SEMI-TRAILER

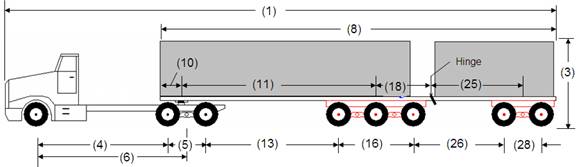

Illustration of Designated Tractor-Trailer Combination 15 with tractor attached to hinged semi-trailer as described below.

Configuration Description

Designated Tractor-Trailer Combination 15 is a combination composed of a tractor and a hinged single semi-trailer.  The front axle of the tractor is a single axle with single tires.  The drive axle of the tractor is a tandem axle.  The semi-trailer consists of two portions permanently attached by a dual hinging system designed to prevent rotation (roll freedom) between the two portions of the semi-trailer. The front portion of the semi-trailer has a tridem axle and the rear portion of the trailer has a tandem axle.

The forward hinge of the dual hinging system allows at least 22 degrees horizontal articulation in either direction from the straight position.  The rearward hinge allows the rear portion of the trailer to articulate downward, but does not allow upward articulation relative to the front portion of the trailer. The hinge position shown in the diagram refers to the articulation point of the forward horizontal hinge.  The position of the rearward hinge is not controlled.

Qualifying Preconditions

Weight, see s. 14

Equipment and components, see ss. 5, 6, 7, 8

If equipped with a hinge locking device, the device must be disengaged when operating on a highway, other than when reversing.

Cargo must not span the hinge of the trailer if secured to both portions of the trailer.

Labelling, see s. 13

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23.0m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Tractor

(4)

Inter-axle Spacing

Min. 3.0m

Tractor

(5)

Tandem Axle Spread

1.2 to 1.85m

Tractor

(6)

Wheelbase

Max. 6.2m

Semi-Trailer

(8)

Length

Max. 16.2m

Semi-Trailer

(10)

Swing Radius

Max. 2.0m

Semi-Trailer

(11)

Wheelbase (Front Portion)

Min. 7.9m

Semi-Trailer

(13)

Inter-vehicle-unit Distance

Min. 5.3m

Semi-Trailer

(16)

Tridem Spread

3.0 to 3.1m

Semi-Trailer

(18)

Hinge Offset

Max 2.0m

Semi-Trailer

(19)

Track Width of tandem axle and tridem axle — single tires

2.45 to 2.6m

Semi-Trailer

(19)

Track Width of tandem axle and tridem axle — dual tires

2.5 to 2.6m

Semi-Trailer

(25)

Wheelbase (Rear Portion)

Min. 4.0m

Semi-Trailer

(26)

Inter-axle Spacing

Min. 3.7m

Semi-Trailer

(28)

Tandem Spread

1.5 to 1.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle (Maximum):  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified); or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axles (Maximum):  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Tractor Drive Axle – by tandem axle spread



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (single tires)

18,000 kg



– 1.8 to 1.85m (dual tires)

19,100 kg



Trailer:



Tandem axle (load equalized)

16,000 kg



Tandem axle (not load equalized)

14,000 kg



Tridem axle (load equalized)

24,000 kg



Tridem axle (not load equalized)

21,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii.



– 62,000 kg if actual front axle weight is less than 6,000 kg



– 63,000 kg if actual front axle weight is 6,000 kg to less than 7,000 kg



– 63,500 kg if actual front axle weight is 7,000 kg or more

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 18.

SCHEDULE 16
DESIGNATED BUS OR RECREATIONAL VEHICLE 1 — STANDARD BUS OR COMPARABLE RECREATIONAL VEHICLE

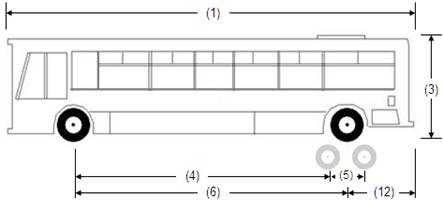

Illustration of Designated Bus or Recreational Vehicle 1, a bus or recreational vehicle, as described below.

Vehicle Description

Designated Bus or Recreational Vehicle 1 is a bus or recreational vehicle.  It is not an articulated bus.  It may be a school bus, motor coach or double-decker bus. The front axle is a single axle with single tires.  The drive axle is a single or tandem axle. If the drive axle is a single axle, it may form a two axle group with a tag axle to the rear.  It is not equipped with a fifth wheel assembly.

Qualifying Preconditions

Equipment and components, see s. 8

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Bus or RV

(1)

Length

Max. 12.5m

Bus or RV

(2)

Width

Max. 2.6m

Bus or RV

(3)

Height

Max. 4.15m

Bus or RV

(4)

Inter-axle Spacing

Not controlled

Bus or RV

(5)

Rear Tandem or Two Axle Group

1.2 to 1.85m

Bus or RV

(6)

Wheelbase

Not controlled

Bus or RV

(12)

Effective Rear Overhang

Not controlled

WEIGHT Limit Chart



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

9,000 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Tag Axle – 10 kg × combined tire widths in mm







Tag Axle (vehicle manufactured before July 1, 2011) – 11 kg × combined tire widths in mm



Drive Axle – 10 kg × combined tire widths in mm

  c) by axle unit description

Single Drive Axle (Single Tires)

9,000 kg



Single Drive Axle (Dual Tires)

10,000 kg



Single Drive Axle (Dual Tires) on Urban Transit Bus not equipped with a tag axle

11,400 kg



Tag Axle (by Two Axle Group spacing)



– 1.2 < 1.3m

6,300 kg



– 1.3 < 1.4m

6,700 kg



– 1.4 < 1.5m

7,000 kg



– 1.5 < 1.85m

7,400 kg



Tandem Drive Axle

18,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 19.

SCHEDULE 17
DESIGNATED BUS OR RECREATIONAL VEHICLE 2 — INTER-CITY BUS OR COMPARABLE RECREATIONAL VEHICLE

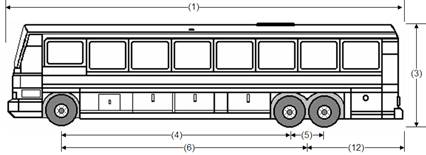

Illustration of Designated Bus or Recreational Vehicle 2, an inter-city bus or recreational vehicle, as described below.

Vehicle Description

Designated Bus or Recreational Vehicle 2 is an inter-city bus or recreational vehicle that has two or three axles and exceeds 12.5 metres in length.  It cannot be a school bus but can be a double-decker bus.  The vehicle is not equipped with a fifth wheel assembly.  If the vehicle is a recreational vehicle, it is equipped in the same manner as a motor coach with motive power mounted to the rear of the front axle and an air-ride or torsion-bar suspension.

Designated Bus or Recreational Vehicle 2 has two or three axles. The front axle unit is a single axle with single tires.  The rear axles are a single or tandem drive axle or a two axle group.  If the rear axles are a two axle group, they are composed of a single drive axle in front and a tag axle in the rear.

Qualifying Preconditions

Equipment and Components – see s. 8

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Bus or RV

(1)

Length

Max. 14.0m

Bus or RV

(2)

Width

Max. 2.6m

Bus or RV

(3)

Height

Max. 4.15m

Bus or RV

(4)

Inter-axle Spacing

Not controlled

Bus or RV

(5)

Rear Tandem or Two Axle Group

1.2 to 1.85m

Bus or RV

(6)

Wheelbase

Not controlled

Bus or RV

(12)

Effective Rear Overhang

Max. 4.0m

WEIGHT Limit Chart



Feature

Weight Limit

Front Axle:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

9,000 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Tag Axle

10 kg × combined tire widths in mm



Tag Axle (Vehicle built before July 1, 2011)

11 kg × combined tire widths in mm



Drive Axle

10 kg × combined tire widths in mm

  c) by axle unit description

Single Drive Axle (Single Tires)

9,000 kg



Single Drive Axle (Dual Tires)

10,000 kg



Tag Axle (by Two Axle Group spacing)



– 1.2 < 1.3m

6,300 kg



– 1.3 < 1.4m

6,700 kg



– 1.4 < 1.5m

7,000 kg



– 1.5 < 1.85m

7,400 kg



Tandem Drive Axle

18,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 20.

SCHEDULE 18
DESIGNATED BUS 3 — ARTICULATED BUS

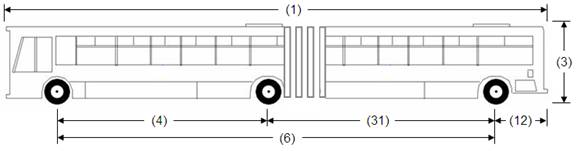

Illustration of Designated Bus or Recreational Vehicle 3, an articulated bus, as described below.

Vehicle Description

Designated Bus 3 is an articulated bus.  It is not a recreational vehicle.  An articulated bus has two portions with articulation between the portions, or has three portions with articulation between each portion.

It is equipped with a single axle at the rear of each portion of the bus.  The front axle unit is a single axle with single tires.

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Articulated Bus

(1)

Length

Max. 25m

Articulated Bus

(2)

Width

Max. 2.6m

Articulated Bus

(3)

Height

Max. 4.15m

Articulated Bus

(4)

Inter-axle Spacing

Not controlled

Articulated Bus

(6)

Wheelbase

Not controlled

Articulated Bus

(12)

Effective Rear Overhang

Not controlled

Articulated Bus

(31)

Inter-axle Spacing

Not controlled

WEIGHT Limit Chart



Feature

Weight Limit

Front Axle:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. if GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

9,000 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by sum of tire widths

10 kg × combined tire widths in mm

  c) by axle unit description

Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg



Single Drive Axle (Dual Tires) on Urban Transit Bus

11,400 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 21.

SCHEDULE 19
DESIGNATED TRUCK 1 — 2-AXLE TRUCK

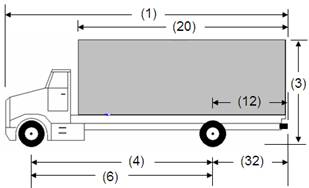

Illustration of Designated Truck 1, a 2-axle truck, as described below.

Vehicle Description

Designated Truck 1 is a 2-axle truck with a front single axle and rear single drive axle.

Qualifying Preconditions

Weight The front axle weight must be at least 30 per cent of the gross vehicle weight at all times.

Equipment and components, see ss. 5, 8

Exceptions

Until December 31, 2025, the dimensional limit for Effective Rear Overhang (12) does not apply if the truck was built before July 1, 2011.

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if either the truck or the trailer that it is drawing was built before July 1, 2011 or if both were built before July 1, 2011.

An overhanging boom of a rear-facing crane that extends 1.0 metre or less past the rearmost point of the truck is exempt from the dimensional limit for Effective Rear Overhang (12).

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Truck

(1)

Length

Max. 12.5m

Truck

(2)

Width

Max. 2.6m

Truck

(3)

Height

Max. 4.15m

Truck

(4)

Inter-axle Spacing

Min. 3.0m

Truck

(6)

Wheelbase

Not controlled

Truck

(12)

Effective Rear Overhang

Max. 4.0m

Truck

(20)

Box Length

Not controlled

Truck

(32)

Hitch Offset (if drawing trailer)

Max. 1.8m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

9,000 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Drive Axle



Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 22; O. Reg. 8/16, s. 4.

SCHEDULE 20
DESIGNATED TRUCK 2 — TANDEM-AXLE TRUCK

Illustration of Designated Truck 2, a 3-axle truck, as described below.

Vehicle Description

Designated Truck 2 is a 3-axle truck with a front single axle and rear tandem drive axle.

Qualifying Preconditions

Weight The front axle weight must be at least 21 per cent of the gross vehicle weight at all times.

Equipment and components, see ss. 5, 8

Exceptions

Until December 31, 2025, the dimensional limit for Effective Rear Overhang (12) does not apply if the truck was built before July 1, 2011.

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if either the truck or the trailer that it is drawing was built before July 1, 2011 or if both were built before July 1, 2011.

An overhanging boom of a rear-facing crane that extends 1.0 metre or less past the rearmost point of the truck is exempt from the dimensional limit for Effective Rear Overhang (12).

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Truck

(1)

Length

Max. 12.5m

Truck

(2)

Width

Max. 2.6m

Truck

(3)

Height

Max. 4.15m

Truck

(4)

Inter-axle Spacing

Min. 3.0m

Truck

(5)

Tandem Axle Spread

1.2 to 1.88m

Truck

(6)

Wheelbase

Not controlled

Truck

(12)

Effective Rear Overhang

Max. 4.0m

Truck

(20)

Box Length

Not controlled

Truck

(32)

Hitch Offset (if drawing trailer)

Max. 1.8m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

9,000 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Tandem Drive Axle by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.88m (Single tires)

18,000 kg



– 1.8 to 1.88m (Dual Tires)

19,100 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii. maximum weight based on base length:



Base length

Maximum



< 4.5m

25,000 kg



4.5m < 4.7m

26,000 kg



4.7m < 4.9m

27,000 kg



4.9m or more

28,100 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 23; O. Reg. 8/16, s. 5.

SCHEDULE 21
DESIGNATED TRUCK 3 — 3-axle truck plus auxiliary axle

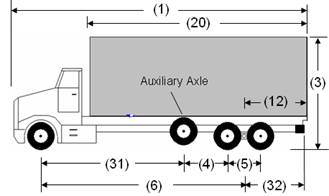

Illustration of Designated Truck 3, a 4-axle truck, as described below.

Vehicle Description

Designated Truck 3 is a 4-axle truck with a front single axle, a liftable auxiliary self-steer axle or an optionally liftable forced-steer auxiliary pusher axle, and a rear tandem drive axle.

Qualifying Preconditions

Weight, see s. 14

The front axle weight must be at least 19 per cent of the gross vehicle weight at all times.  A liftable auxiliary self-steer axle must not be deployed if the resulting weight on the axle is less than 3,000 kilograms.

Equipment and components, see ss. 5, 8, 9

Labelling, see s. 13

Exceptions

Until December 31, 2025, the dimensional limits for Effective Rear Overhang (12) and Tandem Axle Track Width (35) do not apply if the truck was built before July 1, 2011.

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if either the truck or the trailer that it is drawing was built before July 1, 2011 or if both were built before July 1, 2011.

An overhanging boom of a rear-facing crane that extends 1.0 metre or less past the rearmost point of the truck is exempt from the dimensional limit for Effective Rear Overhang (12)

Alternatives

A truck that meets every requirement to be Designated Truck 3 except that the liftable axle is not deployed is Designated Truck 2.

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Truck

(1)

Length

Max. 12.5m

Truck

(2)

Width

Max. 2.6m

Truck

(3)

Height

Max. 4.15m

Truck

(4)

Inter-axle Spacing

2.3 to 2.8m

Truck

(5)

Tandem Axle Spread

1.3 to 1.6m

Truck

(6)

Wheelbase

Not controlled

Truck

(12)

Effective Rear Overhang

Max. 4.0m

Truck

(20)

Box Length

Not controlled

Truck

(31)

Inter-Axle Spacing

Min. 3.0m

Truck

(32)

Hitch Offset (if drawing trailer)

Max. 1.8m

Truck

(35)

Tandem Axle Track Width

2.4 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

9,000 kg

Other Axle Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Auxiliary axle

11 kg × combined tire widths in mm



Not auxiliary axle

10 kg × combined tire widths in mm

  c) by axle unit description

Auxiliary axle (load-equalized)

6,000 kg



Auxiliary axle (not load-equalized)

4,500 kg



Tandem drive axle (load-equalized)

18,000 kg



Tandem drive axle (not load-equalized)

15,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 24; O. Reg. 8/16, s. 6.

SCHEDULE 22
DESIGNATED TRUCK 4 — twin-steer tandem-drive truck

Illustration of Designated Truck 4, a 4-axle truck, as described below.

Vehicle Description

Designated Truck 4 is a 4-axle truck with a front tandem axle and a rear tandem drive axle.

Qualifying Preconditions

Weight – The front axle weight must be at least 38 per cent of the gross vehicle weight at all times.

Equipment and components, see ss. 5, 8

Exceptions

Until December 31, 2025, the dimensional limits for Effective Wheelbase (6), Effective Rear Overhang (12) and Rear Tandem Axle Track Width (35) do not apply if the truck, other than a concrete mixer fitted with a revolving drum, was built before July 1, 2011.  In the case of a concrete mixer fitted with a revolving drum that was built before July 1, 2011, these dimensional limits do not apply on or before December 31, 2030.

In the case of a truck drawing a trailer, until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply on or before December 31, 2025, if either the truck or the trailer it is drawing was built before July 1, 2011 or if both were built before July 1, 2011.

An overhanging boom of a rear-facing crane that extends 1.0 metre or less past the rearmost point of the truck is exempt from the dimensional limit for Effective Rear Overhang (12).

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Truck

(1)

Length

Max. 12.5m

Truck

(2)

Width

Max. 2.6m

Truck

(3)

Height

Max. 4.15m

Truck

(4)

Inter-axle Spacing

Not controlled

Truck

(5)

Rear Tandem Axle Spread

1.2 to 1.88m

Truck

(6)

Effective Wheelbase

Min. 5.3m

Truck

(12)

Effective Rear Overhang

Max. 4.0m

Truck

(20)

Box Length

Not controlled

Truck

(30)

Front Tandem Axle Spread

1.2 to 2.7m

Truck

(32)

Hitch Offset (if drawing trailer)

Max. 1.8m

Truck

(35)

Rear Tandem Axle Track Width

2.4 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 10,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Tandem Axle by axle spread:



– 1.2 < 1.6m

17,000 kg



– 1.6 to 2.7m

18,000 kg

Other Axle Maximums:  (lowest of a, b and c)

  a)   by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Tandem Axle by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.88m (Single Tires)

18,000 kg



– 1.8 to 1.88m (Dual Tires)

19,100 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii.



– 32,000 kg if the truck is drawing a trailer or has a wheelbase of 5.3 < 6.0m



– 37,100 kg if the truck has a wheelbase of 6.0m or greater and is not drawing a trailer

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 25; O. Reg. 8/16, s. 7.

schedule 23
designated truck 5 — self-steer triaxle truck

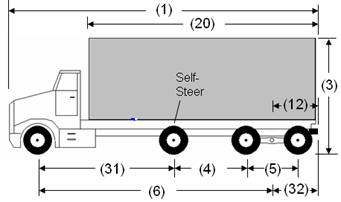

Illustration of Designated Truck 5, a 4-axle truck, as described below.

Vehicle Description

Designated Truck 5 is a 4-axle truck with a front single axle, a self-steer liftable pusher axle and a rear tandem drive axle.

Qualifying Preconditions

Weight, see s. 14

The front axle weight must be at least 23 per cent of the gross vehicle weight at all times.  The liftable axle must not be deployed if the resulting weight on the axle is less than 4,000 kilograms.

Equipment and components, see ss. 5, 8, 9.

Labelling, see s. 13.

Exceptions

Until December 31, 2025, the dimensional limits for Effective Rear Overhang (12) and Tandem Axle Track Width (35) do not apply if the truck was built before July 1, 2011.

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if either the truck or the trailer it is drawing was built before July 1, 2011 or if both were built before July 1, 2011.

An overhanging boom of a rear-facing crane that extends 1.0 metre or less past the rearmost point of the truck is exempt from the dimensional limit for Effective Rear Overhang (12).

Alternatives

A truck that meets every requirement to be Designated Truck 5 except that the liftable axle of the truck is not deployed is Designated Truck 2.

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Truck

(1)

Length

Max. 12.5m

Truck

(2)

Width

Max. 2.6m

Truck

(3)

Height

Max. 4.15m

Truck

(31)

Inter-axle Spacing

Not controlled

Truck

(4)

Inter-axle Spacing

2.51 to 2.8m

Truck

(5)

Tandem Axle Spread

1.2 to 1.88m

Truck

(6)

Wheelbase

Min. 6.4m, if Tandem Axle Spread (5) is 1.2 < 1.8m

Truck

(6)

Wheelbase

Min. 6.85m, if Tandem Axle Spread (5) is 1.8 to 1.88m

Truck

(12)

Effective Rear Overhang

Max. 4.0m

Truck

(20)

Box Length

Not controlled

Truck

(32)

Hitch Offset (if drawing trailer)

Max. 1.8m

Truck

(35)

Tandem Axle Track Width

2.4 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified); or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

9,000 kg

Other Axles Maximums:  (lowest of a, b and c)



  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

i. If tandem axle spread is 1.2 < 1.8m or there are single tires on any wheel:



1. self-steer axle (load equalized)

9,000 kg



2. self-steer axle (not load equalized)

7,500 kg



3. tandem drive axle (load equalized)

18,000 kg



4. tandem drive axle (not load equalized)

15,000 kg



  ii. If tandem axle spread is 1.8 to 1.88m and there are no single tires on any wheel:



1. self-steer axle (load equalized)

9,550 kg



2. self-steer axle (not load equalized)

8,000 kg



3. tandem drive axle (load equalized)

19,100 kg



4. tandem drive axle (not load equalized)

16,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus the other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 5; O. Reg. 16/14, s. 26; O. Reg. 8/16, s. 8.

schedule 24
designated truck 6 — tri-drive 4-axle truck

Illustration of Designated Truck 6, a 4-axle truck, as described below.

Vehicle Description

Designated Truck 6 is a 4-axle truck with a front single axle and a rear tri-drive axle.

Qualifying Preconditions

Weight – The front axle weight must be at least 23 per cent of the gross vehicle weight at all times.

Equipment and components, see ss. 5, 8, 11

Exceptions

Until December 31, 2025, the dimensional limits for Wheelbase (6), Effective Rear Overhang (12), Hitch Offset (32) and Rear Tandem Axle Track Width (35) do not apply if the truck was built before July 1, 2011.

An overhanging boom of a rear-facing crane that extends 1.0 metre or less past the rearmost point of the truck is exempt from the dimensional limit for Effective Rear Overhang (12).

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Truck

(1)

Length

Max. 12.5m

Truck

(2)

Width

Max. 2.6m

Truck

(3)

Height

Max. 4.15m

Truck

(4)

Inter-axle Spacing

Not controlled

Truck

(5)

Tridem Axle Spread

2.4 to 2.8m

Truck

(6)

Wheelbase

Min. 6.6m

Truck

(12)

Effective Rear Overhang

Max. 4.0m

Truck

(20)

Box Length

Not controlled

Truck

(32)

Hitch Offset (if drawing trailer)

Max. 2.5m

Truck

(35)

Tridem Track Width

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

9,000 kg

Other Axles Maximums:  (lowest of a, b and c)

  a)   by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b)   by tire width

10 kg × combined tire widths in mm

  c)   by axle unit description

Tridem Axle by axle spread:



– 2.4 < 2.7m

21,300 kg



– 2.7 to 2.8m

22,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus the other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 6; O. Reg. 16/14, s. 27.

SCHEDULE 25
DESIGNATED TRUCK 7 — TWIN STEER TRI-DRIVE 5-AXLE TRUCK

Illustration of Designated Truck 7, a 5-axle truck, as described below.

Vehicle Description

Designated Truck 7 is a 5-axle truck with a front tandem axle and a rear tri-drive axle.

Qualifying Preconditions

Weight – Front axle weight must be at least 23 per cent of the gross vehicle weight at all times.

Equipment and components, see ss. 5, 8, 11

Exceptions

Until December 31, 2025, the dimensional limits for Wheelbase (6), Effective Rear Overhang (12), Hitch Offset (32) and Rear Tandem Axle Track Width (35) do not apply if the truck was built before July 1, 2011.

An overhanging boom of a rear-facing crane that extends 1.0 metre or less past the rearmost point of the truck is exempt from the dimensional limit for Effective Rear Overhang (12).

Dimensional Limit CHART



Vehicle

Ref.

Feature

Dimensional Limit

Truck

(1)

Length

Max. 12.5m

Truck

(2)

Width

Max. 2.6m

Truck

(3)

Height

Max. 4.15m

Truck

(4)

Inter-axle Spacing

Not controlled

Truck

(5)

Tridem Axle Spread

2.4 to 2.8m

Truck

(6)

Effective wheelbase

Min. 6.0m

Truck

(12)

Effective Rear Overhang

Max. 4.0m

Truck

(20)

Box Length

Not controlled

Truck

(30)

Front Tandem Axle Spread

1.2 to 2.7m

Truck

(32)

Hitch Offset (if drawing trailer)

Max. 2.5m

Truck

(35)

Tridem Track Width

2.5 to 2.6m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified); or



  ii. If GAWR not verified, the lower of:



1.   10,000 kg, and



2.   the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Tandem Axle by axle spread:



– 1.2 < 1.6m

17,000 kg



– 1.6 to 2.7m

18,000 kg

Other Axles Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Tridem Axle by axle spread



– 2.4 < 2.7m

21,300 kg



– 2.7 to 2.8m

22,000 kg

Allowable Gross Vehicle Weight:

actual weight on the front axle plus the other axle maximums

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 7; O. Reg. 16/14, s. 28.

SCHEDULE 26
DESIGNATED TRUCK-trailer combination 1 — truck and fixed axle pony trailer

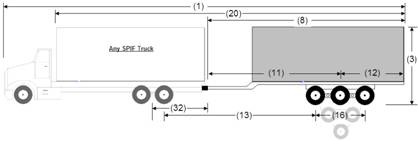

Illustration of Designated Truck-Trailer Combination 1 with truck and pony trailer with one axle unit, as described below.

Configuration Description

Designated Truck-Trailer Combination 1 is composed of any designated truck and a pony trailer with one axle unit. The pony trailer’s axle unit may be a single axle, tandem axle or tridem axle. The trailer has a single drawbar.

Qualifying Preconditions

Equipment and components for trailer, see ss. 5, 6, 8

Exceptions

If the trailer has a manufacturer’s gross vehicle weight rating of less than 10,000 kilograms, the dimensional limits for Wheelbase (11), Inter-vehicle-unit Distance (13) and Track Width (19) do not apply.

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if the truck was built before July 1, 2011.

Until December 31, 2025, the dimensional limits for Wheelbase (11), Effective Rear Overhang (12), Inter-vehicle-unit Distance (13), Track Width (19) and Box Length (20) do not apply if the trailer was built before July 1, 2011.

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Truck

na

Designated Trucks 1-7

Refer to Schedules 19-25

Pony Trailer

(8)

Length

Max. 12.5m

Pony Trailer

(11)

Wheelbase — single axle trailer

Min. 4.0m

Pony Trailer

(11)

Wheelbase — tandem and tridem trailer

Min. 6.25m

Pony Trailer

(12)

Effective Rear Overhang

Max. 4.0m

Pony Trailer

(13)

Inter-vehicle-unit Distance between single and single, tandem, or tridem

Min. 3.0m

Pony Trailer

(13)

Inter-vehicle-unit Distance between tandem and tandem

Min. 5.0m

Pony Trailer

(13)

Inter-vehicle-unit Distance between tandem and tridem

Min. 5.5m

Pony Trailer

(13)

Inter-vehicle-unit Distance between tridem and tridem

Min. 6.0m

Pony Trailer

(16)

Tandem Spread

1.2 to 1.85m

Pony Trailer

(16)

Tridem Spread

2.4 to 3.7m

Pony Trailer

(19)

Track Width — single tires

2.45 to 2.6m

Pony Trailer

(19)

Track Width — dual tires

2.5 to 2.6m

Pony Trailer

(20)

Box Length

Max. 20m

Pony Trailer

(32)

Hitch Offset — single or tandem drive truck

Max. 1.8m

Pony Trailer

(32)

Hitch Offset — tridem drive truck

Max. 2.5m

WEIGHT LIMIT CHART



Feature

Weight Limit

Truck Weights – See Appropriate Weight Limit Chart (Schedules 19-25)

Trailer Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg



Tandem Axle by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg



Tridem Axle by axle spread:



– 2.4 < 3.0m

21,300 kg



– 3.0 < 3.6m

24,000 kg



– 3.6 to 3.7m

26,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. AGVW of Designated Truck plus trailer axle maximums



  ii.



Until December 31, 2025,



  1. if trailer is built before July, 2011, the weight in Vehicle Weight Table 30



  2. if trailer is built after June, 2011, has a tridem axle, a wheelbase less than 8.75m and is drawn by Designated Truck 1, 37,350 kg



  3. if neither 1 nor 2 applies,



A. if trailer wheelbase is less than 8.75m, the weight in Vehicle Weight Table 31



B. if trailer wheelbase is 8.75m or greater, the weight in Vehicle Weight Table 30



After 2025,



  1. if trailer has a tridem axle, a wheelbase less than 8.75m and is drawn by Designated Truck 1, 37,350 kg



  2. if 1 does not apply,



A. if trailer wheelbase is less than 8.75m, the weight in Vehicle Weight Table 31



B. if trailer wheelbase is 8.75m or greater, the weight in Vehicle Weight Table 30

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 8; O. Reg. 16/14, s. 29.

SCHEDULE 27
DESIGNATED TRUCK-TRAILER COMBINATION 2 – TRUCK AND SELF-STEER TRIAXLE PONY TRAILER

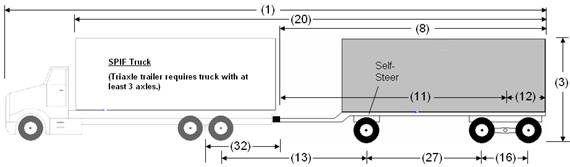

Illustration of Designated Truck-Trailer Combination 2 with truck and self-steer triaxle pony trailer, as described below.

Configuration Description

Designated Truck-Trailer Combination 2 is composed of a designated truck, other than Designated Truck 1, and a self-steer triaxle pony trailer. The trailer has a single drawbar.  The trailer has two axle units: an optionally liftable single self-steer axle in front and a tandem axle in the rear.

Qualifying Preconditions

Weight, see s. 14

Equipment and components, see ss. 5, 6, 8, 9

Labelling, see s. 13

Alternatives

A truck-trailer combination that meets every requirement to be Designated Truck-Trailer Combination 2, except that the liftable axle of the trailer is not deployed, shall be deemed to be Designated Truck-Trailer Combination 1.

Exceptions

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if the truck was built before July 1, 2011.

Until December 31, 2025, the dimensional limits for Wheelbase (11), Effective Rear Overhang (12), Inter-vehicle-unit Distance (13), Track Width (19) and Box Length (20) do not apply if the trailer was built before July 1, 2011.

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Truck

na

Designated Trucks 2-7

Refer to Schedules 20-25

Self-Steer Trailer

(8)

Length

Max. 12.5m

Self-Steer Trailer

(11)

Wheelbase

Min. 7.0m

Self-Steer Trailer

(12)

Effective Rear Overhang

Max. 4.0m

Self-Steer Trailer

(13)

Inter-vehicle-unit Distance

Min. 3.0m

Self-Steer Trailer

(16)

Tandem Spread

1.2 to 1.85m

Self-Steer Trailer

(19)

Track Width of tandem axle — single tires

2.45 to 2.6m

Self-Steer Trailer

(19)

Track Width of tandem axle — dual tires

2.5 to 2.6m

Self-Steer Trailer

(20)

Box Length

Max. 20m

Self-Steer Trailer

(27)

Inter-Axle Spacing

> 2.5m

Self-Steer Trailer

(32)

Hitch Offset — tandem drive truck

Max. 1.8m

Self-Steer Trailer

(32)

Hitch Offset — tridem drive truck

Max. 2.5m

WEIGHT LIMIT CHART



Truck Weights – See Appropriate Weight Limit Chart (Schedules 20-25)

Trailer Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified the sum of the maximum tire load ratings,

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

i. If tandem axle spread is 1.2 < 1.8m or there are single tires on any wheel:



1. self-steer axle (load equalized)

9,000 kg



2. self-steer axle (not load equalized)

7,500 kg



3. tandem axle (load equalized)

18,000 kg



4. tandem axle (not load equalized)

15,000 kg



  ii. If tandem axle spread is 1.8 to 1.85m and there are no single tires on any wheel:



1. self-steer axle (load equalized)

9,550 kg



2. self-steer axle (not load equalized)

8,000 kg



3. tandem axle (load equalized)

19,100 kg



4. tandem axle (not load equalized)

16,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. AGVW of Designated Truck plus trailer axle maximums



  ii. the maximum weight in Vehicle Weight Table 30

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 9; O. Reg. 16/14, s. 30.

SCHEDULE 28
DESIGNATED TRUCK-TRAILER COMBINATION 3 – TRUCK AND FULL TRAILER

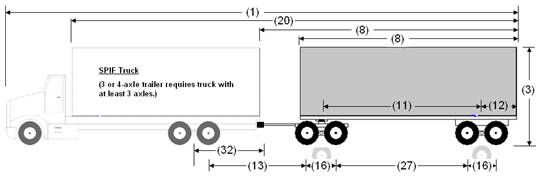

Illustration of Designated Truck-Trailer Combination 3 with truck and 2-axle full trailer, as described below

Configuration Description

Designated Truck-Trailer Combination 3 is composed of a Designated Truck 1 combined with a 2-axle full trailer or a Designated Truck 2, 3, 4, 5, 6, or 7 combined with a 2, 3 or 4-axle full trailer.

The trailer has a single drawbar connected to a front turntable or trailer converter dolly and has two axle units consisting of a single axle in front of a rear single axle, a single axle in front of a rear tandem axle or a tandem axle in front of a rear tandem axle.

Qualifying Preconditions

Equipment and components, see ss. 5, 6, 8

Exceptions

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if the truck was built before July 1, 2011.

Until December 31, 2025, the dimensional limits for Wheelbase (11), Effective Rear Overhang (12), Inter-vehicle-unit Distance (13), Track Width (19), Box Length (20) and Inter-Axle Spacing (27) do not apply if the trailer was built before July 1, 2011.

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Truck

na

Designated Trucks 1-7

Refer to Schedules 19-25

Full Trailer

(8)

Length

Not controlled

Full Trailer

(8)

Length (excluding the drawbar)

Max. 12.5m

Full Trailer

(11)

Wheelbase

Min. 6.25m

Full Trailer

(12)

Effective Rear Overhang

Max. 4.0m

Full Trailer

(13)

Inter-vehicle-unit Distance between single and single, tandem, or tridem

Min. 3.0m

Full Trailer

(13)

Inter-vehicle-unit Distance between tandem and tandem

Min. 5.0m

Full Trailer

(13)

Inter-vehicle-unit Distance between tandem and tridem

Min. 5.5m

Full Trailer

(16)

Tandem Spread

1.2 to 1.85m

Full Trailer

(16)

Track Width — single tires

2.45 to 2.6m

Full Trailer

(16)

Track Width — dual tires

2.5 to 2.6m

Full Trailer

(20)

Box Length

Max. 20m

Full Trailer

(27)

Inter-Axle Spacing

Min. 5.0m

Full Trailer

(32)

Hitch Offset — single or tandem drive truck

Max. 1.8m

Full Trailer

(32)

Hitch Offset — tridem drive truck

Max. 2.5m

WEIGHT LIMIT CHART



Feature

Weight Limit

Truck Weights

Refer to Appropriate Weight Limit Chart (Schedules 19-25)

Trailer Axle Maximums:  (lowest of a, b and c)



  a) by manufacturer’s axle rating or default

i. GAWR, if verified



  ii. If GAWR not verified, the sum of the maximum tire load ratings, as specified on the tire side walls.

  b) by tire width

10 kg × combined tire widths in mm



  c) by axle unit description

Single Axle (Single tires)

9,000 kg



Single Axle (Dual tires)

9,100 kg



Tandem Axle

18,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. AGVW of Designated Truck plus trailer axle maximums



  ii.



Until December 31, 2025,



  1. if trailer is built before July 2011, the weight in Vehicle Weight Table 30



  2. if trailer is built after June 2011 and



A. trailer wheelbase is less than 7.25m, the weight in Vehicle Weight Table 31



B. trailer wheelbase is 7.25m or greater, the weight in Vehicle Weight Table 30



After 2025,



  1. if trailer wheelbase is less than 7.25m, the weight in Vehicle Weight Table 31



  2. if trailer wheelbase is 7.25m or greater, the weight in Vehicle Weight Table 30

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 10; O. Reg. 16/14, s. 31.

SCHEDULE 29
DESIGNATED TRUCK-TRAILER COMBINATION 4 – TRUCK AND SELF-STEER TRIAXLE FULL TRAILER

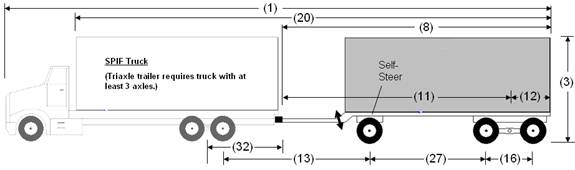

Illustration of Designated Truck-Trailer Combination 4 with truck and self-steer triaxle full trailer, as described below.

Configuration Description

Designated Truck-Trailer Combination 4 is composed of Designated Truck 2, 3, 4, 5, 6 or 7 combined with a self-steer triaxle full trailer. A single drawbar is rigidly attached to the structure of the trailer horizontally, but hinges vertically so that the whole of the trailer weight is carried on its own axles.  The trailer has two axle units composed of a single, non-liftable self-steer axle ahead of a tandem axle.

Qualifying Preconditions

Equipment and components, see ss. 5, 6, 8, 9

Labelling, see s. 13

Exceptions

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if the truck was built before July 1, 2011.

Until December 31, 2025, the dimensional limits for Wheelbase (11), Effective Rear Overhang (12), Inter-vehicle-unit Distance (13), Track Width (19) and Box Length (20) do not apply if the trailer was built before July 1, 2011.

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Truck

na

Designated Trucks 2-7

Refer to Schedules 20-25

Self-Steer Trailer

(8)

Length

Max. 12.5m

Self-Steer Trailer

(11)

Wheelbase

Min 7.0m

Self-Steer Trailer

(12)

Effective Rear Overhang

Max. 4.0m

Self-Steer Trailer

(13)

Inter-vehicle-unit Distance

Min. 3.0m

Self-Steer Trailer

(16)

Tandem Spread

1.2 to 1.85m

Self-Steer Trailer

(19)

Track Width of tandem axle — single tires

2.45 to 2.6m

Self-Steer Trailer

(19)

Track Width of tandem axle — dual tires

2.5 to 2.6m

Self-Steer Trailer

(20)

Box Length

Max. 20m

Self-Steer Trailer

(27)

Inter-Axle Spacing

Min. 3.0m

Self-Steer Trailer

(32)

Hitch Offset — tandem drive truck

Max. 1.8m

Self-Steer Trailer

(32)

Hitch Offset — tridem drive truck

Max. 2.5m

WEIGHT LIMIT CHART



Feature

Weight Limit

Truck Axle Weights

Refer to Schedules 20-25 for Designated Truck

Trailer Axle Maximums:  (lowest of a, b and c)



  a) by manufacturer’s axle rating or default

i. GAWR (if verified)



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Self-steer axle

11 kg × combined tire widths in mm



Not self-steer axle

10 kg × combined tire widths in mm

  c) by axle unit description

Self-steer axle (single tires)

9,000 kg



Self-steer axle (dual tires)

9,550 kg



Tandem Axle – by axle spread:



– 1.2 < 1.8 m

18,000 kg



– 1.8 to 1.85m (Single Tires)

18,000 kg



– 1.8 to 1.85m (Dual Tires)

19,100 kg

Allowable Gross Vehicle Weight : (lower of i and ii)

i. AGVW of the Designated Truck plus trailer axle maximums



  ii. the weight in Vehicle Weight Table 30.

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 11; O. Reg. 16/14, s. 32.

SCHEDULE 30
DESIGNATED TRUCK-TRAILER COMBINATION 5 — TRUCK AND TRIDEM-AXLE FULL TRAILER

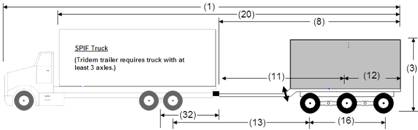

Illustration of Designated Truck-Trailer Combination 5 with truck and tridem-axle full trailer, as described below.

Configuration Description

Designated Truck-Trailer Combination 5 is composed of a Designated Truck 2, 3, 4, 5, 6 or 7 combined with a tridem-axle full trailer. A single drawbar is rigidly attached to the structure of the trailer horizontally, but hinges vertically so that the whole of the trailer weight is carried on its own axles.

Qualifying Preconditions

Equipment and components, see ss. 5, 6, 8

Exceptions

Until December 31, 2025, the dimensional limit for Hitch Offset (32) does not apply if the truck was built before 2011.

Until December 31, 2025, the dimensional limits for Wheelbase (11), Effective Rear Overhang (12), Inter-vehicle-unit Distance (13), Track Width (19), and Box Length (20) do not apply if the trailer was built before 2011.

Dimensional Limit Chart



Part

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Truck

na

Designated Trucks 2-7

Refer to Schedules 20-25

Tridem Trailer

(8)

Length

Max. 12.5m

Tridem Trailer

(11)

Wheelbase

Min. 6.25m

Tridem Trailer

(12)

Effective Rear Overhang

Max. 4.0m

Tridem Trailer

(13)

Inter-vehicle-unit Distance between tandem and tridem

Min. 5.5m

Tridem Trailer

(13)

Inter-vehicle Distance between tridem and tandem

Min. 6.0m

Tridem Trailer

(16)

Tridem Spread

2.4 to 3.7m

Tridem Trailer

(19)

Track Width — single tires

2.45 to 2.6m

Tridem Trailer

(19)

Track Width — dual tires

2.5 to 2.6m

Tridem Trailer

(20)

Box Length

Max. 20m

Tridem Trailer

(32)

Hitch Offset — tandem drive truck

Max. 1.8m

Tridem Trailer

(32)

Hitch Offset — tridem drive truck

Max. 2.5m

WEIGHT LIMIT CHART



Feature

Weight Limit

Truck Weights

Refer to Appropriate Weight Limit Chart (Schedules 20-25)

Trailer Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings specified on tire side walls

  b) by tire width

10 kg × combined tire widths in mm

  c) by axle unit description

Tridem Axle by axle spread:



– 2.4 < 3.0m

21,300 kg



– 3.0 < 3.6m

24,000 kg



– 3.6 to 3.7m

26,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. AGVW of Designated Truck plus the maximum allowable weights of all axles of trailer



  ii.



Until December 31, 2025,



  1. if trailer is drawn by Designated Truck 3, the weight in Vehicle Weight Table 31



  2. if trailer is built before July 2011 and is drawn by a designated truck other than Designated Truck 3, the weight in Vehicle Weight Table 30



  3. if neither 1 nor 2 applies,



A. if trailer wheelbase is less than 8.75m, the weight in Vehicle Weight Table 31



B. if trailer wheelbase is 8.75m or greater, the weight in Vehicle Weight Table 30



After 2025,



  1. if trailer is drawn by Designated Truck 3 or has wheelbase less than 8.5m, the weight in Vehicle Weight Table 31



  2. if trailer is not drawn by Designated Truck 3 and has wheelbase of 8.75m or greater, the weight in Vehicle Weight Table 30

O. Reg. 457/10, s. 29; O. Reg. 167/12, s. 12; O. Reg. 16/14, s. 33.

SCHEDULE 31
DESIGNATED saddlemount combination

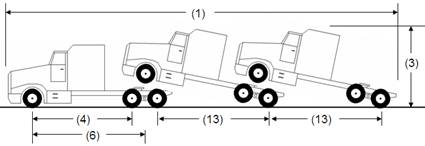

Illustration of Designated Saddlemount Combination as described below.

Configuration Description

A Designated Saddlemount Combination is composed of tractors, trucks or both.  The second and any subsequent vehicle is connected to the vehicle ahead by means of a saddlemount device which performs as a fifth wheel assembly.  The combination consists of two or three motor vehicles whose wheels are in contact with the highway.  Only the rearmost such vehicle may carry an additional vehicle whose wheels do not contact the highway.

Qualifying Preconditions

Equipment and components, see ss. 5, 8

Exceptions

A Saddlemount Combination is exempt from the Overall Length (1) and Height (3) limits set out in the Dimension Limit Chart below if all vehicles in the combination (including any fully loaded vehicle) face forward.  The following limits apply to exempted Saddlemount Combinations:

Overall Length (1) – 25m

Height (3) – 4.3m.

Dimensional Limit Chart



Vehicle

Ref.

Feature

Dimensional Limit

Overall

(1)

Overall Length

Max. 23m

Overall

(2)

Width

Max. 2.6m

Overall

(3)

Height

Max. 4.15m

Lead Tractor or Truck

(4)

Inter-axle Spacing

Min. 3.0m

Lead Tractor or Truck

(6)

Wheelbase

Not controlled

Drawn Tractors or Trucks

(13)

Inter-vehicle-unit Distance

Min. 3.0m

WEIGHT LIMIT CHART



Feature

Weight Limit

Front Axle Maximum:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified); or



  ii. If GAWR not verified, the lower of:



1. 5,000 kg, and



2. the sum of the maximum tire load ratings

  b) by tire width

11 kg × combined tire widths in mm

  c) by axle unit description

Single Axle

7,700 kg

Other Axles Maximums:  (lowest of a, b and c)

  a) by manufacturer’s axle rating or default

i. GAWR (if verified), or



  ii. If GAWR not verified, the sum of the maximum tire load ratings

  b) by tire width

Front axle (towed vehicle) 11 kg × combined tire widths in mm

Not front axle (lead or towed vehicle) 10 kg × combined tire widths in mm

  c) by axle unit description

Lead Tractor or Truck and drawn Tractors or Trucks:



Single Axle (Single Tires)

9,000 kg



Single Axle (Dual Tires)

10,000 kg



Tandem Axle – by axle spread:



– 1.2 < 1.8m

18,000 kg



– 1.8 m or more (SingleTires)

18,000 kg



– 1.8 m or more (Dual Tires)

19,100 kg



Tridem Axle – by axle spread:



– 2.4 < 2.7m

21,300 kg



– 2.7 m or more

22,000 kg

Allowable Gross Vehicle Weight: (lower of i and ii)

i. actual weight on the front axle plus other axle maximums



  ii. 63,500 kg

O. Reg. 457/10, s. 29; O. Reg. 16/14, s. 34.

vehicle weight table 1
allowable gross weight on a vehicle with three axles (kilograms)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

less than 4.00

22,600

22,900

23,100

23,400

23,600

23,800

24,000

24,200

24,400

24,700

25,000

4.00 to less than 4.10

22,900

23,200

23,400

23,700

23,900

24,100

24,300

24,500

24,700

25,000

25,300

4.10 to less than 4.20

23,300

23,600

23,800

24,100

24,300

24,500

24,700

24,900

25,100

25,400

25,700

4.20 to less than 4.30

23,600

23,900

24,100

24,400

24,600

24,800

25,000

25,200

25,400

25,700

26,000

4.30 to less than 4.40

23,800

24,200

24,400

24,700

24,900

25,100

25,300

25,500

25,700

26,000

26,300

4.40 to less than 4.50

23,800

24,300

24,800

25,100

25,300

25,500

25,700

25,900

26,100

26,400

26,700

4.50 to less than 4.60

23,800

24,300

24,800

25,300

25,600

25,800

26,000

26,200

26,400

26,700

27,000

4.60 to less than 4.70

23,800

24,300

24,800

25,300

25,800

26,100

26,300

26,500

26,700

27,000

27,300

4.70 to less than 4.80

23,800

24,300

24,800

25,300

25,800

26,300

26,700

26,900

27,100

27,400

27,700

4.80 to less than 4.90

23,800

24,300

24,800

25,300

25,800

26,300

26,800

27,200

27,400

27,700

28,000

4.90 to less than 5.00

23,800

24,300

24,800

25,300

25,800

26,300

26,800

27,300

27,700

28,000

28,400

5.00 and over

23,800

24,300

24,800

25,300

25,800

26,300

26,800

27,300

27,800

28,300

28,800

O. Reg. 413/05, Table 1.

vehicle weight table 2
allowable gross weight on a vehicle with FOUR axles (kilograms)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 5.00

28,600

28,900

29,100

29,400

29,600

29,800

30,100

30,300

30,500

30,800

31,000

5.00 to less than 5.25

29,100

29,400

29,600

29,900

30,200

30,400

30,700

30,900

31,100

31,400

31,600

5.25 to less than 5.50

29,600

29,900

30,100

30,400

30,700

30,900

31,300

31,500

31,700

32,100

32,300

5.50 to less than 5.75

30,000

30,400

30,600

31,000

31,300

31,500

31,900

32,100

32,400

32,700

33,000

5.75 to less than 6.00

30,500

30,900

31,200

31,500

31,800

32,100

32,400

32,700

33,000

33,300

33,600

6.00 to less than 6.25

31,000

31,400

31,700

32,000

32,400

32,700

33,000

33,300

33,600

34,000

34,300

6.25 to less than 6.50

31,500

31,900

32,200

32,600

32,900

33,200

33,600

33,900

34,300

34,600

34,900

6.50 to less than 6.75

32,000

32,400

32,700

33,100

33,500

33,800

34,200

34,500

34,900

35,200

35,500

6.75 to less than 7.00

32,500

32,900

33,200

33,600

34,000

34,400

34,800

35,100

35,500

35,900

36,200

7.00 to less than 7.25

33,000

33,400

33,700

34,100

34,600

35,000

35,400

35,700

36,100

36,500

36,900

7.25 to less than 7.50

33,300

33,800

34,200

34,600

35,100

35,500

35,900

36,300

36,700

37,200

37,600

7.50 and over

33,300

33,800

34,300

34,800

35,300

35,800

36,300

36,800

37,300

37,800

38,300

O. Reg. 413/05, Table 2.

vehicle weight table 3
allowable gross weight on a vehicle with FIVE axles (kilograms)
iNTER-VEHICLE-UNIT DISTANCE, LESS THAN 2.4 METRES
(OR INTRA-VEHICLE-UNIT DISTANCE)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 7.00

30,200

30,600

31,000

31,300

31,700

32,100

32,500

32,900

33,300

33,700

34,100

7.00 to less than 7.25

30,700

31,100

31,500

31,900

32,300

32,700

33,000

33,400

33,800

34,200

34,600

7.25 to less than 7.50

31,200

31,600

32,000

32,400

32,800

33,200

33,600

34,000

34,400

34,800

35,200

7.50 to less than 7.75

31,700

32,100

32,500

32,900

33,300

33,700

34,100

34,500

34,900

35,300

35,700

7.75 to less than 8.00

32,200

32,600

33,000

33,400

33,800

34,200

34,600

35,000

35,400

35,800

36,200

8.00 to less than 8.25

32,700

33,100

33,500

33,900

34,300

34,700

35,200

35,600

36,000

36,400

36,800

8.25 to less than 8.50

33,200

33,600

34,000

34,400

34,900

35,300

35,700

36,100

36,500

36,900

37,300

8.50 to less than 8.75

33,700

34,100

34,500

35,000

35,400

35,800

36,200

36,600

37,000

37,400

37,800

8.75 to less than 9.00

34,200

34,600

35,100

35,500

35,900

36,300

36,700

37,100

37,600

38,000

38,400

9.00 to less than 9.25

34,700

35,100

35,600

36,000

36,400

36,800

37,300

37,700

38,100

38,500

38,900

9.25 to less than 9.50

35,200

35,700

36,100

36,500

36,900

37,400

37,800

38,200

38,600

39,100

39,500

9.50 to less than 9.75

35,700

36,200

36,600

37,000

37,400

37,900

38,300

38,700

39,200

39,600

40,000

9.75 to less than 10.00

36,200

36,700

37,100

37,500

38,000

38,400

38,800

39,300

39,700

40,100

40,500

10.00 to less than 10.25

36,700

37,200

37,600

38,100

38,500

38,900

39,400

39,800

40,200

40,700

41,200

10.25 and over

36,700

37,200

37,700

38,200

38,700

39,200

39,700

40,200

40,700

41,200

41,700

O. Reg. 413/05, Table 3.

vehicle weight table 4
allowable gross weight on a vehicle with FIVE axles (kilograms)
iNTER-VEHICLE-UNIT DISTANCE, 2.4 METRES TO LESS THAN 2.7 METRES
(OR INTRA-VEHICLE-UNIT DISTANCE)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 7.25

31,700

32,100

32,500

32,900

33,200

33,600

34,000

34,400

34,700

35,100

35,500

7.25 to less than 7.50

32,200

32,600

33,000

33,400

33,800

34,100

34,500

34,900

35,300

35,600

36,000

7.50 to less than 7.75

32,700

33,100

33,500

33,900

34,300

34,700

35,100

35,400

35,800

36,200

36,600

7.75 to less than 8.00

33,200

33,600

34,000

34,400

34,800

35,200

35,600

36,000

36,400

36,700

37,100

8.00 to less than 8.25

33,700

34,100

34,500

34,900

35,300

35,700

36,100

36,500

36,900

37,300

37,700

8.25 to less than 8.50

34,200

34,600

35,000

35,400

35,800

36,200

36,600

37,000

37,400

37,800

38,200

8.50 to less than 8.75

34,800

35,200

35,600

36,000

36,400

36,800

37,200

37,600

38,000

38,400

38,800

8.75 to less than 9.00

35,300

35,700

36,100

36,500

36,900

37,300

37,700

38,100

38,500

38,900

39,300

9.00 to less than 9.25

35,800

36,200

36,600

37,000

37,400

37,800

38,200

38,700

39,100

39,500

39,900

9.25 to less than 9.50

36,300

36,700

37,100

37,500

37,900

38,400

38,800

39,200

39,600

40,000

40,400

9.50 to less than 9.75

36,800

37,200

37,600

38,000

38,500

38,900

39,300

39,700

40,200

40,600

41,000

9.75 to less than 10.00

37,300

37,700

38,100

38,600

39,000

39,400

39,800

40,200

40,600

41,000

41,400

10.00 to less than 10.25

37,800

38,200

38,700

39,100

39,500

39,900

40,300

40,700

41,100

41,400

41,800

10.25 to less than 10.50

37,800

38,300

38,800

39,300

39,800

40,300

40,700

41,100

41,500

41,900

42,300

10.50 and over

37,800

38,300

38,800

39,300

39,800

40,300

40,800

41,300

41,800

42,300

42,800

O. Reg. 413/05, Table 4.

vehicle weight table 5
allowable gross weight on a vehicle with FIVE axles (kilograms)
iNTER-VEHICLE-UNIT DISTANCE, 2.7 METRES TO LESS THAN 3.0 METRES
(OR INTRA-VEHICLE-UNIT DISTANCE)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 7.50

33,600

33,900

34,300

34,600

35,000

35,300

35,700

36,000

36,400

36,700

37,100

7.50 to less than 7.75

34,100

34,400

34,800

35,100

35,500

35,800

36,200

36,500

36,900

37,200

37,600

7.75 to less than 8.00

34,500

34,900

35,300

35,600

36,000

36,300

36,700

37,100

37,400

37,800

38,200

8.00 to less than 8.25

35,000

35,400

35,800

36,100

36,500

36,900

37,200

37,600

37,900

38,300

38,700

8.25 to less than 8.50

35,500

35,900

36,300

36,600

37,000

37,400

37,700

38,100

38,500

38,800

39,200

8.50 to less than 8.75

36,000

36,400

36,700

37,100

37,500

37,900

38,200

38,600

39,000

39,400

39,700

8.75 to less than 9.00

36,400

36,800

37,200

37,600

38,000

38,400

38,800

39,100

39,500

39,900

40,300

9.00 to less than 9.25

36,900

37,300

37,700

38,100

38,500

38,900

39,300

39,700

40,000

40,400

40,800

9.25 to less than 9.50

37,400

37,800

38,200

38,600

39,000

39,400

39,800

40,200

40,600

41,000

41,400

9.50 to less than 9.75

37,900

38,300

38,700

39,100

39,500

39,900

40,300

40,700

41,100

41,500

41,900

9.75 to less than 10.00

38,400

38,800

39,200

39,600

40,000

40,400

40,800

41,200

41,600

42,000

42,400

10.00 to less than 10.25

38,900

39,300

39,700

40,100

40,500

40,900

41,300

41,700

42,100

42,500

42,900

10.25 to less than 10.50

39,100

39,600

40,100

40,600

41,000

41,400

41,800

42,300

42,700

43,100

43,600

10.50 and more

39,100

39,600

40,100

40,600

41,100

41,600

42,100

42,600

43,100

43,600

44,100

O. Reg. 413/05, Table 5.

vehicle weight table 6
allowable gross weight on a vehicle with FIVE axles (kilograms)
iNTER-VEHICLE-UNIT DISTANCE, 3.0 METRES TO LESS THAN 3.3 METRES
(OR INTRA-VEHICLE-UNIT DISTANCE)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 8.00

35,200

35,500

35,800

36,100

36,400

36,700

37,100

37,400

37,700

38,000

38,300

8.00 to less than 8.25

35,700

36,000

36,300

36,600

37,000

37,300

37,600

37,900

38,200

38,600

38,900

8.25 to less than 8.50

36,200

36,500

36,800

37,200

37,500

37,800

38,200

38,500

38,800

39,100

39,500

8.50 to less than 8.75

36,700

37,000

37,300

37,700

38,000

38,400

38,700

39,000

39,400

39,700

40,000

8.75 to less than 9.00

37,200

37,500

37,900

38,200

38,600

38,900

39,200

39,600

39,900

40,300

40,700

9.00 to less than 9.25

37,700

38,000

38,400

38,700

39,100

39,400

39,800

40,100

40,500

40,900

41,200

9.25 to less than 9.50

38,100

38,500

38,900

39,200

39,600

40,000

40,300

40,700

41,100

41,400

41,800

9.50 to less than 9.75

38,600

39,000

39,400

39,800

40,100

40,500

40,900

41,300

41,600

42,000

42,400

9.75 to less than 10.00

39,100

39,500

39,900

40,300

40,700

41,000

41,400

41,800

42,200

42,600

43,000

10.00 to less than 10.25

39,600

40,000

40,400

40,800

41,200

41,600

42,000

42,300

42,700

43,100

43,500

10.25 to less than 10.50

40,000

40,500

40,900

41,300

41,700

42,100

42,500

42,900

43,300

43,700

44,100

10.50 to less than 10.75

40,300

40,800

41,300

41,800

42,200

42,600

43,000

43,400

43,800

44,200

44,600

10.75 and over

40,300

40,800

41,300

41,800

42,300

42,800

43,300

43,800

44,300

44,800

45,300

O. Reg. 413/05, Table 6.

vehicle weight table 7
allowable gross weight on a vehicle with five axles (kilograms)
iNTER-VEHICLE-UNIT DISTANCE, 3.3 METRES TO LESS THAN 3.6 METRES
(OR INTRA-VEHICLE-UNIT DISTANCE)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 8.50

37,300

37,600

37,900

38,200

38,500

38,800

39,000

39,300

39,600

39,900

40,200

8.50 to less than 8.75

37,700

38,000

38,300

38,600

38,900

39,200

39,500

39,800

40,100

40,400

40,700

8.75 to less than 9.00

38,100

38,400

38,700

39,000

39,400

39,700

40,000

40,300

40,600

40,900

41,200

9.00 to less than 9.25

38,500

38,800

39,200

39,500

39,800

40,100

40,400

40,800

41,100

41,400

41,700

9.25 to less than 9.50

38,900

39,300

39,600

39,900

40,200

40,600

40,900

41,200

41,600

41,900

42,300

9.50 to less than 9.75

39,300

39,700

40,000

40,300

40,700

41,000

41,400

41,700

42,100

42,400

42,800

9.75 to less than 10.00

39,700

40,100

40,400

40,800

41,100

41,500

41,900

42,200

42,600

42,900

43,300

10.00 to less than 10.25

40,100

40,500

40,800

41,200

41,600

42,000

42,300

42,700

43,100

43,500

43,800

10.25 to less than 10.50

40,400

40,800

41,300

41,700

42,000

42,400

42,800

43,200

43,600

44,000

44,400

10.50 to less than 10.75

40,800

41,200

41,700

42,100

42,500

42,900

43,300

43,700

44,100

44,600

45,000

10.75 and over

40,900

41,400

41,900

42,400

42,900

43,400

43,800

44,200

44,700

45,100

45,500

O. Reg. 413/05, Table 7.

vehicle weight table 8
allowable gross weight on a vehicle with five axles (kilograms)
iNTER-VEHICLE-UNIT DISTANCE, 3.6 METRES or more
(OR INTRA-VEHICLE-UNIT DISTANCE)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 8.50

38,200

38,400

38,700

38,900

39,200

39,400

39,700

39,900

40,200

40,400

40,700

8.50to less than 8.75

38,500

38,800

39,000

39,300

39,600

39,800

40,100

40,400

40,700

40,900

41,200

8.75 to less than 9.00

38,800

39,100

39,400

39,700

40,000

40,300

40,600

40,900

41,200

41,400

41,700

9.00 to less than 9.25

39,100

39,400

39,700

40,000

40,400

40,700

41,000

41,300

41,600

41,900

42,200

9.25 to less than 9.50

39,400

39,800

40,100

40,400

40,800

41,100

41,500

41,800

42,100

42,400

42,700

9.50 to less than 9.75

39,700

40,100

40,400

40,800

41,200

41,600

41,900

42,200

42,600

42,900

43,200

9.75 to less than 10.00

40,000

40,400

40,800

41,200

41,600

42,000

42,400

42,700

43,100

43,400

43,800

10.00 to less than 10.25

40,400

40,800

41,200

41,600

42,000

42,400

42,800

43,200

43,600

43,900

44,300

10.25 to less than 10.50

40,700

41,100

41,500

42,000

42,400

42,800

43,200

43,600

44,000

44,400

44,800

10.50 to less than 10.75

41,000

41,400

41,800

42,400

42,800

43,200

43,700

44,100

44,500

44,900

45,300

10.75 to less than 11.00

41,400

41,800

42,200

42,700

43,200

43,700

44,100

44,600

45,000

45,500

45,900

11.00 to less than 11.25

41,700

42,200

42,600

43,100

43,600

44,100

44,500

45,000

45,500

46,000

46,500

11.25 to less than 11.50

42,000

42,500

43,000

43,500

44,000

44,500

45,000

45,500

46,000

46,500

47,000

11.50 to less than 11.75

42,500

43,000

43,500

44,000

44,500

45,000

45,500

46,000

46,500

47,000

47,500

11.75 and over

43,000

43,500

44,000

44,500

45,000

45,500

46,000

46,500

47,000

47,500

48,000

O. Reg. 413/05, Table 8.

vehicle weight table 9
allowable gross weight on a vehicle with six axles (kilograms)
inter-vehicle-unit distance, less than 2.1 metres
(or intra-vehicle-unit distance)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 9.50

35,800

36,100

36,400

36,800

37,100

37,400

37,700

38,100

38,400

38,700

39,000

9.50 to less than 9.75

36,400

36,700

37,000

37,300

37,600

38,000

38,300

38,600

38,900

39,300

39,600

9.75 to less than 10.00

36,900

37,200

37,600

37,900

38,200

38,500

38,900

39,200

39,500

39,800

40,200

10.00 to less than 10.25

37,500

37,800

38,100

38,400

38,800

39,100

39,400

39,700

40,100

40,400

40,800

10.25 to less than 10.50

38,000

38,400

38,700

39,000

39,300

39,700

40,000

40,300

40,600

41,000

41,300

10.50 to less than 10.75

38,600

38,900

39,200

39,600

39,900

40,200

40,500

40,900

41,200

41,500

41,800

10.75 to less than 11.00

39,100

39,500

39,800

40,100

40,500

40,800

41,100

41,400

41,800

42,100

42,400

11.00 to less than 11.25

39,700

40,000

40,400

40,700

41,000

41,300

41,700

42,000

42,300

42,700

43,000

11.25 to less than 11.50

40,300

40,600

40,900

41,300

41,600

41,900

42,200

42,600

42,900

43,200

43,500

11.50 to less than 11.75

40,800

41,200

41,500

41,800

42,100

42,500

42,800

43,100

43,500

43,800

44,100

11.75 to less than 12.00

41,400

41,700

42,000

42,400

42,700

43,000

43,400

43,700

44,000

44,400

44,700

12.00 to less than 12.25

41,900

42,300

42,600

42,900

43,300

43,600

43,900

44,300

44,600

44,900

45,300

12.25 to less than 12.50

42,500

42,800

43,200

43,500

43,800

44,200

44,500

44,800

45,200

45,500

45,800

12.50 to less than 12.75

43,100

43,400

43,700

44,100

44,400

44,700

45,100

45,400

45,700

46,000

46,400

12.75 to less than 13.00

43,600

44,000

44,300

44,600

45,000

45,300

45,600

45,900

46,300

46,600

46,900

13.00 to less than 13.25

44,200

44,500

44,800

45,200

45,500

45,800

46,200

46,500

46,800

47,200

47,500

13.25 to less than 13.50

44,700

45,100

45,400

45,700

46,100

46,400

46,700

47,100

47,400

47,700

48,000

13.50 to less than 13.75

45,300

45,600

46,000

46,300

46,600

47,000

47,300

47,600

48,000

48,300

48,600

13.75 to less than 14.00

45,900

46,200

46,500

46,900

47,200

47,500

47,900

48,200

48,500

48,900

49,200

14.00 to less than 14.25

46,400

46,800

47,100

47,400

47,800

48,100

48,400

48,800

49,100

49,400

49,700

14.25 to less than 14.50

47,000

47,300

47,600

48,000

48,300

48,700

49,000

49,300

49,700

50,000

50,300

14.50 to less than 14.75

47,500

47,900

48,200

48,500

48,900

49,200

49,600

49,900

50,200

50,600

50,900

14.75 to less than 15.00

48,200

48,500

48,800

49,200

49,500

49,800

50,200

50,500

50,900

51,200

51,500

15.00 and over

48,500

49,000

49,300

49,700

50,000

50,300

50,700

51,000

51,400

51,700

52,000

O. Reg. 413/05, Table 9.

vehicle weight table 10
allowable gross weight on a vehicle with six axles (kilograms)
inter-vehicle-unit distance, 2.1 metres to less than 2.4 metres
(or intra-vehicle-unit distance)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 9.50

37,000

37,300

37,600

37,900

38,200

38,500

38,900

39,200

39,500

39,800

40,100

9.50 to less than 9.75

37,500

37,800

38,100

38,500

38,800

39,100

39,400

39,700

40,000

40,400

40,700

9.75 to less than 10.00

38,100

38,400

38,700

39,000

39,300

39,600

40,000

40,300

40,600

40,900

41,200

10.00 to less than 10.25

38,600

38,900

39,200

39,600

39,900

40,200

40,500

40,800

41,200

41,500

41,800

10.25 to less than 10.50

39,200

39,500

39,800

40,100

40,400

40,800

41,100

41,400

41,700

42,000

42,300

10.50 to less than 10.75

39,700

40,000

40,400

40,700

41,000

41,300

41,600

41,900

42,300

42,600

42,900

10.75 to less than 11.00

40,300

40,600

40,900

41,200

41,500

41,900

42,200

42,500

42,800

43,100

43,400

11.00 to less than 11.25

40,800

41,100

41,500

41,800

42,100

42,400

42,700

43,100

43,400

43,700

44,100

11.25 to less than 11.50

41,400

41,700

42,000

42,300

42,600

43,000

43,300

43,600

43,900

44,300

44,600

11.50 to less than 11.75

41,900

42,200

42,600

42,900

43,200

43,500

43,800

44,200

44,500

44,800

45,100

11.75 to less than 12.00

42,500

42,800

43,100

43,400

43,800

44,100

44,400

44,700

45,000

45,400

45,700

12.00 to less than 12.25

43,000

43,300

43,700

44,000

44,300

44,600

45,000

45,300

45,600

45,900

46,200

12.25 to less than 12.50

43,600

43,900

44,200

44,500

44,900

45,200

45,500

45,800

46,200

46,500

46,800

12.50 to less than 12.75

44,100

44,400

44,800

45,100

45,400

45,700

46,100

46,400

46,700

47,000

47,300

12.75 to less than 13.00

44,700

45,000

45,300

45,600

46,000

46,300

46,600

46,900

47,300

47,600

47,900

13.00 to less than 13.25

45,200

45,500

45,900

46,200

46,500

46,800

47,200

47,500

47,800

48,100

48,400

13.25 to less than 13.50

45,800

46,100

46,400

46,700

47,100

47,400

47,700

48,100

48,400

48,700

49,000

13.50 to less than 13.75

46,300

46,600

47,000

47,300

47,600

48,000

48,300

48,600

48,900

49,300

49,600

13.75 to less than14.00

46,900

47,200

47,500

47,900

48,200

48,500

48,800

49,200

49,500

49,800

50,200

14.00 to less than 14.25

47,400

47,700

48,100

48,400

48,700

49,100

49,400

49,700

50,000

50,400

50,700

14.25 to less than 14.50

48,000

48,300

48,600

49,000

49,300

49,600

49,900

50,300

50,600

50,900

51,300

14.50 to less than 14.75

48,500

48,900

49,200

49,500

49,800

50,200

50,500

50,800

51,200

51,500

51,800

14.75 to less than 15.00

49,100

49,400

49,700

50,100

50,400

50,700

51,100

51,400

51,700

52,000

52,400

15.00 and over

49,400

49,900

50,300

50,700

51,000

51,300

51,600

52,000

52,300

52,600

53,000

O. Reg. 413/05, Table 10.

vehicle weight table 11
allowable gross weight on a vehicle with six axles (kilograms)
inter-vehicle-unit distance, 2.4 metres to less than 2.7 metres
(or intra-vehicle-unit distance)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 9.50

37,900

38,200

38,500

38,700

39,000

39,300

39,600

39,900

40,200

40,500

40,700

9.50 to less than 9.75

38,400

38,700

39,000

39,300

39,600

39,900

40,200

40,500

40,800

41,100

41,400

9.75 to less than 10.00

39,000

39,300

39,600

39,900

40,100

40,400

40,700

41,000

41,300

41,600

41,900

10.00 to less than 10.25

39,500

39,800

40,100

40,400

40,700

41,000

41,300

41,600

41,900

42,200

42,500

10.25 to less than 10.50

40,100

40,400

40,700

41,000

41,300

41,600

41,900

42,200

42,500

42,800

43,100

10.50 to less than 10.75

40,600

40,900

41,200

41,500

41,800

42,100

42,400

42,700

43,000

43,300

43,600

10.75 to less than 11.00

41,200

41,500

41,800

42,100

42,400

42,700

43,000

43,300

43,600

43,900

44,200

11.00 to less than 11.25

41,700

42,000

42,300

42,600

42,900

43,200

43,500

43,800

44,200

44,500

44,800

11.25 to less than 11.50

42,200

42,600

42,900

43,200

43,500

43,800

44,100

44,400

44,700

45,000

45,300

11.50 to less than 11.75

42,800

43,100

43,400

43,700

44,000

44,300

44,700

45,000

45,300

45,600

45,900

11.75 to less than 12.00

43,300

43,700

44,000

44,300

44,600

44,900

45,200

45,500

45,800

46,200

46,500

12.00 to less than 12.25

43,900

44,200

44,500

44,800

45,100

45,500

45,800

46,100

46,400

46,700

47,100

12.25 to less than 12.50

44,400

44,800

45,100

45,400

45,700

46,000

46,300

46,600

47,000

47,300

47,600

12.50 to less than 12.75

45,000

45,300

45,600

45,900

46,300

46,600

46,900

47,200

47,500

47,800

48,100

12.75 to less than 13.00

45,500

45,800

46,200

46,500

46,800

47,100

47,500

47,800

48,100

48,400

48,700

13.00 to less than 13.25

46,100

46,400

46,700

47,000

47,400

47,700

48,000

48,300

48,700

49,000

49,400

13.25 to less than 13.50

46,600

46,900

47,300

47,600

47,900

48,200

48,600

48,900

49,200

49,500

49,800

13.50 to less than 13.75

47,200

47,500

47,800

48,200

48,500

48,800

49,100

49,500

49,800

50,100

50,500

13.75 to less than 14.00

47,700

48,000

48,400

48,700

49,000

49,400

49,700

50,000

50,300

50,700

51,000

14.00 to less than 14.25

48,300

48,600

48,900

49,300

49,600

49,900

50,200

50,600

50,900

51,200

51,600

14.25 to less than 14.50

48,800

49,100

49,500

49,800

50,100

50,500

50,800

51,100

51,500

51,800

52,100

14.50 to less than 14.75

49,400

49,700

50,000

50,400

50,700

51,000

51,400

51,700

52,000

52,400

52,700

14.75 to less than 15.00

49,900

50,200

50,600

50,900

51,300

51,600

51,900

52,300

52,600

52,900

53,300

15.00 and over

50,300

50,800

51,200

51,500

51,800

52,200

52,500

52,800

53,200

53,500

53,800

O. Reg. 413/05, Table 11.

vehicle weight table 12
allowable gross weight on a vehicle with six axles (kilograms)
inter-vehicle-unit distance, 2.7 metres to less than 3.0 metres
(or intra-vehicle-unit distance)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 9.50

38,500

38,800

39,100

39,400

39,700

40,000

40,200

40,500

40,800

41,100

41,400

9.50 to less than 9.75

39,100

39,400

39,700

39,900

40,200

40,500

40,800

41,100

41,400

41,700

41,900

9.75 to less than 10.00

39,600

39,900

40,200

40,500

40,800

41,100

41,400

41,700

42,000

42,200

42,500

10.00 to less than 10.25

40,200

40,500

40,800

41,100

41,400

41,600

41,900

42,200

42,500

42,800

43,100

10.25 to less than 10.50

40,700

41,000

41,300

41,600

41,900

42,200

42,500

42,800

43,100

43,400

43,700

10.50 to less than 10.75

41,300

41,600

41,900

42,200

42,500

42,800

43,100

43,400

43,700

43,900

44,200

10.75 to less than 11.00

41,800

42,100

42,400

42,700

43,000

43,300

43,600

43,900

44,200

44,500

44,800

11.00 to less than 11.25

42,400

42,700

43,000

43,300

43,600

43,900

44,200

44,500

44,800

45,100

45,400

11.25 to less than 11.50

43,000

43,300

43,600

43,900

44,200

44,500

44,800

45,100

45,400

45,700

46,000

11.50 to less than 11.75

43,500

43,800

44,100

44,400

44,700

45,000

45,300

45,600

45,900

46,200

46,500

11.75 to less than 12.00

44,100

44,400

44,700

45,000

45,300

45,600

45,900

46,200

46,500

46,800

47,100

12.00 to less than 12.25

44,600

44,900

45,200

45,500

45,800

46,100

46,400

46,800

47,100

47,400

47,800

12.25 to less than 12.50

45,200

45,500

45,800

46,100

46,400

46,700

47,000

47,300

47,600

47,900

48,200

12.50 to less than 12.75

45,700

46,000

46,300

46,600

47,000

47,300

47,600

47,900

48,200

48,500

48,800

12.75 to less than 13.00

46,300

46,600

46,900

47,200

47,500

47,800

48,100

48,400

48,800

49,100

49,400

13.00 to less than 13.25

46,800

47,100

47,400

47,800

48,100

48,400

48,700

49,000

49,300

49,600

49,900

13.25 to less than 13.50

47,400

47,700

48,000

48,300

48,600

48,900

49,300

49,600

49,900

50,200

50,500

13.50 to less than 13.75

47,900

48,200

48,600

48,900

49,200

49,500

49,800

50,100

50,500

50,800

51,100

13.75 to less than 14.00

48,500

48,800

49,100

49,400

49,700

50,100

50,400

50,700

51,000

51,400

51,700

14.00 to less than 14.25

49,000

49,300

49,700

50,000

50,300

50,600

51,000

51,300

51,600

51,900

52,300

14.25 to less than 14.50

49,600

49,900

50,200

50,500

50,900

51,200

51,500

51,800

52,200

52,500

52,800

14.50 to less than 14.75

50,100

50,400

50,800

51,100

51,400

51,800

52,100

52,400

52,700

53,100

53,400

14.75 to less than 15.00

50,700

51,000

51,300

51,700

52,000

52,300

52,600

53,000

53,300

53,600

54,000

15.00 and over

51,200

51,500

51,800

52,200

52,500

52,800

53,200

53,500

53,900

54,200

54,500

O. Reg. 413/05, Table 12.

vehicle weight table 13
allowable gross weight on a vehicle with six axles (kilograms)
inter-vehicle-unit distance, 3.0 metres to less than 3.3 metres
(or intra-vehicle-unit distance)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 9.50

39,200

39,500

39,700

40,000

40,300

40,600

40,900

41,200

41,500

41,800

42,100

9.50 to less than 9.75

39,700

40,000

40,300

40,600

40,900

41,200

41,500

41,800

42,100

42,400

42,700

9.75 to less than 10.00

40,300

40,600

40,800

41,100

41,400

41,700

42,000

42,300

42,600

42,900

43,200

10.00 to less than 10.25

40,800

41,100

41,400

41,700

42,000

42,300

42,600

42,900

43,200

43,500

43,800

10.25 to less than 10.50

41,400

41,700

41,900

42,200

42,500

42,800

43,200

43,500

43,800

44,100

44,400

10.50 to less than 10.75

41,900

42,200

42,500

42,800

43,100

43,400

43,700

44,000

44,300

44,600

44,900

10.75 to less than 11.00

42,400

42,800

43,000

43,300

43,700

44,000

44,300

44,600

44,900

45,200

45,500

11.00 to less than 11.25

43,000

43,300

43,600

43,900

44,200

44,500

44,900

45,200

45,500

45,800

46,100

11.25 to less than 11.50

43,500

43,900

44,200

44,500

44,800

45,100

45,400

45,700

46,000

46,300

46,600

11.50 to less than 11.75

44,100

44,400

44,700

45,000

45,300

45,600

46,000

46,300

46,600

46,900

47,200

11.75 to less than 12.00

44,600

45,000

45,300

45,600

45,900

46,200

46,600

46,900

47,200

47,500

47,800

12.00 to less than 12.25

45,200

45,500

45,800

46,100

46,500

46,800

47,100

47,400

47,800

48,100

48,400

12.25 to less than 12.50

45,700

46,100

46,400

46,700

47,000

47,300

47,700

48,000

48,300

48,600

48,900

12.50 to less than 12.75

46,300

46,600

46,900

47,200

47,600

47,900

48,300

48,600

48,900

49,200

49,500

12.75 to less than 13.00

46,800

47,200

47,500

47,800

48,100

48,400

48,800

49,100

49,500

49,800

50,100

13.00 to less than 13.25

47,400

47,700

48,100

48,400

48,700

49,000

49,400

49,700

50,000

50,300

50,600

13.25 to less than 13.50

47,900

48,300

48,600

48,900

49,300

49,600

50,000

50,300

50,600

50,900

51,200

13.50 to less than 13.75

48,500

48,800

49,200

49,500

49,800

50,100

50,500

50,800

51,100

51,400

51,700

13.75 to less than 14.00

49,000

49,400

49,700

50,000

50,400

50,700

51,100

51,400

51,700

52,000

52,300

14.00 to less than 14.25

49,600

49,900

50,300

50,600

50,900

51,200

51,700

52,000

52,300

52,600

52,900

14.25 to less than 14.50

50,100

50,500

50,800

51,100

51,500

51,800

52,200

52,500

52,900

53,200

53,500

14.50 to less than 14.75

50,700

51,000

51,400

51,700

52,100

52,400

52,800

53,100

53,500

53,800

54,100

14.75 to less than 15.00

51,200

51,600

52,000

52,300

52,600

52,900

53,400

53,700

54,100

54,400

54,700

15.00 and over

51,700

52,100

52,500

52,800

53,200

53,500

53,900

54,200

54,600

54,900

55,200

O. Reg. 413/05, Table 13.

vehicle weight table 14
allowable gross weight on a vehicle with six axles (kilograms)
inter-vehicle-unit distance, 3.3 metres to less than 3.6 metres
(or intra-vehicle-unit distance)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 9.50

39,800

40,100

40,400

40,600

40,900

41,200

41,500

41,700

42,000

42,300

42,600

9.50 to less than 9.75

40,400

40,600

40,900

41,200

41,500

41,800

42,000

42,300

42,600

42,900

43,200

9.75 to less than 10.00

40,900

41,200

41,500

41,800

42,000

42,300

42,600

42,900

43,200

43,400

43,700

10.00 to less than 10.25

41,500

41,800

42,000

42,300

42,600

42,900

43,200

43,500

43,700

44,000

44,300

10.25 to less than 10.50

42,000

42,300

42,600

42,900

43,200

43,500

43,700

44,000

44,300

44,600

44,900

10.50 to less than 10.75

42,600

42,900

43,100

43,400

43,700

44,000

44,300

44,600

44,900

45,200

45,500

10.75 to less than 11.00

43,100

43,400

43,700

44,000

44,300

44,600

44,900

45,200

45,500

45,700

46,000

11.00 to less than 11.25

43,700

44,000

44,300

44,600

44,900

45,100

45,400

45,700

46,000

46,300

46,600

11.25 to less than 11.50

44,200

44,500

44,800

45,100

45,400

45,700

46,000

46,300

46,600

46,900

47,200

11.50 to less than 11.75

44,800

45,100

45,400

45,700

46,000

46,300

46,600

46,900

47,200

47,500

47,800

11.75 to less than 12.00

45,300

45,600

45,900

46,200

46,500

46,800

47,100

47,400

47,700

48,000

48,300

12.00 to less than 12.25

45,900

46,200

46,500

46,800

47,100

47,400

47,700

48,000

48,300

48,600

48,900

12.25 to less than 12.50

46,400

46,700

47,100

47,400

47,700

48,000

48,300

48,600

48,900

49,200

49,500

12.50 to less than 12.75

47,000

47,300

47,600

47,900

48,200

48,500

48,800

49,100

49,500

49,800

50,100

12.75 to less than 13.00

47,500

47,900

48,200

48,500

48,800

49,100

49,400

49,700

50,000

50,300

50,600

13.00 to less than 13.25

48,100

48,400

48,700

49,000

49,300

49,700

50,000

50,300

50,600

50,900

51,200

13.25 to less than 13.50

48,700

49,000

49,300

49,600

49,900

50,200

50,500

50,900

51,200

51,500

51,900

13.50 to less than 13.75

49,200

49,500

49,800

50,200

50,500

50,800

51,100

51,400

51,700

52,100

52,400

13.75 to less than 14.00

49,800

50,100

50,400

50,700

51,000

51,400

51,700

52,000

52,300

52,600

52,900

14.00 to less than 14.25

50,300

50,600

51,000

51,300

51,600

51,900

52,200

52,600

52,900

53,200

53,600

14.25 to less than 14.50

50,900

51,200

51,500

51,800

52,200

52,500

52,800

53,100

53,500

53,800

54,200

14.50 to less than 14.75

51,400

51,700

52,100

52,400

52,700

53,000

53,400

53,700

54,000

54,400

54,700

14.75 to less than 15.00

52,000

52,300

52,600

53,000

53,300

53,600

53,900

54,300

54,600

54,900

55,300

15.00 and over

52,000

52,500

53,000

53,300

53,600

54,000

54,300

54,600

55,000

55,300

55,600

O. Reg. 413/05, Table 14.

vehicle weight table 15
allowable gross weight on a vehicle with six axles (kilograms)
inter-vehicle-unit distance, 3.6 metres or more
(or intra-vehicle-unit distance)

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 9.50

40,400

40,700

40,900

41,200

41,400

41,700

41,900

42,200

42,400

42,700

42,900

9.50 to less than 9.75

41,000

41,200

41,500

41,700

42,000

42,300

42,500

42,800

43,000

43,300

43,500

9.75 to less than 10.00

41,500

41,800

42,000

42,300

42,600

42,800

43,100

43,300

43,600

43,900

44,100

10.00 to less than 10.25

42,100

42,300

42,600

42,900

43,100

43,400

43,700

43,900

44,200

44,400

44,700

10.25 to less than 10.50

42,600

42,900

43,200

43,400

43,700

44,000

44,200

44,500

44,800

45,000

45,300

10.50 to less than 10.75

43,200

43,400

43,700

44,000

44,300

44,500

44,800

45,100

45,300

45,600

45,900

10.75 to less than 11.00

43,700

44,000

44,300

44,600

44,800

45,100

45,400

45,600

45,900

46,200

46,500

11.00 to less than 11.25

44,300

44,600

44,800

45,100

45,400

45,700

45,900

46,200

46,500

46,800

47,100

11.25 to less than 11.50

44,800

45,100

45,400

45,700

46,000

46,200

46,500

46,800

47,100

47,400

47,700

11.50 to less than 11.75

45,400

45,700

46,000

46,200

46,500

46,800

47,100

47,400

47,700

47,900

48,200

11.75 to less than 12.00

45,900

46,200

46,500

46,800

47,100

47,400

47,700

48,000

48,200

48,500

48,800

12.00 to less than 12.25

46,500

46,800

47,100

47,400

47,700

47,900

48,200

48,500

48,800

49,100

49,400

12.25 to less than 12.50

47,000

47,300

47,600

47,900

48,200

48,500

48,800

49,100

49,400

49,700

50,000

12.50 to less than 12.75

47,600

47,900

48,200

48,500

48,800

49,100

49,400

49,700

50,000

50,300

50,600

12.75 to less than 13.00

48,200

48,500

48,800

49,100

49,400

49,700

50,000

50,300

50,600

50,900

51,200

13.00 to less than 13.25

48,700

49,000

49,300

49,600

49,900

50,200

50,500

50,800

51,100

51,400

51,700

13.25 to less than 13.50

49,300

49,600

49,900

50,200

50,500

50,800

51,100

51,400

51,700

52,000

52,300

13.50 to less than 13.75

49,800

50,100

50,400

50,700

51,100

51,400

51,700

52,000

52,300

52,600

52,900

13.75 to less than 14.00

50,400

50,700

51,000

51,300

51,600

51,900

52,200

52,600

52,900

53,200

53,600

14.00 to less than 14.25

50,900

51,200

51,500

51,900

52,200

52,500

52,800

53,100

53,500

53,800

54,100

14.25 to less than 14.50

51,500

51,800

52,100

52,400

52,700

53,100

53,400

53,700

54,000

54,400

54,700

14.50 to less than 14.75

52,000

52,300

52,700

53,000

53,300

53,600

54,000

54,300

54,600

54,900

55,300

14.75 to less than 15.00

52,000

52,500

53,000

53,500

53,900

54,200

54,500

54,900

55,200

55,500

55,800

15.00 and over

52,000

52,500

53,000

53,500

54,000

54,500

55,000

55,300

55,600

56,000

56,300

O. Reg. 413/05, Table 15.

vehicle weight table 16
allowable gross weight on a vehicle with seven axles (kilograms)
inter-vehicle-unit distance, less than 2.1 metres

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 13.50

45,500

46,000

46,500

47,000

47,500

48,000

48,400

48,900

49,400

49,900

50,400

13.50 to less than 13.75

46,000

46,400

46,900

47,400

47,900

48,400

48,800

49,300

49,800

50,300

50,800

13.75 to less than 14.00

46,400

46,900

47,300

47,800

48,300

48,800

49,200

49,700

50,200

50,700

51,200

14.00 to less than 14.25

46,900

47,300

47,800

48,200

48,700

49,200

49,600

50,100

50,600

51,000

51,500

14.25 to less than 14.50

47,400

47,800

48,200

48,600

49,100

49,600

50,000

50,500

51,000

51,400

51,900

14.50 to less than 14.75

47,800

48,200

48,600

49,100

49,500

50,000

50,400

50,900

51,300

51,800

52,200

14.75 to less than 15.00

48,300

48,600

49,000

49,500

49,900

50,400

50,800

51,300

51,700

52,200

52,600

15.00 to less than 15.25

48,700

49,100

49,400

49,900

50,300

50,800

51,200

51,700

52,100

52,600

53,000

15.25 to less than 15.50

49,200

49,500

49,900

50,300

50,700

51,200

51,600

52,100

52,500

52,900

53,300

15.50 to less than 15.75

49,700

50,000

50,300

50,700

51,100

51,600

52,000

52,500

52,900

53,300

53,700

15.75 to less than 16.00

50,100

50,400

50,700

51,100

51,600

52,000

52,400

52,800

53,300

53,700

54,100

16.00 to less than 16.25

50,600

50,800

51,100

51,600

52,000

52,400

52,800

53,300

53,700

54,100

54,600

16.25 to less than 16.50

51,000

51,300

51,600

52,000

52,400

52,800

53,200

53,700

54,100

54,500

55,000

16.50 to less than 16.75

51,400

51,700

52,000

52,400

52,800

53,200

53,700

54,100

54,500

54,900

55,400

16.75 to less than 17.00

51,800

52,100

52,400

52,800

53,200

53,700

54,100

54,500

54,900

55,300

55,800

17.00 to less than 17.25

52,200

52,500

52,800

53,300

53,700

54,100

54,500

54,900

55,300

55,700

56,200

17.25 to less than 17.50

52,700

53,000

53,300

53,700

54,100

54,500

54,900

55,300

55,700

56,200

56,600

17.50 to less than 17.75

53,100

53,400

53,700

54,100

54,500

54,900

55,300

55,700

56,200

56,600

57,000

17.75 to less than 18.00

53,500

53,800

54,100

54,500

54,900

55,300

55,700

56,200

56,600

57,000

57,400

18.00 to less than 18.25

53,900

54,200

54,500

55,000

55,400

55,800

56,200

56,600

57,000

57,400

57,800

18.25 to less than 18.50

54,300

54,700

55,000

55,400

55,800

56,200

56,600

57,000

57,400

57,800

58,200

18.50 to less than 18.75

54,800

55,100

55,400

55,800

56,200

56,600

57,000

57,400

57,800

58,200

58,600

18.75 to less than 19.00

55,200

55,500

55,900

56,200

56,600

57,000

57,400

57,800

58,200

58,600

59,000

19.00 to less than 19.25

55,600

55,900

56,300

56,600

57,000

57,400

57,800

58,200

58,600

59,000

59,400

19.25 and over

56,000

56,300

56,700

57,000

57,400

57,800

58,200

58,600

59,000

59,400

59,800

O. Reg. 413/05, Table 16.

vehicle weight table 17
allowable gross weight on a vehicle with seven axles (kilograms)
inter-vehicle-unit distance, 2.1 metres to less than 2.4 metres

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 13.50

46,500

47,000

47,500

47,900

48,400

48,800

49,200

49,600

50,100

50,500

50,900

13.50 to less than 13.75

46,900

47,400

47,900

48,300

48,800

49,200

49,600

50,100

50,500

50,900

51,300

13.75 to less than 14.00

47,300

47,800

48,300

48,700

49,200

49,600

50,000

50,500

50,900

51,300

51,700

14.00 to less than 14.25

47,800

48,200

48,700

49,200

49,600

50,000

50,400

50,900

51,300

51,700

52,100

14.25 to less than 14.50

48,200

48,700

49,100

49,600

50,000

50,400

50,900

51,300

51,700

52,100

52,500

14.50 to less than 14.75

48,600

49,100

49,500

50,000

50,400

50,800

51,300

51,700

52,100

52,500

53,000

14.75 to less than 15.00

49,100

49,500

50,000

50,400

50,800

51,200

51,700

52,100

52,500

53,000

53,400

15.00 to less than 15.25

49,500

49,900

50,400

50,800

51,200

51,700

52,100

52,500

52,900

53,400

53,800

15.25 to less than 15.50

49,900

50,400

50,800

51,200

51,600

52,100

52,500

52,900

53,400

53,800

54,200

15.50 to less than 15.75

50,400

50,800

51,200

51,600

52,000

52,500

52,900

53,300

53,800

54,200

54,600

15.75 to less than 16.00

50,800

51,200

51,600

52,000

52,500

52,900

53,300

53,700

54,200

54,600

55,000

16.00 to less than 16.25

51,300

51,700

52,100

52,500

52,900

53,300

53,700

54,200

54,600

55,000

55,400

16.25 to less than 16.50

51,700

52,100

52,500

52,900

53,300

53,800

54,200

54,600

55,000

55,400

55,900

16.50 to less than 16.75

52,200

52,600

53,000

53,400

53,800

54,200

54,600

55,000

55,400

55,800

56,300

16.75 to less than 17.00

52,600

53,000

53,400

53,800

54,200

54,600

55,000

55,400

55,800

56,200

56,700

17.00 to less than 17.25

53,100

53,500

53,900

54,300

54,700

55,100

55,500

55,900

56,200

56,600

57,100

17.25 to less than 17.50

53,600

53,900

54,300

54,700

55,100

55,500

55,900

56,300

56,700

57,100

57,500

17.50 to less than 17.75

54,000

54,400

54,800

55,200

55,500

55,900

56,300

56,700

57,100

57,500

57,900

17.75 to less than 18.00

54,500

54,900

55,200

55,600

56,000

56,400

56,700

57,100

57,500

57,900

58,300

18.00 to less than 18.25

54,900

55,300

55,700

56,100

56,400

56,800

57,200

57,500

57,900

58,300

58,700

18.25 to less than 18.50

55,400

55,800

56,100

56,500

56,900

57,200

57,600

58,000

58,300

58,700

59,100

18.50 to less than 18.75

55,900

56,200

56,600

57,000

57,300

57,700

58,000

58,400

58,700

59,100

59,400

18.75 to less than 19.00

56,400

56,700

57,000

57,400

57,700

58,100

58,400

58,800

59,100

59,500

59,900

19.00 to less than 19.25

56,900

57,200

57,500

57,800

58,200

58,500

58,800

59,200

59,500

59,900

60,300

19.25 and over

57,300

57,600

57,900

58,200

58,600

58,900

59,200

59,600

59,900

60,300

60,700

O. Reg. 413/05, Table 17.

vehicle weight table 18
allowable gross weight on a vehicle with seven axles (kilograms)
inter-vehicle-unit distance, 2.4 metres to less than 2.7 metres

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 13.50

47,300

47,800

48,300

48,800

49,200

49,700

50,100

50,600

51,000

51,500

51,900

13.50 to less than 13.75

47,700

48,200

48,700

49,200

49,600

50,100

50,500

51,000

51,400

51,900

52,300

13.75 to less than 14.00

48,200

48,600

49,100

49,600

50,000

50,500

50,900

51,400

51,800

52,300

52,700

14.00 to less than 14.25

48,600

49,100

49,500

50,000

50,400

50,900

51,300

51,800

52,200

52,700

53,100

14.25 to less than 14.50

49,000

49,500

49,900

50,400

50,800

51,300

51,700

52,200

52,600

53,100

53,500

14.50 to less than 14.75

49,400

49,900

50,300

50,800

51,200

51,700

52,100

52,600

53,000

53,500

53,900

14.75 to less than 15.00

49,900

50,300

50,800

51,200

51,700

52,100

52,600

53,000

53,500

53,900

54,300

15.00 to less than 15.25

50,300

50,700

51,200

51,600

52,100

52,500

53,000

53,400

53,900

54,300

54,800

15.25 to less than 15.50

50,700

51,100

51,600

52,000

52,500

52,900

53,400

53,800

54,300

54,700

55,200

15.50 to less than 15.75

51,100

51,600

52,000

52,400

52,900

53,300

53,800

54,200

54,700

55,100

55,600

15.75 to less than 16.00

51,600

52,000

52,400

52,800

53,300

53,700

54,200

54,600

55,100

55,500

56,000

16.00 to less than 16.25

52,000

52,400

52,800

53,300

53,700

54,100

54,600

55,000

55,500

55,900

56,400

16.25 to less than 16.50

52,500

52,900

53,300

53,700

54,100

54,600

55,000

55,400

55,900

56,300

56,700

16.50 to less than 16.75

52,900

53,300

53,700

54,100

54,600

55,000

55,400

55,900

56,300

56,700

57,100

16.75 to less than 17.00

53,400

53,700

54,100

54,500

55,000

55,400

55,800

56,300

56,700

57,100

57,500

17.00 to less than 17.25

53,800

54,200

54,500

55,000

55,400

55,800

56,300

56,700

57,100

57,500

58,000

17.25 to less than 17.50

54,300

54,600

55,000

55,400

55,800

56,200

56,700

57,100

57,500

58,000

58,400

17.50 to less than 17.75

54,700

55,000

55,400

55,800

56,200

56,700

57,100

57,500

57,900

58,400

58,800

17.75 to less than 18.00

55,200

55,500

55,800

56,200

56,700

57,100

57,500

57,900

58,400

58,800

59,300

18.00 to less than 18.25

55,600

55,900

56,200

56,700

57,100

57,500

57,900

58,300

58,800

59,200

59,600

18.25 to less than 18.50

56,100

56,400

56,700

57,100

57,500

57,900

58,300

58,800

59,200

59,600

60,000

18.50 to less than 18.75

56,500

56,800

57,100

57,500

57,900

58,300

58,800

59,200

59,600

60,000

60,400

18.75 to less than 19.00

57,000

57,300

57,500

57,900

58,300

58,800

59,200

59,600

60,000

60,400

60,800

19.00 to less than 19.25

57,400

57,700

57,900

58,300

58,800

59,200

59,600

60,000

60,400

60,800

61,200

19.25 and over

57,900

58,100

58,300

58,700

59,200

59,600

60,000

60,400

60,800

61,200

61,600

O. Reg. 413/05, Table 18; O. Reg. 167/12, s. 13.

vehicle weight table 19
allowable gross weight on a vehicle with seven axles (kilograms)
inter-vehicle-unit distance, 2.7 metres to less than 3.0 metres

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 14.00

48,700

49,200

49,600

50,000

50,500

50,900

51,300

51,700

52,200

52,600

53,000

14.00 to less than 14.25

49,200

49,600

50,100

50,500

50,900

51,300

51,800

52,200

52,600

53,000

53,500

14.25 to less than 14.50

49,700

50,100

50,500

50,900

51,400

51,800

52,200

52,600

53,100

53,500

53,900

14.50 to less than 14.75

50,100

50,600

51,000

51,400

51,800

52,300

52,700

53,100

53,500

53,900

54,300

14.75 to less than 15.00

50,600

51,000

51,400

51,900

52,300

52,700

53,100

53,600

54,000

54,400

54,800

15.00 to less than 15.25

51,100

51,500

51,900

52,300

52,800

53,200

53,600

54,000

54,400

54,800

55,300

15.25 to less than 15.50

51,500

52,000

52,400

52,800

53,200

53,600

54,000

54,500

54,900

55,300

55,700

15.50 to less than 15.75

52,000

52,400

52,800

53,300

53,700

54,100

54,500

54,900

55,300

55,700

56,100

15.75 to less than 16.00

52,500

52,900

53,300

53,700

54,100

54,500

55,000

55,400

55,800

56,200

56,600

16.00 to less than 16.25

52,900

53,300

53,700

54,100

54,500

54,900

55,400

55,800

56,200

56,600

57,000

16.25 to less than 16.50

53,300

53,700

54,100

54,500

54,900

55,300

55,800

56,200

56,600

57,000

57,400

16.50 to less than 16.75

53,700

54,100

54,500

54,900

55,300

55,700

56,200

56,600

57,000

57,400

57,800

16.75 to less than 17.00

54,100

54,500

54,900

55,300

55,700

56,100

56,600

57,000

57,400

57,800

58,200

17.00 to less than 17.25

54,600

54,900

55,300

55,700

56,100

56,500

57,000

57,400

57,800

58,200

58,700

17.25 to less than 17.50

55,000

55,300

55,600

56,100

56,500

56,900

57,400

57,800

58,200

58,700

59,100

17.50 to less than 17.75

55,400

55,700

56,000

56,500

56,900

57,300

57,800

58,200

58,600

59,100

59,500

17.75 to less than 18.00

55,800

56,100

56,400

56,900

57,300

57,700

58,200

58,600

59,000

59,500

59,900

18.00 to less than 18.25

56,200

56,500

56,800

57,300

57,700

58,100

58,600

59,000

59,400

59,900

60,300

18.25 to less than 18.50

56,600

56,900

57,200

57,600

58,100

58,500

59,000

59,400

59,900

60,300

60,700

18.50 to less than 18.75

57,100

57,300

57,600

58,000

58,500

58,900

59,400

59,800

60,300

60,700

61,200

18.75 to less than 19.00

57,500

57,700

58,000

58,400

58,900

59,300

59,800

60,200

60,700

61,100

61,600

19.00 to less than 19.25

57,900

58,100

58,400

58,800

59,300

59,700

60,200

60,600

61,100

61,500

62,000

19.25 and over

58,300

58,500

58,800

59,200

59,700

60,100

60,600

61,000

61,500

61,900

62,400

O. Reg. 413/05, Table 19; O. Reg. 167/12, s. 14.

vehicle weight table 20
allowable gross weight on a vehicle with seven axles (kilograms)
inter-vehicle-unit distance, 3.0 metres to less than 3.3 metres

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 14.00

49,300

49,700

50,200

50,700

51,100

51,600

52,000

52,500

52,900

53,400

53,800

14.00 to less than 14.25

49,700

50,100

50,600

51,000

51,500

52,000

52,400

52,900

53,400

53,800

54,300

14.25 to less than 14.50

50,100

50,500

51,000

51,400

51,900

52,400

52,800

53,300

53,800

54,200

54,700

14.50 to less than 14.75

50,500

51,000

51,400

51,800

52,300

52,800

53,200

53,700

54,200

54,600

55,100

14.75 to less than 15.00

51,000

51,400

51,700

52,200

52,700

53,200

53,600

54,100

54,600

55,000

55,600

15.00 to less than 15.25

51,400

51,800

52,100

52,600

53,100

53,600

54,000

54,500

55,000

55,500

56,000

15.25 to less than 15.50

51,800

52,200

52,500

53,000

53,500

54,000

54,400

54,900

55,400

55,900

56,400

15.50 to less than 15.75

52,200

52,600

52,900

53,400

53,900

54,400

54,900

55,300

55,800

56,300

56,800

15.75 to less than 16.00

52,700

53,000

53,300

53,800

54,300

54,800

55,200

55,700

56,200

56,700

57,200

16.00 to less than 16.25

53,100

53,400

53,700

54,200

54,700

55,200

55,700

56,100

56,600

57,100

57,500

16.25 to less than 16.50

53,500

53,800

54,100

54,600

55,100

55,600

56,100

56,600

57,000

57,500

57,900

16.50 to less than 16.75

54,000

54,300

54,600

55,000

55,500

56,000

56,500

57,000

57,400

57,900

58,400

16.75 to less than 17.00

54,400

54,700

55,000

55,500

55,900

56,400

56,900

57,400

57,900

58,300

58,800

17.00 to less than 17.25

54,900

55,100

55,400

55,900

56,300

56,800

57,300

57,800

58,300

58,700

59,300

17.25 to less than 17.50

55,300

55,600

55,800

56,300

56,800

57,200

57,700

58,200

58,700

59,200

59,700

17.50 to less than 17.75

55,700

56,000

56,200

56,700

57,200

57,700

58,100

58,600

59,100

59,600

60,100

17.75 to less than 18.00

56,200

56,400

56,600

57,100

57,600

58,100

58,500

59,000

59,500

60,000

60,500

18.00 to less than 18.25

56,600

56,800

57,100

57,500

58,000

58,500

59,000

59,400

59,900

60,400

61,000

18.25 to less than 18.50

57,100

57,300

57,500

58,000

58,400

58,900

59,400

59,800

60,300

60,800

61,200

18.50 to less than 18.75

57,500

57,700

57,900

58,400

58,800

59,300

59,800

60,300

60,700

61,200

61,600

18.75 to less than 19.00

58,100

58,300

58,500

58,800

59,200

59,600

60,100

60,600

61,000

61,500

61,900

19.00 to less than 19.25

58,600

58,800

59,000

59,200

59,600

60,000

60,500

61,000

61,400

61,800

62,200

19.25 and over

59,000

59,200

59,400

59,600

60,000

60,400

60,900

61,400

61,800

62,200

62,600

O. Reg. 413/05, Table 20.

vehicle weight table 21
allowable gross weight on a vehicle with seven axles (kilograms)
inter-vehicle-unit distance, 3.3 metres to less than 3.6 metres

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 15.00

51,600

52,000

52,400

52,800

53,300

53,700

54,200

54,600

55,100

55,500

56,000

15.00 to less than 15.25

52,100

52,500

52,800

53,300

53,700

54,200

54,600

55,000

55,500

55,900

56,400

15.25 to less than 15.50

52,500

52,900

53,200

53,700

54,100

54,600

55,000

55,500

55,900

56,300

56,800

15.50 to less than 15.75

53,000

53,300

53,700

54,100

54,600

55,000

55,400

55,900

56,300

56,800

57,200

15.75 to less than 16.00

53,400

53,800

54,100

54,500

55,000

55,400

55,900

56,300

56,800

57,200

57,600

16.00 to less than 16.25

53,900

54,200

54,500

55,000

55,400

55,900

56,300

56,700

57,200

57,600

58,000

16.25 to less than 16.50

54,300

54,600

54,900

55,400

55,800

56,300

56,700

57,200

57,600

58,000

58,500

16.50 to less than 16.75

54,800

55,100

55,400

55,800

56,300

56,700

57,100

57,600

58,000

58,500

58,900

16.75 to less than 17.00

55,200

55,500

55,800

56,200

56,700

57,100

57,600

58,000

58,500

58,900

59,400

17.00 to less than 17.25

55,600

55,900

56,200

56,700

57,100

57,500

58,000

58,400

58,800

59,300

59,700

17.25 to less than 17.50

56,100

56,400

56,700

57,100

57,500

57,900

58,400

58,800

59,200

59,700

60,100

17.50 to less than 17.75

56,500

56,800

57,100

57,500

57,900

58,400

58,800

59,200

59,600

60,100

60,400

17.75 to less than 18.00

57,000

57,300

57,500

57,900

58,400

58,800

59,200

59,600

60,000

60,400

60,800

18.00 to less than 18.25

57,400

57,700

57,900

58,400

58,800

59,200

59,600

60,000

60,400

60,800

61,200

18.25 to less than 18.50

57,900

58,100

58,400

58,800

59,200

59,600

60,000

60,400

60,800

61,200

61,600

18.50 to less than 18.75

58,300

58,600

58,800

59,200

59,600

60,000

60,400

60,800

61,200

61,600

62,000

18.75 to less than 19.00

58,700

59,000

59,300

59,600

60,000

60,400

60,800

61,200

61,600

62,000

62,400

19.00 to less than 19.25

59,200

59,500

59,700

60,000

60,400

60,800

61,200

61,600

62,000

62,400

62,800

19.25 and over

59,600

59,900

60,100

60,400

60,800

61,200

61,600

62,000

62,400

62,800

63,200

O. Reg. 413/05, Table 21.

vehicle weight table 22
allowable gross weight on a vehicle with seven axles (kilograms)
inter-vehicle-unit distance, 3.6 metres or more

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 15.00

52,300

52,700

53,100

53,500

54,000

54,400

54,900

55,300

55,800

56,200

56,700

15.00 to less than 15.25

52,800

53,100

53,500

54,000

54,400

54,800

55,300

55,700

56,200

56,600

57,100

15.25 to less than 15.50

53,200

53,600

53,900

54,400

54,800

55,300

55,700

56,100

56,600

57,000

57,500

15.50 to less than 15.75

53,700

54,000

54,400

54,800

55,200

55,700

56,100

56,500

57,000

57,400

57,900

15.75 to less than 16.00

54,100

54,400

54,800

55,200

55,700

56,100

56,500

56,900

57,400

57,800

58,300

16.00 to less than 16.25

54,500

54,900

55,200

55,600

56,100

56,500

56,900

57,300

57,800

58,200

58,600

16.25 to less than 16.50

55,000

55,300

55,600

56,100

56,500

56,900

57,300

57,800

58,200

58,600

59,000

16.50 to less than 16.75

55,400

55,700

56,100

56,500

56,900

57,300

57,700

58,200

58,600

59,000

59,400

16.75 to less than 17.00

55,900

56,200

56,500

56,900

57,300

57,700

58,200

58,600

59,000

59,400

59,800

17.00 to less than 17.25

56,300

56,600

56,900

57,300

57,700

58,100

58,500

59,000

59,400

59,800

60,300

17.25 to less than 17.50

56,700

57,000

57,300

57,700

58,100

58,500

58,900

59,300

59,800

60,200

60,700

17.50 to less than 17.75

57,100

57,400

57,700

58,100

58,500

58,900

59,300

59,700

60,100

60,600

61,000

17.75 to less than 18.00

57,500

57,800

58,000

58,500

58,900

59,300

59,700

60,100

60,500

60,900

61,300

18.00 to less than 18.25

57,900

58,200

58,400

58,800

59,300

59,700

60,100

60,500

60,900

61,300

61,700

18.25 to less than 18.50

58,400

58,600

58,800

59,200

59,600

60,100

60,500

60,900

61,300

61,700

62,100

18.50 to less than 18.75

58,800

59,000

59,200

59,600

60,000

60,400

60,900

61,300

61,700

62,100

62,500

18.75 to less than 19.00

59,300

59,500

59,700

60,000

60,400

60,900

61,300

61,700

62,100

62,500

62,900

19.00 to less than 19.25

59,700

59,900

60,200

60,500

60,900

61,300

61,700

62,100

62,500

62,900

63,300

19.25 and over

60,100

60,300

60,600

60,900

61,300

61,700

62,100

62,500

62,900

63,300

63,500

O. Reg. 413/05, Table 22.

vehicle weight table 23
allowable gross weight on a vehicle with eight or more axles (kilograms)
inter-vehicle-unit distance, less than 2.1 metres

Base length (metres)

Front axle weight (kilograms)

5000

5,001

5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

or less

to less

to less

to less

to less

to less

to less

to less

to less

to less

to



than

than

than

than

than

than

than

than

than





5,500

6,000

6,500

7,000

7,500

8,000

8,500

9,000

9,500

10,000

Less than 15.00

47,600

48,000

48,500

49,000

49,500

50,000

50,400

50,900

51,400

51,900

52,400

15.00 to less than 15.25

48,100

48,600

49,000

49,500

50,000

50,500

51,000

51,400

51,900

52,400

52,900

15.25 to less than 15.50

48,700

49,100

49,600

50,100

50,500

51,000

51,500

51,900

52,400

52,900

53,400

15.50 to less than 15.75

49,200

49,700

50,100

50,600

51,100

51,500

52,000

52,400

52,900

53,400

53,800

15.75 to less than 16.00

49,700

50,200

50,700

51,100

51,600

52,000

52,500

52,900

53,400

53,800

54,300

16.00 to less than 16.25

50,300

50,700

51,200

51,700

52,100

52,500

53,000

53,400

53,900

54,300

54,800

16.25 to less than 16.50

50,800

51,300

51,800

52,200

52,600

53,100

53,500

53,900

54,400

54,800

55,300

16.50 to less than 16.75

51,300

51,800

52,300

52,700

53,200

53,600

54,000

54,400

54,900

55,300

55,700

16.75 to less than 17.00

51,800

52,300

52,800

53,200

53,600

54,000

54,500

54,900

55,300

55,700

56,100

17.00 to less than 17.25

52,300

52,800

53,200

53,700

54,100

54,500

54,900

55,300

55,700

56,100

56,500

17.25 to less than 17.50

52,800

53,300

53,700

54,100

54,500

54,900

55,400

55,800

56,200

56,600

57,000

17.50 to less than 17.75

53,300

53,800

54,200

54,600

55,000

55,400

55,800

56,200

56,600

57,000

57,400

17.75 to less than 18.00

53,800

54,300

54,700

55,100

55,500

55,900

56,200

56,600

57,000

57,400

57,800

18.00 to less than 18.25

54,300

54,700

55,100

55,500

55,900

56,300

56,700

57,100

57,500

57,800

58,300

18.25 to less than 18.50

54,800

55,200

55,600

56,000

56,400

56,800

57,100

57,500

57,900

58,300

58,800

18.50 to less than 18.75

55,300

55,700

56,100

56,500

56,800

57,200

57,600

58,000

58,300

58,700

59,300

18.75 to less than 19.00

55,900

56,300

56,700

57,000

57,400

57,700

58,000

58,400

58,800

59,200

59,700
