Red Mulberry Recovery Strategy

About the Ontario recovery strategy series

This series presents the collection of recovery strategies that are prepared or adopted as advice to the Province of Ontario on the recommended approach to recover species at risk. The Province ensures the preparation of recovery strategies to meet its commitments to recover species at risk under the Endangered Species Act (ESA) and the Accord for the Protection of Species at Risk in Canada.

What is recovery?

Recovery of species at risk is the process by which the decline of an endangered, threatened, or extirpated species is arrested or reversed, and threats are removed or reduced to improve the likelihood of a species' persistence in the wild.

What is a recovery strategy?

Under the ESA a recovery strategy provides the best available scientific knowledge on what is required to achieve recovery of a species. A recovery strategy outlines the habitat needs and the threats to the survival and recovery of the species. It also makes recommendations on the objectives for protection and recovery, the approaches to achieve those objectives, and the area that should be considered in the development of a habitat regulation. Sections 11 to 15 of the ESA outline the required content and timelines for developing recovery strategies published in this series.

Recovery strategies are required to be prepared for endangered and threatened species within one or two years respectively of the species being added to the Species at Risk in Ontario list. There is a transition period of five years (until June 30, 2013) to develop recovery strategies for those species listed as endangered or threatened in the schedules of the ESA. Recovery strategies are required to be prepared for extirpated species only if reintroduction is considered feasible.

What’s next?

Nine months after the completion of a recovery strategy a government response statement will be published which summarizes the actions that the Government of Ontario intends to take in response to the strategy.

The implementation of recovery strategies depends on the continued cooperation and actions of government agencies, individuals, communities, land users, and conservationists.

For more information

To learn more about species at risk recovery in Ontario, please visit the Ministry of Natural Resources Species at Risk webpage at.

Recommended citation

Ontario Ministry of Natural Resources. 2013. Recovery Strategy for the Red Mulberry (Morus rubra) in Ontario. Ontario Recovery Strategy Series. Ontario Ministry of Natural Resources, Peterborough, Ontario. iii + 5 pp + Appendix vi + 47 pp. Adoption of the Recovery Strategy for the Red Mulberry (Morus rubra) in Canada (Parks Canada Agency 2011).

© Queen’s Printer for Ontario, 2013
ISBN 978-1-4435-9440-0 (PDF)

Content (excluding the cover illustration) may be used without permission, with appropriate credit to the source.

Cette publication hautement spécialisée Recovery strategies prepared under the Endangered Species Act, 2007, n'est disponible qu'en Anglais en vertu du Règlement 411/97 qui en exempte l'application de la Loi sur les services en français. Pour obtenir de l'aide en français, veuillez communiquer avec Cathy Darevic au ministère des Richesses naturelles au Tel: 705-755-5580

Declaration

The recovery strategy for the Red Mulberry was developed in accordance with the requirements of the Endangered Species Act, 2007 (ESA). This recovery strategy has been prepared as advice to the Government of Ontario, other responsible jurisdictions and the many different constituencies that may be involved in recovering the species.

The recovery strategy does not necessarily represent the views of all of the individuals who provided advice or contributed to its preparation, or the official positions of the organizations with which the individuals are associated.

The goals, objectives and recovery approaches identified in the strategy are based on the best available knowledge and are subject to revision as new information becomes available. Implementation of this strategy is subject to appropriations, priorities and budgetary constraints of the participating jurisdictions and organizations.

Success in the recovery of this species depends on the commitment and cooperation of many different constituencies that will be involved in implementing the directions set out in this strategy.

Responsible jurisdictions

Ontario Ministry of Natural Resources
Environment Canada – Canadian Wildlife Service, Ontario
Parks Canada Agency

Adoption of recovery strategy

The Endangered Species Act, 2007 (ESA) requires the Minister of Natural Resources to ensure recovery strategies are prepared for all species listed as endangered or threatened on the Species at Risk in Ontario (SARO) List. Under the ESA, a recovery strategy may incorporate all or part of an existing plan that relates to the species.

Red Mulberry (Morus rubra) is listed as endangered on the SARO List. The species is also listed as endangered under the federal Species at Risk Act (SARA). Parks Canada Agency prepared the Recovery Strategy for the Red Mulberry in Canada in 2011 to meet their requirements under the SARA. This recovery strategy is hereby adopted under the ESA. With the additions indicated below, the enclosed strategy meets all of the content requirements outlined in the ESA.

Species assessment and classification

• Common Name: Red Mulberry
• Scientific Name: Morus rubra
• SARO List Classification: Endangered
• SARO List History: Endangered (2008), Endangered – Regulated (2005), Endangered – Not Regulated (2004)
• COSEWIC Assessment History: Endangered (2000), Endangered (1999), Threatened (1987)
• SARA Schedule 1: Endangered
• Conservation Status Rankings: GRANK: G5 NRANK: N2 SRANK: S2

The glossary provides definitions for technical terms, including the abbreviations above.

Area for consideration in developing a habitat regulation

Under the ESA, a recovery strategy must include a recommendation to the Minister of Natural Resources on the area that should be considered in developing a habitat regulation. A habitat regulation is a legal instrument that prescribes an area that will be protected as the habitat of the species. The recommendation provided below will be one of many sources considered by the Minister when developing the habitat regulation for this species.

Section 7 of the federal recovery strategy provides an identification of critical habitat (as defined under the SARA). Identification of critical habitat is not a component of a recovery strategy prepared under the ESA. However, it is recommended that the areas of critical habitat identified in Section 7 be considered when developing a habitat regulation under the ESA.

Glossary

Committee on the Status of Endangered Wildlife in Canada (COSEWIC): The committee responsible for assessing and classifying species at risk in Canada.

Committee on the Status of Species at Risk in Ontario (COSSARO): The committee established under section 3 of the Endangered Species Act, 2007 that is responsible for assessing and classifying species at risk in Ontario.

Conservation status rank: A rank assigned to a species or ecological community that primarily conveys the degree of rarity of the species or community at the global (G), national (N) or subnational (S) level. These ranks, termed G-rank, N-rank and S-rank, are not legal designations. The conservation status of a species or ecosystem is designated by a number from 1 to 5, preceded by the letter G, N or S reflecting the appropriate geographic scale of the assessment. The numbers mean the following:

1 = critically imperilled
2 = imperilled
3 = vulnerable
4 = apparently secure
5 = secure

Endangered Species Act, 2007 (ESA): The provincial legislation that provides protection to species at risk in Ontario.

Species at Risk Act (SARA): The federal legislation that provides protection to species at risk in Canada. This act establishes Schedule 1 as the legal list of wildlife species at risk to which the SARA provisions apply. Schedules 2 and 3 contain lists of species that at the time the Act came into force needed to be reassessed. After species on Schedule 2 and 3 are reassessed and found to be at risk, they undergo the SARA listing process to be included in Schedule 1.

Species at Risk in Ontario (SARO) List: The regulation made under section 7 of the Endangered Species Act, 2007 that provides the official status classification of species at risk in Ontario. This list was first published in 2004 as a policy and became a regulation in 2008.

Appendix 1 - recovery strategy for the Red Mulberry (morus rubra) in Canada

Recommended citation

Parks Canada Agency. 2011. Recovery Strategy for the Red Mulberry (Morus rubra) in Canada. Species at Risk Act Recovery Strategy Series. Parks Canada Agency. Ottawa, Ontario. vi + 47 pp.

Additional copies

Additional copies can be downloaded from the Species at Risk Public Registry.

Cover illustration: Photo courtesy of Donald Kirk, Natural Heritage Ecologist, Ontario Ministry of Natural Resources, Guelph District.

Également disponible en français sous le titre « Programme de rétablissement du mûrier rouge (Morus rubra) au Canada »

© Her Majesty the Queen in Right of Canada, represented by the Minister of the Environment, 2011. All rights reserved. ISBN 978-1-100-17848-6
Catalogue no. En3-4/96-2011E-PDF

Content (excluding the illustrations) may be used without permission, with appropriate credit to the source.

Recommendation and approval statement

The Parks Canada Agency led the development of this federal recovery strategy, working together with the other competent minister(s) for this species under the Species at Risk Act. The Chief Executive Officer, upon recommendation of the relevant Park Superintendent(s) and Field Unit Superintendent(s), hereby approves this document indicating that Species at Risk Act requirements related to recovery strategy development (sections 37-42) have been fulfilled in accordance with the Act.

Recommended by:
Signed by Marian Stranak
Superintendent, Point Pelee National Park of Canada, Parks Canada Agency

Recommended by:
Signed by Geoffrey Hancock
Feild Unit Superintendent, Southwestern Ontario Feild Unit, Parks Canada Agency

Approved by:
Signed by Alan Latourelle
Cheif Executive Officer, Parks Canada Agency

All competent ministers have approved posting of this recovery strategy on the Species at Risk Public Registry.

Declaration

Under the Accord for the Protection of Species at Risk (1996), the federal, provincial, and territorial governments agreed to work together on legislation, programs, and policies to protect wildlife species at risk throughout Canada. The Species at Risk Act (s.c. 2002, c.29) (SARA) requires that federal competent ministers prepare recovery strategies for listed Extirpated, Endangered and Threatened species.

The Minister of the Environment presents this document as the recovery strategy for the Red Mulberry as required under SARA. It has been prepared in cooperation with the jurisdictions responsible for the species, as described in the Preface. The Minister invites other jurisdictions and organizations that may be involved in recovering the species to use this recovery strategy as advice to guide their actions.

The objective and recovery approaches identified in the strategy are based on the best existing knowledge and are subject to modifications resulting from new findings and revised objectives.

This recovery strategy will be the basis for one or more action plans that will provide further details regarding measures to be taken to support protection and recovery of the species. Success in the recovery of this species depends on the commitment and cooperation of many different constituencies that will be involved in implementing the actions identified in this strategy.

In the spirit of the Accord for the Protection of Species at Risk, all Canadians are invited to join in supporting and implementing this strategy for the benefit of the species and of Canadian society as a whole. The Minister of the Environment will report on progress within five years.

Acknowledgments

This recovery strategy was initially drafted by John Ambrose, independent consultant and former Chair of the Red Mulberry Recovery Team, and Donald Kirk, Natural Heritage Ecologist with the Ontario Ministry of Natural Resources (OMNR), Guelph District, in collaboration with the original Red Mulberry Recovery Team consisting of Kevin Burgess (former PhD candidate, University of Guelph), Linda DeVerno (former Acting Assistant Director, Science and Technology Directorate, Natural Resources Canada), Brian Husband (Professor, University of Guelph), Dennis Joyce (Provincial Forest Geneticist, OMNR), Gary Mouland (former Park Ecologist, Point Pelee National Park of Canada), Paul Prevett (former Regional Ecologist, Southwest Zone and later Ecologist, Science and Technology Transfer Unit, OMNR), Lisa Twolan (former RENEW Coordinator, Canadian Wildlife Service, Environment Canada), and P. Allen Woodliffe (Aylmer District Ecologist, OMNR).

Numerous people assisted in providing information and ideas for the study of this species, going back to early surveys on this species more than a decade ago (George Meyers [Grimsby Naturalist], Mike Oldham [Natural Heritage Information Centre {NHIC}, OMNR], and Gerry Waldron [M.Sc. Consulting Ecologist]), to early studies of the hybrid dynamics and population biology by Peter Kevan and Steve Stewart (Professors, University of Guelph). Several additional people assisted with field observations (Steven Aboud [Abound and Associates Inc.], John Ambrose, Dirk Janas [private consultant], Bill Kilburn [former Summer Assistant, Toronto Zoo], Mark Laird, and Brendon and Jeff Larson [students]) and in determining propagation techniques (Henry Kock, former Interpretive Horticulturalist, University of Guelph Arboretum). Dirk Janas, Kevin Burgess, and Brian Husband completed habitat mapping and ELC classification for Red Mulberry, across its Canadian range, in 2001 for the OMNR. The Royal Botanical Gardens staff (Paul O'Hara, Christine Thuring, Tyler Smith, Carl Rothfels, Sean Spisani, and Jennifer Sylvester) completed Red Mulberry inventories, ELC mapping and health assessments of trees in the Hamilton area. John McLaughlin and Sylvia Greifenhagen (Ontario Forest Research Institute) completed a pathological survey and provided disease management recommendations for Red Mulberry in southern Ontario. Tim Pearce, of the University of Michigan, identified gastropod specimens from Point Pelee National Park and provided information on their ecology. Bill Stephenson (former Conservation Biologist, Parks Canada Agency [PCA]) provided significant input into the earlier management plan developed for the Point Pelee National Park population. Paul Prevett is acknowledged for his initiative in doing a recovery plan for a plant species when the system was only looking at animal species.

Appreciation is expressed to the recovery team who participated actively in developing and reviewing many versions of this recovery strategy. The OMNR and World Wildlife Fund Canada (WWF) provided funding respectively for the early surveys and the later population biology studies. PCA matched the WWF funding and supported the preparation of the Point Pelee National Park management plan and the later pathological survey. Earlier versions of this recovery strategy, including the field observations, meetings, and report preparation, were supported by the OMNR. Research on hybridization between Red and White Mulberry was conducted by Kevin Burgess at the University of Guelph (Burgess 2004a) under the supervision of Brian Husband and was supported primarily by the Endangered Species Recovery Fund, (sponsored by WWF and Canadian Wildlife Service), as well as OMNR, Natural Resources Canada, Canadian Forest Service, and the University of Guelph Botany Department. Brett Groves, Coordinator, Essex County Stewardship Network, is thanked for his forestry expertise. OMNR's NHIC, Ontario Parks, and Land Information Ontario, the North American Atlas, Parks Canada Agency, Royal Botanical Gardens, Niagara Peninsula Conservation Authority, Essex Region Conservation Authority, Janas et al. (2001), Conservation Halton, Hamilton Region Conservation Authority, and Gerry Waldron are thanked for their contributions of data layers used to map critical habitat. All of these individuals and supporting agencies are gratefully acknowledged.

Finally, special mention should be made to Rebecca Hay and Carrie Mackinnon, both former Species at Risk Biologist Interns with OMNR, Guelph District as well as Vicki McKay, Kim Borg, Ed Paleczny, and Gary Allen of PCA who greatly assisted in addressing numerous and complex edits and reformatting of the document to current formatting standards. Finally, thanks go to the many people who have commented on drafts of the document.

Preface

This recovery strategy addresses the recovery of Red Mulberry across its native range in Canada, (i.e. the Carolinian Life Zone of southern Ontario).

The Minister of the Environment is the "competent minister", on behalf of both Parks Canada Agency and Environment Canada, for this species under SARA. Parks Canada Agency adapted this recovery strategy, in cooperation with Environment Canada, from a more detailed draft document prepared by the OMNR, which itself was based on a document originally developed by the Red Mulberry Recovery Team. The Royal Botanical Gardens; Hamilton, Niagara Peninsula, and Halton Conservation Authorities; Niagara Parks Commission; Ontario Forest Research Institute; Nature Conservancy of Canada; academia; and private consultants all provided valuable contributions. All responsible jurisdictions reviewed the strategy.

Executive summary

Red Mulberry (Morus rubra) is an understory tree of moist, eastern North American forests, woodlands, and talus communities. In Canada, it has been confirmed as extant in 21 locations in two broad regions within the Carolinian Life Zone of southern Ontario: 1) Essex County and the Municipality of Chatham-Kent and 2) Niagara, including the cities of Hamilton and Burlington. Only 10 sites have five or more individuals. This species' range is contracting and its numbers are declining. In 2000, the Committee on the Status of Endangered Wildlife in Canada (COSEWIC) designated Red Mulberry as Endangered because of its small and declining number of mature individuals (under 250) and its fragmented population.

Red Mulberry is threatened with extirpation by the non-native and more aggressive White Mulberry (Morus alba), with which it freely hybridizes. Other significant threats include habitat loss and fragmentation, disease, which is often facilitated by various stress factors, and the impacts of nesting Double-crested Cormorants. Threats posed by other exotic species and grazing by White-tailed Deer and snails are of lesser concern.

The recovery of Red Mulberry is believed to be technically and biologically feasible. The population and distribution objectives for Red Mulberry are to maintain all currently existing populations of the species across its Canadian (Ontario) range and to prevent further decline in the number of individuals across the species' range. These objectives will be revisited once new information becomes available, particularly as genetic work confirms the total number and location of pure Red Mulberry trees in Canada. The Red Mulberry Recovery Team has been actively working to protect and recover this species since 1998. Recovery will be achieved through critical habitat protection, habitat restoration, population enhancement, protection and restoration of genetic integrity, management of the impacts of nesting Double-crested Cormorants and grazing species, community support and stewardship, monitoring, and enhancing knowledge and understanding of the species.

Knowledge of the existing Red Mulberry populations, their demography, population dynamics, pollination distances, habitat requirements, stress factors and disease needs to be updated. Efforts need to be made to locate previously undocumented trees and/or populations. Genetic testing of trees for hybrids and Morus murrayana and monitoring the results of White Mulberry removal and Red Mulberry enhancement activities, and the changing nature of the resulting populations is also necessary. A population viability analysis is needed, as is an understanding of the factors that will increase the success of Red Mulberry establishment.

This strategy identifies critical habitat range wide on public and private lands to the extent possible with the information that is currently available. The approach includes protection of a tree root zone area plus intervening forest, woodland, and talus habitats between trees 999 m or less apart. Biophysical attributes of critical habitat are defined and examples of activities likely to result in the destruction of critical habitat and their effects are outlined. A schedule of studies lists additional work necessary to complete critical habitat identification in Canada. Progress toward recovery will be assessed in five years according to the performance measures identified. One or more action plans related to this recovery strategy will be completed by March 2018.

Recovery feasibility

Recovery of Red Mulberry in Canada is considered biologically and technically feasible. The species meets all four criteria presented in the draft Government of Canada Species at Risk Act Policies (2009), as described below, although some caveats exist.

1. Individuals of the wildlife species that are capable of reproduction are available now or in the foreseeable future to sustain the population or improve its abundance.
   Within the native Canadian populations of Red Mulberry, it is believed that approximately 322 pure strain individuals exist, many of which are capable of reproduction now or in the near future. However, confirmation of the genetic purity of individuals identified based on morphology is required and further analysis of all individuals is needed to determine if any are actually Morus murrayana, a newly discovered mulberry species in North America. This work may reduce the known Red Mulberry population size in Canada. Red Mulberry trees can be propagated and cultivated from seeds or summer cuttings and can be established as seedlings within existing habitats to improve abundance.

2. Sufficient suitable habitat is available to support the species or could be made available through habitat management or restoration.
   Native Red Mulberry is confined to the Carolinian Life Zone of Canada (located within Ontario), occurring in moist, forested habitats. There is currently believed to be sufficient suitable habitat to support the long-term survival of Red Mulberry populations. Sustaining and restoring Carolinian woodlands is important for the re-colonization of Red Mulberry in currently unoccupied areas. Large-scale stewardship projects are currently taking place in Carolinian Canada through projects such as the Big Picture Network.

3. The primary threats to the species or its habitat (including threats outside Canada) can be avoided or mitigated.
   Each core population is located completely or almost entirely on conservation lands, providing additional protection to that already afforded by legislation. It is believed that the major threats to Red Mulberry can be mitigated, at least to some extent, through management techniques and protection. However, while local efforts may be able to reduce White Mulberry numbers within and/or adjacent to Red Mulberry populations, elimination of White Mulberry in southern Ontario is not possible or feasible. Similarly, while the impacts of nesting Double-crested Cormorants may be managed, they will not be eliminated. As such, the long term viability of the Middle Island and East Sister Island Red Mulberry populations cannot be guaranteed. Lastly, it may not be possible to influence some factors like drought and low soil fertility that stress Red Mulberry trees or to prevent stressed individuals from being invaded by secondary pathogens that may lead to their decline and death. Given that 11 populations consist of only one or two individuals each, such threats may lead to loss of the smaller, non-core Red Mulberry populations.

4. Recovery techniques exist to achieve the population and distribution objectives or can be expected to be developed within a reasonable timeframe.
   Recovery techniques such as habitat restoration and population enhancement, White and hybrid Mulberry removal, and Red Mulberry augmentation exist and can be implemented to support the achievement of the Red Mulberry population and distribution objectives.

1. COSEWIC species assessment information

• Date of assessment: May 2000
• Common name (population): Red Mulberry
• Scientific name: Morus rubra
• COSEWIC status: Endangered
• Reason for designation: Few small declining disjunct populations remain within a geographically restricted area. They are threatened by hybridization with an alien species, a blight disease, and habitat degradation.
• Canadian occurrence: Ontario
• COSEWIC status history: Designated Threatened in April 1987. Status re-examined and uplisted to Endangered in April 1999. Status re-examined and confirmed Endangered in May 2000. May 2000 assessment based on new quantitative criteria applied to information from the existing April 1999 status report.

2. Species status information

Red Mulberry is listed as Endangered on Schedule 1 of Canada’s Species at Risk Act (SARA 2002) and is similarly listed on the Species at Risk in Ontario List under Ontario’s Endangered Species Act, 2007. It reaches the northern edge of its global range in southern Ontario. The Canadian distribution represents a small portion of the entire breeding range in North America and is estimated to be less than 1% of the global distribution (Ambrose et al. 1998). Red Mulberry is considered imperiled in Ontario (S2) and Canada (N2), but occurs as an exotic species in British Columbia. It is at risk of extirpation (Michigan, Vermont, and Massachusetts), or possibly extirpated (Minnesota) in a few other range-edge states, although it is considered secure in the United States (N5), particularly within the central portion of its range, and around the globe (G5) (NatureServe 2010). Additional detail is available on the NatureServe website.

3. Description of the species and its needs

3.1 Species description

Red Mulberry is a dioecious^{footnote 1[1]}, although sometimes monoecious^{footnote 2[2]} understory tree that typically reaches a height of 6 to 18 m (Ambrose 1987). The flowers are wind-pollinated, yellowish to reddish-green catkins^{footnote 3[3]} that bloom in early spring (Ambrose 1987). Red Mulberry trees produce a moderate quantity of deep, red-coloured fruit that mature yearly in mid to late July (Ambrose 1987). The large, heart-shaped leaves are serrate ^{footnote 4[4]}, long tipped, rough, and hairy and may have one to three lobes. Red Mulberry can be difficult to distinguish from White Mulberry (M. alba) and their hybrids (Ambrose 1987, 1999). Field guides that are representative of Red Mulberry before the introduction of White Mulberry in North America include: Peattie (1950), Braun (1961), Harlow and Harrar (1969) and Tomlinson (1980).

3.2 Species needs

Across its North American range, the best site conditions for Red Mulberry are found in moist, sheltered coves near streams (Martin et al. 1961). In Canada, the species is native to the Carolinian Life Zone in Ontario. There, it occurs in fresh (damp) to moist, well-drained, forested habitats, including floodplains, bottomlands, the slopes and ravines along the southern portion of the Niagara escarpment and in swales ^{footnote 5[5]} on some western Lake Erie sand spits (Ambrose 1999). It occurs on sandy soils in the Essex-Chatham-Kent area and on limestone-based, loamy soils on the Niagara Peninsula (Ambrose 1999). While moderately shade tolerant, forest openings of exposed mineral soil, free of competition, appear to promote better recruitment (Ambrose 1999). Seedlings are sensitive to the heat of summer (Ambrose 1987).

As a wind pollinated species, groupings of trees within the pollen dispersal range are important to ensure the production of sufficient, viable seeds for colonization of new sites. Birds, and possibly small mammals, are important dispersal agents of Red Mulberry fruit (Ambrose 1987).

4. Threats

Populations of Red Mulberry in Canada face four significant threats listed in order of importance: hybridization; habitat loss and fragmentation, impacts from nesting Double-crested Cormorants, and disease and the stress factors that make trees susceptible. Threats posed by other exotic species and grazing by White-tailed Deer and snails are of lesser concern. Table 1 classifies each threat.

4.1 Hybridization

Hybridization with White Mulberry is the most significant, population level threat to Red Mulberry in Canada. White Mulberry was introduced from eastern Asia for the silkworm industry. It has naturalized across eastern North America and freely crossbreeds with Red Mulberry (Farrar 1995, Waldron 2003). Almost all Red Mulberry populations in Canada occur in communities mixed with White Mulberry; with hybrids between the two species common (Ambrose 1999). Burgess (2004a, Burgess et al. 2005) found that 53.7 % of the Red Mulberry trees in six of the core populations (five or more individuals less than 1 km away from at least one other individual) in southern Ontario were hybrids. Of those hybrids, approximately 67% were genetically more similar to White Mulberry than Red. Based on an analysis of the pollen pool in two different locations, Red Mulberry pollen production per tree is similar to that of hybrid and White Mulberry trees. However, because White and hybrid Mulberry trees are more common than their native counterpart, only 8% of the total mulberry pollen rain comes from the native Red Mulberry (Burgess et al. 2008b). Selective removal of White and hybrid mulberry trees in a 50 m diameter around reproductive, female Red Mulberry trees resulted in a 14% increase in pure Red Mulberry seed produced by those individuals (Burgess et al. 2008b). This shows that Red Mulberry is experiencing a strong mating disadvantage associated with its low abundance. The reduction in Red Mulberry offspring was found to be largely attributable to crossbreeding with hybrid trees.

From observations at Fish Point Provincial Nature Reserve, on Pelee Island, where frequent tree blow-downs have occurred, it appears that White and hybrid Mulberry trees establish naturally at a high rate while Red Mulberry seedlings are rarely encountered (K. S. Burgess pers. comm.). Transplant experiments show that seedling and juvenile survival and fitness were much higher for White Mulberry and their hybrids than Red Mulberry in all environments and that no habitat differentiation occurred between Red, White, and hybrid Mulberry trees that could shelter Red Mulberry from the effects of hybridization (Burgess and Husband 2006). In addition, offspring from female White Mulberry trees were more likely to survive than those from female Red Mulberry trees (Burgess and Husband 2004).

The large number of White Mulberry trees and hybrids across the landscape, and the genetic makeup of the hybrids, suggest that the Red Mulberry is being genetically assimilated by White Mulberry. Given the negative effect that hybridization has on mating and establishment in Red Mulberry (Burgess 2004a), it is likely that, without recovery action, hybridization may result in the extirpation of pure Red Mulberry in Canada. Furthermore, habitat disturbance promotes hybridization with rare taxa (Wolf et al. 2001).

4.2 Habitat loss and fragmentation

Loss of suitable habitat poses a threat to Red Mulberry of only slightly lesser magnitude to that of hybridization. Land clearing for agriculture, industry, urban development, and utility and transportation corridors has greatly reduced the amount of natural wooded habitat in Carolinian Life Zone of southwestern Ontario. In some areas within the historical range of Red Mulberry, less than 3% forest cover remains, much of which is highly fragmented (Larson et al. 1999). The historical range of Red Mulberry in Canada once extended through eastern Toronto to Whitby, but these sites have disappeared (Figure 2), likely due to land clearing and habitat degradation (Ambrose 1987). Two populations in the Niagara Region have been lost to construction in the last 20 years (G. Meyers pers. comm. 1985), and others were likely impacted by valley infilling and development adjacent to what are now small populations. In addition, natural events, like the June 6, 2010 Harrow to Leamington tornado that passed near one of the Essex County woodlands containing a small Red Mulberry population, have the potential to eliminate populations. The resultant increased distances between populations, particularly the smaller ones, enhances their susceptibility to natural randomly occurring events and/or anthropogenic impacts that could lead to extirpations of additional species' occurrences. Beyond clear cutting, other high intensity forestry practices (high grading or diameter limit cuts) can damage vegetation, cause soil compaction which may result in reduced Red Mulberry establishment, cause soil disturbance which may promote increased establishment of exotic plants and increase evaporation resulting in decreased soil moisture levels thereby increasing drought-related stress on individual trees.

4.3 Nesting double-crested cormorants

Ontario’s Double-crested Cormorant (Phalocrocorax auritus) population has increased dramatically over the past 30 years. Large colonies of nesting cormorants are threatening the long-term persistence of Red Mulberry populations and their habitat on Middle Island (10 trees in 2002/3 [North-South Environmental Inc. 2004]) and East Sister Island (five trees [S. Dobbyn unpub. data 2009, NHIC unpub. data 2010]) in the western basin of Lake Erie. Research has shown that cormorants impact trees in their breeding locations by physically breaking branches, stripping foliage for nesting material (Korfanty et al. 1999) and through the deposition of excrement on trees, leaves, and soil. The latter can affect photosynthesis as well as soil chemistry (Hobara et al. 2001, Hebert et al. 2005).

Since 2000, an average of 4 897 nests have been recorded on Middle Island, while an average of 4 752 have been recorded on East Sister Island during the same period (Parks Canada unpub. data). Double-crested Cormorant population estimates for the islands, 24 485 and 23 760 respectively, are based on an average of 2.5 adults (includes non-breeding individuals loafing around each island) and 2.5 chicks per nest (Hatch and Weseloh 1999; T. Dobbie pers. comm. 2010). On Middle Island, cormorant nests have been found in Red Mulberry trees as well as in adjacent trees, with all but one Red Mulberry tree being negatively impacted. One Middle Island tree appears to be dead and another nearly so (T. Dobbie pers. comm. 2010). This population, in particular, is threatened with extirpation. On East Sister Island, the population may be less impacted as three of five trees are in areas of low to moderate cormorant nesting while another, in an area of more extreme impacts, appears to be faring well due to its location in a patch of lower trees and shrubs not yet used for nesting by cormorants (S. Dobbyn pers. comm. 2010).

4.4 Disease and causative stress factors

Red Mulberry is known to suffer from twig blight, twig dieback, cankers, and root rot (Ambrose et al. 1998). Health assessments of four populations of Red Mulberry indicate that some populations are in very poor health, suffering population-level declines described as a "gradual, general deterioration" (McLaughlin and Greifenhagen 2002; Spisani et al. 2004). The former study concluded that no single pathogen was responsible for the disease symptoms. Rather, several opportunistic, canker-causing pathogens and two opportunistic root disease pathogens affected the diseased trees. These pathogens are not known to infect healthy tissues, but can successfully cause damage to stressed and weakened hosts. Probable factors causing such stress include drought, low soil fertility and/or poor or suppressed canopy position. The Fish Point Provincial Nature Reserve and Point Pelee National Park populations were not found to be as healthy as the one at Rondeau Provincial Park due to a lower water table and less developed Red Mulberry tree canopies as a result of competition with neighbouring trees. The Royal Botanical Gardens population was found to have a broad range of health conditions based on more fertile and moist soils, but often suppressed canopy position (McLaughlin and Greifenhagen 2002).

Other research indicates that the species is highly sensitive to air pollution, with high levels likely making the species more susceptible to disease (Little 1995). In West Virginia, ozone damage to Red Mulberry leaves is believed to increase susceptibility to an opportunistic twig canker disease (Nectria cinnabarina) leading to the death of whole trees (O. Loucks pers. comm. 1996). Areas of reduced air quality may also be impacting populations through nitrogen enrichment, which has been identified to have a serious impact on natural grasslands (Wedin 1992). Similarly, soil enrichment from agricultural pollution may negatively impact soil microbes, which could make Red Mulberry habitats and populations more susceptible to White Mulberry colonization and hybridization. Studies of mycorrhizal ^{footnote 6[6]} functioning on other species have established a negative impact of nitrogen deposition, causing mycorrhizae to become more parasitic^{footnote 7[7]} on plants rather than having the usual mutualistic^{footnote 8[8]} relationships (Allen 1991). Given that many of these stress factors can, and do, occur together, they may have cumulative stress effects on Red Mulberry, increasing susceptibility to attack by opportunistic pathogens, leading to reductions in population size and potential extirpations.

4.5 Other threats

The following are either unconfirmed threats or threats considered to be of low concern relative to the four primary threats listed above.

4.5.1 Other exotic species

Other invasive species, beyond White Mulberry, may negatively impact Red Mulberry or/and its habitat. Several introduced insect species are increasing their distribution across southern Ontario. Emerald Ash Borer (Agrilus planipennis) and Asian Long-horned Beetle (Anoplophora glabripennis) are two insects of high concern due to their invasive nature and ability to infest and kill healthy trees. The Emerald Ash Borer primarily targets ash species while the Asian Long-horned Beetle attacks a variety of tree species. The expansion of either or both insect ranges could alter forest composition and Red Mulberry habitat, with unknown impacts to Red Mulberry. Invasive plant species, such as European and Glossy Buckthorn (Rhamnus cathartica and R. frangula), Norway Maple (Acer platanoides), Tree of Heaven (Ailanthus altissima), European Alder (Alnus glutinosa), Garlic Mustard (Alliaria petiolata), and Dog-strangling Vine (Vincetoxicum nigrum), may pose a threat to mature Red Mulberry trees or their seedlings by aggressively competing for light, producing chemicals toxic to other plants or inhibiting mycorrhizal activity (Vaughn and Berhow 1999).

4.5.2 Herbivory

The fruit of Red Mulberry is an attractive food source of birds and small mammals, which, if eaten and dispersed before it is fully mature, may result in lower regeneration success (Johnson and Lyon 1976). High populations of gastropods can hinder seedling growth. Grazing by eight species of native snails and slugs was observed at Point Pelee National Park (T. Pearce pers. comm. 1992) to effectively eliminate seedlings (Ambrose 1991). Gastropod impacts at other sites are unknown. In areas of high deer populations, browsing of Red Mulberry has been observed and is a further hindrance to the establishment of new seedlings (Ambrose 1993, Thompson 2002b).

5. Population and distribution

5.1 Population and distribution context

In 2000, the Committee on the Status of Endangered Wildlife in Canada (COSEWIC) designated Red Mulberry as Endangered because of its small and declining number of mature individuals (under 250) and its fragmented population (COSEWIC 2010).

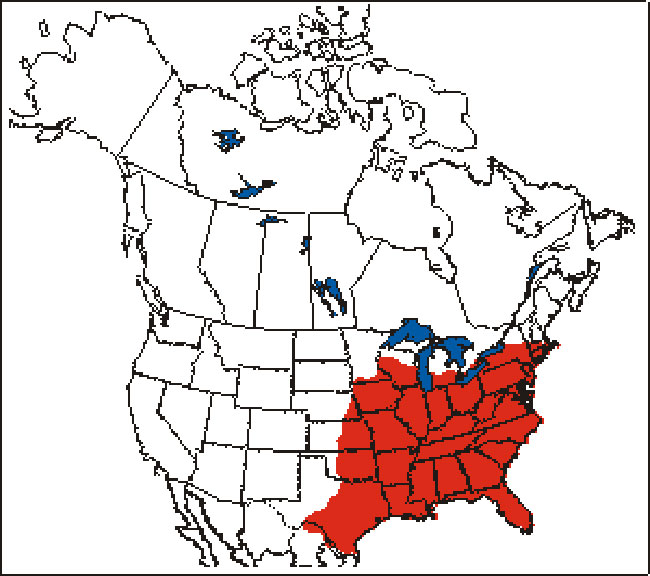

Red Mulberry reaches the northern edge of its range in southern Ontario where it is confined to the Carolinian Life Zone (Figure 1). While its range is somewhat diminished, there are no records to indicate that it was ever common or widespread here (Ambrose 1987).

Enlarge Figure 1 (PDF)

COSEWIC last assessed the species in 2000 based on 10 known locations, including six core populations of five or more trees, in two broad regions: 1) Essex County and the Municipality of Chatham-Kent, including Point Pelee National Park and Pelee, Middle, and East Sister Islands, adjacent to western Lake Erie and 2) Niagara, including the cities of Hamilton and Burlington. Occupation of these two areas may correspond to different historical migration paths from the central part of the range in the United States. The forest habitats in these two regions are quite different; Red Mulberry in Niagara occurs along the moist, calcareous ^{footnote 9[9]} Niagara Escarpment, while habitat along the Lake Erie shore is more open and sandy. These disparate ecological conditions appear to have given rise to genetic differentiation and local adaptation within Red Mulberry (K. S. Burgess pers. comm.).

Twenty-one extant populations (separated by at least 1 km) have now been confirmed (Table 2 and Figure 2). Of those, 10 are core populations of five or more trees (Thompson 2002b, Burgess et al. 2008a, Natural Heritage Information Centre [NHIC] unpub. data 2010). Of those 10, all are completely or almost entirely located on public or conservation lands. However, the impacts of nesting Double-crested Cormorants on the vegetation of Middle and East Sister Islands, in the western basin of Lake Erie, raise questions as to the long-term viability of these two populations. The remaining 11 populations, having only one or two trees each, may not be viable unless recovery work is undertaken to elevate their population size and minimize threats.

Overall, recruitment is low at all sites (K. S. Burgess pers. comm.). Red Mulberry seedlings are rarely encountered at Fish Point Provincial Nature Reserve (K. S. Burgess pers. comm.) and have only been infrequently observed in more stable forest communities, such as at Ball’s Falls over the past 15 years. Although first year seedlings have been observed germinating at the edge of a gravel path under large fruiting trees at Point Pelee National Park, they did not survive for more than two years (Ambrose 1987). Numerous pollination experiments suggest that inbreeding depression in Red Mulberry is minimal (Burgess 2004a), although direct comparisons with Red Mulberry crosses within larger extant populations across the species range have not been made.

The largest population in the Niagara/Hamilton/Burlington region consists of approximately 155 trees of all age classes. The largest population in the Essex/Chatham-Kent region consists of approximately 55 trees of all ages. The total number of Red Mulberry trees, of all age classes, across the Canadian landscape is approximately 322 (Janas et al. 2001; Burgess et al. 2008a; Essex Region Conservation Authority unpub. data 2008; Parks Canada Agency unpub. data 2008; Ontario Parks unpub. data 2008, 2009; Niagara Peninsula Conservation Authority unpub. Data 2009; Royal Botanical Gardens unpub. data 2009; NHIC unpub. data 2010; and G. Waldron, pers. comm. 2010). Apparent increases in overall population size in recent years are due to the location of older, previously undiscovered trees, rather than recovery of the population.

The Canadian distribution of Red Mulberry shows decline when compared to historical records (Figure 2). A total of 36 occurrences have been recorded for Red Mulberry. However, five of these are now considered extirpated and another 10 historic (not observed in the past 20 years). The northern limits of the Red Mulberry range once extended to Whitby, but have since contracted south to the Burlington area (Ambrose 1987). At Point Pelee National Park, the loss of three genetically pure trees has been documented since the late 1990s (Burgess et al. 2008a).

At some other sites, only hybrid forms can now be located; indicating that Red Mulberry likely occurred there in the past, but has been swamped by hybridization with the exotic White Mulberry (Ambrose 1999). The recorded loss of occurrences, as well as individual trees within occurrences, combined with minimal observed recruitment, indicates a decline is continuing.

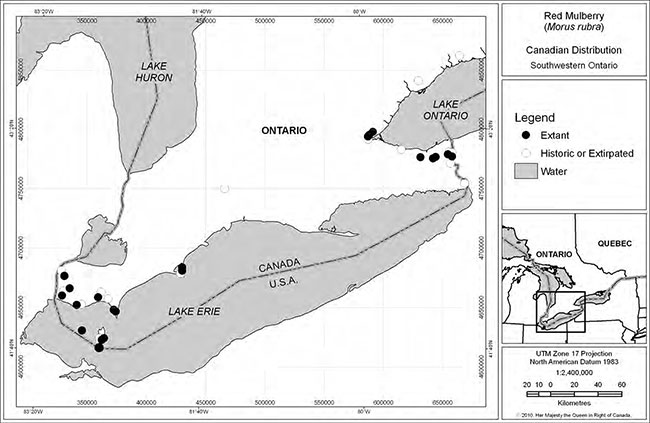

Enlarge Figure 2: Canadian distribution of Red Mulberry (updated from Thompson 2002b) (PDF).

5.2 Population and distribution objectives

The goal of this recovery strategy is to ensure persistence of Red Mulberry in Canada by conserving and restoring functioning metapopulations ^{footnote 10[10]} to long-term stability in the two broad regions of its occurrence.

The population and distribution objectives for Red Mulberry are:

1. to maintain all currently existing populations of the species across its Canadian (Ontario) range and
2. to prevent further decline in the number of individuals across the species' range.

These objectives will be revisited and potentially revised once new information becomes available. In particular, genetic work to confirm the total number and location of pure Red Mulberry trees in some of the largest populations in Canada may necessitate changes to the objectives. Recent research in the United States has identified a distinct species, Morus murrayana, in western Kentucky and the surrounding states, that has been previously identified as Red Mulberry (Galla et al. 2009). Further genetic research is required across the native Canadian population to determine if one or both native species of mulberry are present and to ascertain associated population size(s).

The impacts of nesting Double-crested Cormorants on the Middle Island and East Sister Island populations are severe enough that retention of these two populations cannot be guaranteed. In addition, while attempts need to be made to retain the 11 populations consisting of one or two trees each, given the extremely small size of these populations, the fact each tree bears either male or female flowers, and the potential for extirpation through natural events, long term maintenance of these populations remains uncertain, even if threats are reduced. For instance, the June 6, 2010 tornado that touched down from Harrow to Leamington passed very near one of the Essex County woodlands containing a Red Mulberry population of two trees. Other woodlands along the direct path of the tornado were devastated.

It should be noted that the second objective is not specifically to maintain the number of mature individuals. This is because: (1) the current population estimates are uncertain, given the possible occurrences of hybrids and of a new species; (2) a number of mature individuals are dying and their loss cannot likely be prevented; and (3) the only way to maintain populations is to facilitate regeneration or plant young (non-mature) trees.

The expectation under the objectives, and the best possible scenario, is that in future evaluations Red Mulberry will remain in the "Very Small Total Population" category of COSEWIC, but not fall in the "Small and Declining Number of Mature Individuals" category.

6. Broad strategies and approaches to recovery

6.1 Actions already completed or currently underway

Many Red Mulberry recovery actions have been undertaken since 1998. Included are surveys in the vicinity of extant and historic records and in some areas of suitable habitat, population censuses and heath assessments, Ecological Land Classification (ELC) ^{footnote 11[11]} according to Lee et al. (1998), Conservation Land Tax Incentive Program (CLTIP) (MNR 1998) mapping and landowner contact, prior to regulation of the species under the Endangered Species Act, 1971 (Husband and Burgess 1999, 2000, O'Hara 2000, Janas et al. 2001, Thuring and Smith 2001, Spisani et al. 2004).

Extensive research has been conducted on hybridization between Red and White Mulberry, its impacts, and management activities to address this threat, as well as comparative studies between both species and their hybrids (see Section 4.1) (Burgess 2000, 2003, 2004a, b, Burgess and Husband 2001, 2002a, b, 2004, 2006, Husband and Burgess 1999, 2000, 2001; Burgess et al. 2005, 2008b, Husband et al. 2000, 2001, Janas et al. 2001). This has led to additional knowledge regarding Red Mulberry demography and population dynamics. A pathology study (see Section 4.4) was also completed (McLaughlin and Greifenhagen 2002). Some work has also been done to test for differences in habitat characteristics between the two regions of occupancy and to compare seedlings from the different regions in a common environment (Beavers 1998).

Management activities to date include White/hybrid Mulberry removals conducted as part of an adaptive management study (Rodger 1997, Burgess et al. 2008b) and reductions in the size of the hyperabundant Double-crested Cormorant population on Middle Island to address impacts on plant species at risk, including Red Mulberry, according to the Conservation Plan developed to restore ecological integrity to the island (Parks Canada 2008). Ontario Parks' East Sister Island Park Management Plan has identified nesting Double-crested Cormorants impacts as an issue. A background document, which summarizes a number of studies to investigate the overall effects of cormorants on the island ecosystem, is now in preparation (S. Dobbyn pers. comm. 2010).

The Carolinian Woodlands Recovery Team is leading an ecosystem approach to recovery of the overall ecosystem in which Red Mulberry is found. At the broader landscape level, a gap analysis (Carolinian Canada’s Big Picture Project) is informing restoration efforts to buffer and amalgamate forest fragments in the natural landscape to improve habitat quality by creating larger forest interior habitats.

6.2 Strategic direction for recovery

Broad strategies to recover Red Mulberry have been developed within this wider ecosystem context, with a focus on addressing threats and gathering the information needed to refine and attain the population and distribution objectives to support the recovery of Red Mulberry (see Table 3). 11 ELC is a land and resource classification system that describes and delineates ecosystem units based on ecological factors including vegetation, soil and geologic conditions (Lee et al. 1998).

Recovery and conservation initiatives outlined in this strategy should be coordinated with other recovery teams (e.g. Carolinian Woodland Recovery Team), conservation groups (e.g. local Ontario Stewardship councils and conservation authorities) and restoration initiatives wherever possible.

7. Critical habitat identification

Critical habitat is defined in section 2(1) of SARA as "the habitat that is necessary for the survival or recovery of a listed wildlife species and that is identified as the species' critical habitat in the recovery strategy or in an action plan for the species". This recovery strategy identifies critical habitat range-wide for native Red Mulberry in Canada, to the extent possible at this time based upon the best available information.

Geographical locations of known Red Mulberry trees were obtained from OMNR's NHIC (Figures 6, 7, 9-13, 16, and 19-22) and Ontario Parks (Figures 14 and 19), Parks Canada Agency (Figures 15 and 18), Royal Botanical Gardens (Figure 8), Niagara Peninsula Conservation Authority (Figure 13), Janas et al. (2001; Figure 17), Essex Region Conservation Authority (Figure 24), and Gerry Waldron, M.Sc., Consulting Ecologist (Figure 23). Additional map components were provided by OMNR's Land Information Ontario (Figures 6-24), the North American Atlas (Figures 6-24), Conservation Halton (Figures 6-7), Parks Canada Agency (Figures 15 and 18), Hamilton Region Conservation Authority (Figure 8), Royal Botanical Gardens (Figure 8), and Niagara Peninsula Conservation Authority (Figure 13).

This data was collected by regional, provincial, and federal agencies and their contractors, as well as by non-government organizations and individuals over the course of many years. The majority of trees were located during extensive searches in Hamilton, the Regional Municipality of Niagara and Essex County from 2000 to 2001, as part of the Conservation Land Tax Incentive Program for Endangered species in Ontario (Janas et al. 2001, Thompson 2002a). Targeted surveys at various locations were also completed from 2002 to 2004 and in 2007. Where possible, local experts were consulted regarding the continued existence of individual trees, knowledge regarding their genetic purity, accuracy of the data, and missing information.

Critical habitat has been identified for individuals that have been confirmed as pure-strain. Red Mulberry trees through genetic testing or that were identified as Red Mulberry (as opposed to hybrid or White Mulberry) trees through morphological evaluation by species experts. Critical habitat has not been identified for trees that have been documented as hybrids through the techniques noted above, or for Red Mulberries that are known to have been planted or transplanted, or that have unverified origins. Records that are older than 20 years (pre 1990), with no verification through follow-up surveys, were deemed historical and were also not considered during critical habitat identification.

Critical habitat is based on UTM (Universal Transverse Mercator coordinate system) locations of individual trees, obtained using a GPS (geographic positioning system) unit. Coordinates, obtained using this technology, are expected to be accurate to approximately 10 m or better. Records obtained by Paul O'Hara from the Clappison Escarpment Woods, Waterdown Escarpment Woods, and Borer’s Creek Conservation Area/Rock Chapel Escarpment/Berry Tract populations have been excluded from consideration in critical habitat identification at this time, as data points have been determined to have an accuracy no better than 80- 100 m (N. Finney pers. comm. 2010).

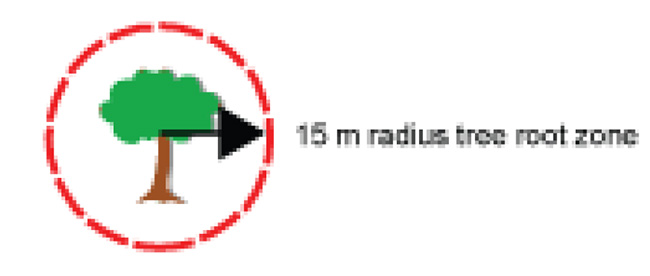

Critical habitat is identified as a circle with a radius of 15 m surrounding the trunk of each live, individual, naturally occurring Red Mulberry tree, encompassing a critical habitat area of 707 m² around each tree (see Figure 3). This is based on a critical root zone definition, used as a zone of protection for trees, of up to 36 times the diameter at breast height (dbh – i.e. the diameter of a tree 1.3 m above ground level) of a tree (Johnson 1997). Given that the maximum-recorded dbh for Red Mulberry in Canada is 40 cm (Farrar 1995), the maximum critical root zone is then calculated to be 15 m (40 cm x 36 = 14.4 m rounded up to the nearest metre). This is supported by a 12.7 m rooting radius reported for a mature White Mulberry tree (dbh not provided) (Stone and Kalisz 1990), which occurs in the same genus as Red Mulberry. To be precautious, the larger of the two values has been applied in the identification of critical habitat.

Figure 3: Conceptual illustration of critical habitat (15 m radius tree root zone) around a single Red Mulberry tree.

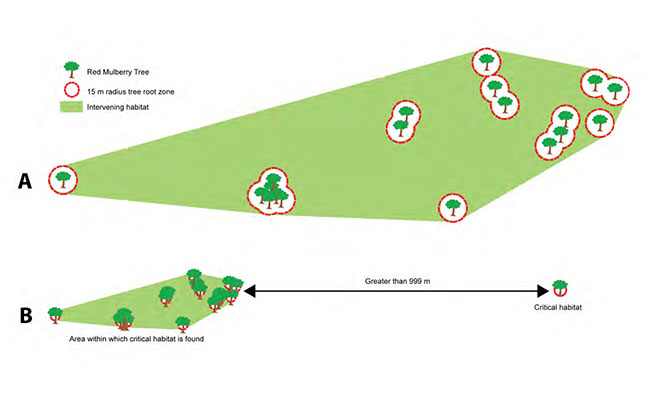

For locations where more than one Red Mulberry tree occurs, critical habitat also includes all Forest ^{footnote 12[12]}, Woodland ^{footnote 13[13]}, and Talus ^{footnote 14[14]} ELC community classes^{footnote 15[15]} that fall within a shape, identified as the area within which critical habitat is found on the critical habitat maps, that encompasses the tree root zone of all Red Mulberry trees that are within 999 m or less of another Red Mulberry tree (see Figure 4A). On Middle Island, critical habitat also includes the Cultural Meadow/Cultural Thicket ELC community series, as this community is in the process of regenerating from former anthropogenic uses and is expected to succeed to woodland and eventually forest. The area within which critical habitat is found is represented by a minimum convex polygon ^{footnote 16[16]} around all Red Mulberry tree root zones falling within 999 m or less of another Red Mulberry tree at that location (see Figure 4B). One kilometre is considered the minimum separation distance needed to place trees into two separate populations rather than a single one (NatureServe 2010). As such, the 999 m value has been selected to ensure protection of all suitable habitats between trees within a Red Mulberry population.

Across the species' range, the biophysical attributes of Red Mulberry critical habitat include moist, but well-drained, areas that have tree cover greater than 35% (Forest and Woodland ELC community classes). This includes:

• floodplains and river valleys, areas where additional light penetrates the tree canopy (e.g. forest gaps and edges),
• Essex County, including Point Pelee National Park, Pelee, Middle, and East Sister Islands and the Municipality of Chatham-Kent: moist swales in sandy soils,
• Niagara Escarpment and Peninsula: limestone-based, loamy soils, plus the Talus ELC community class in areas, especially along benches (flat areas) in the escarpment, where moisture levels remain high.

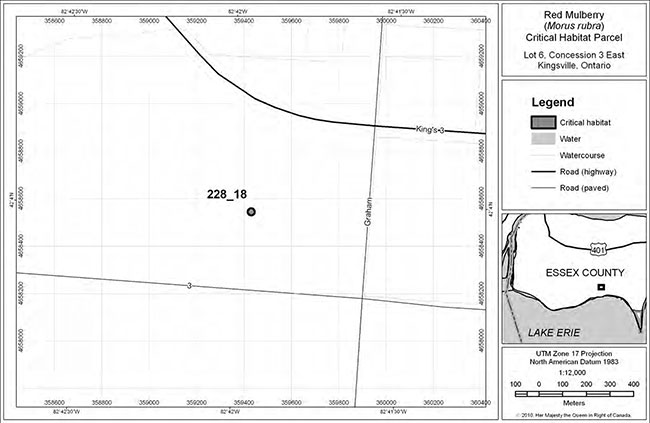

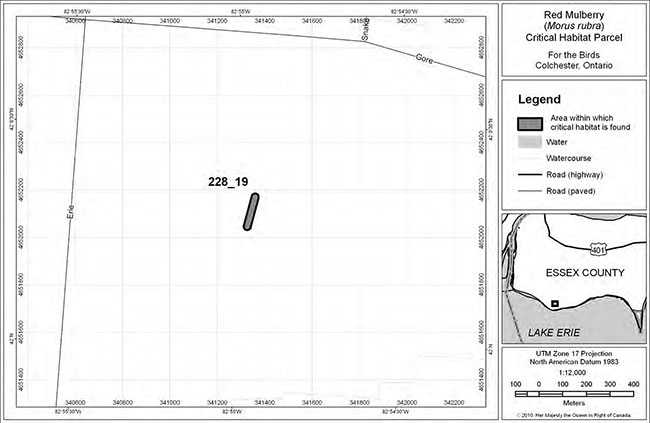

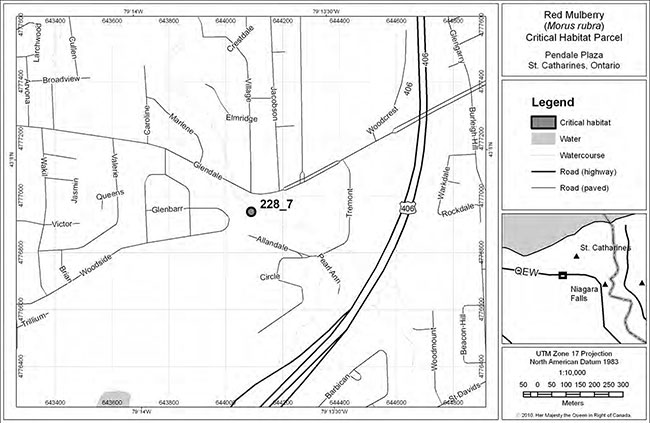

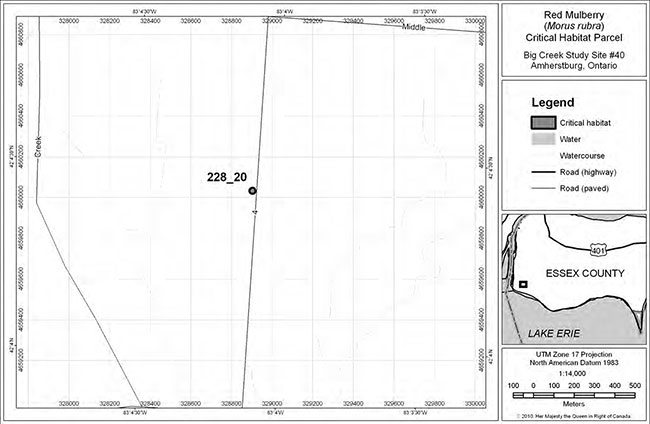

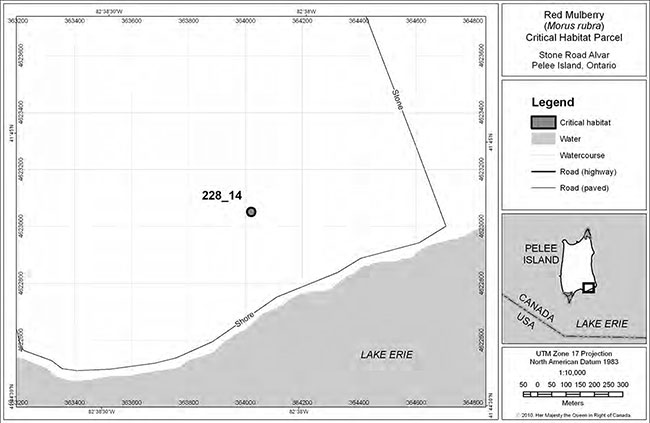

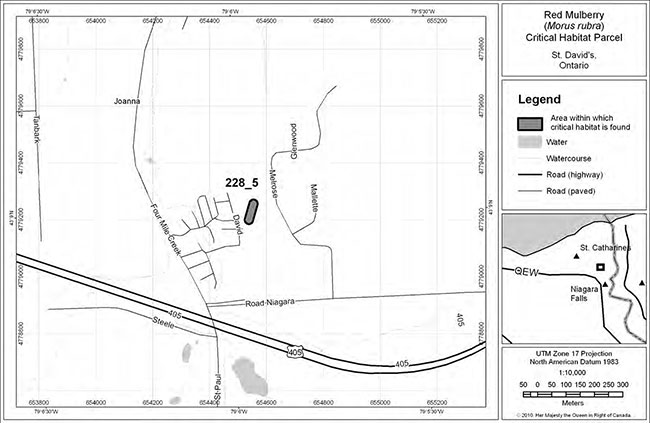

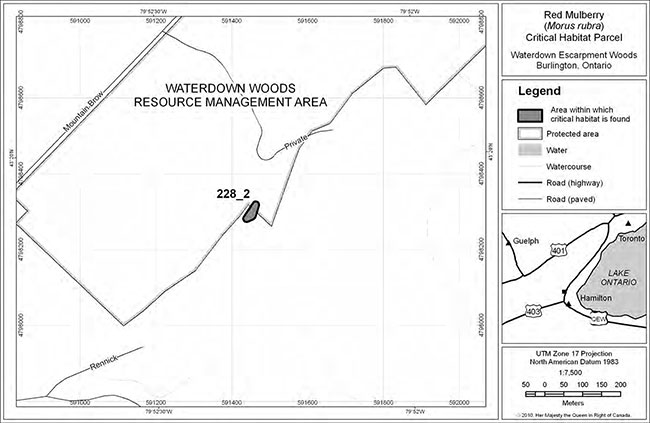

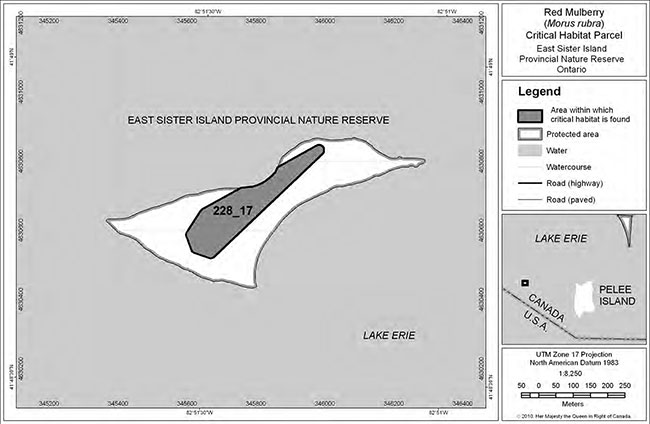

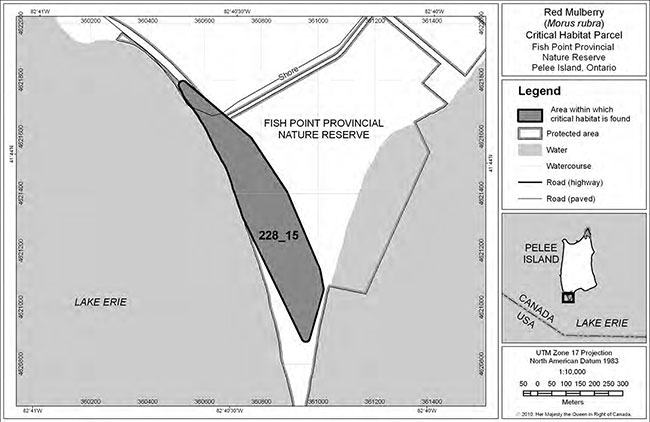

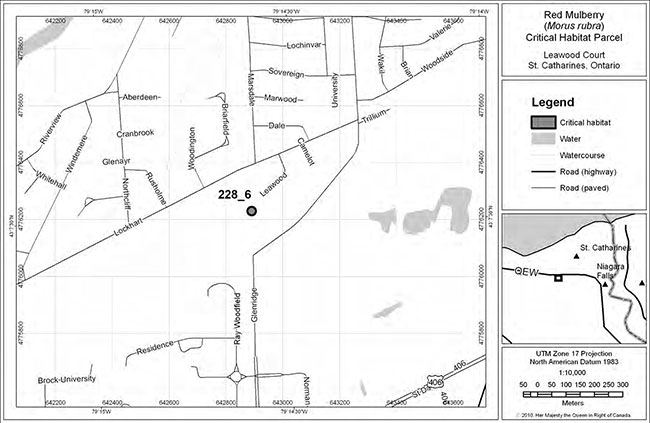

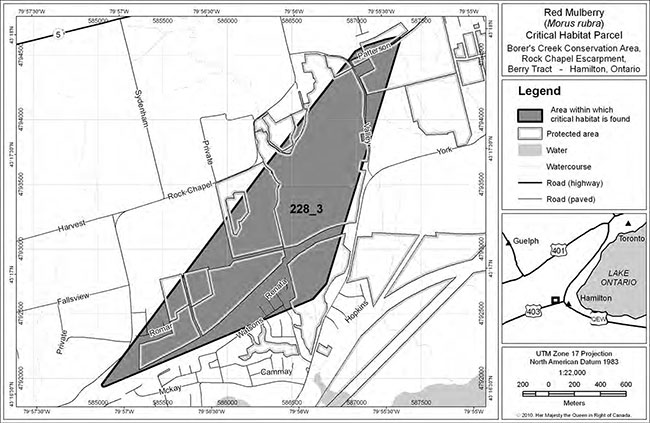

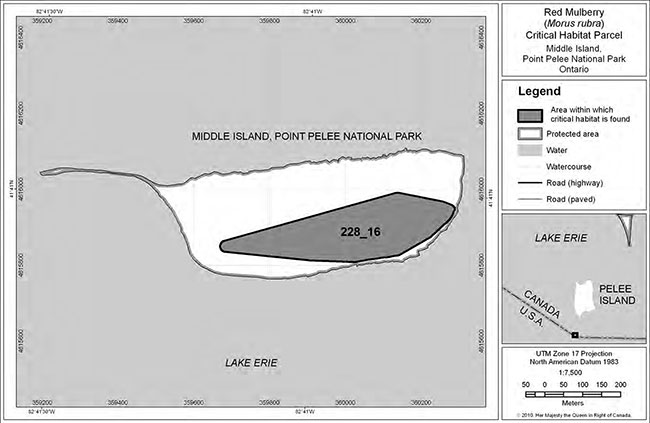

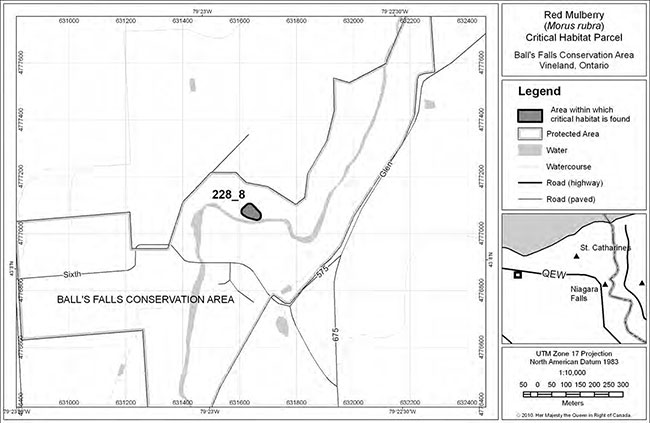

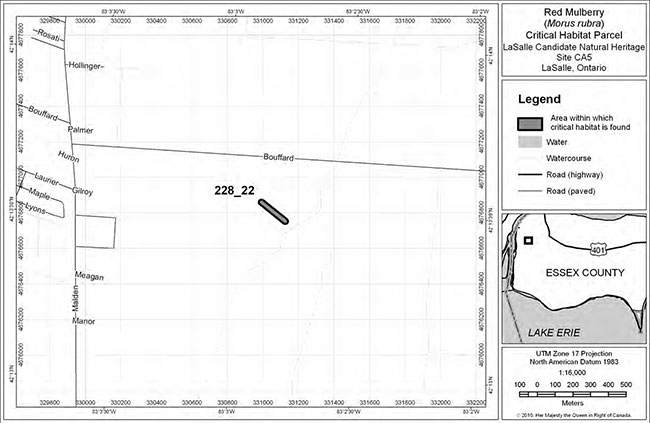

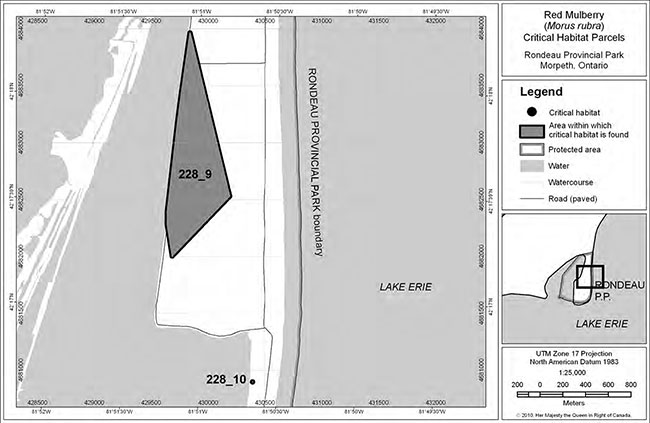

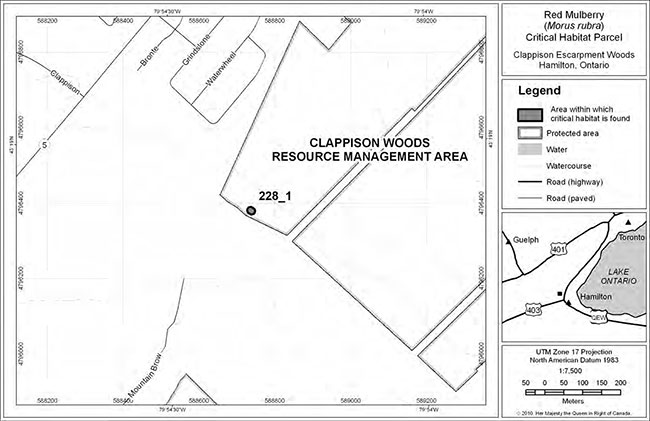

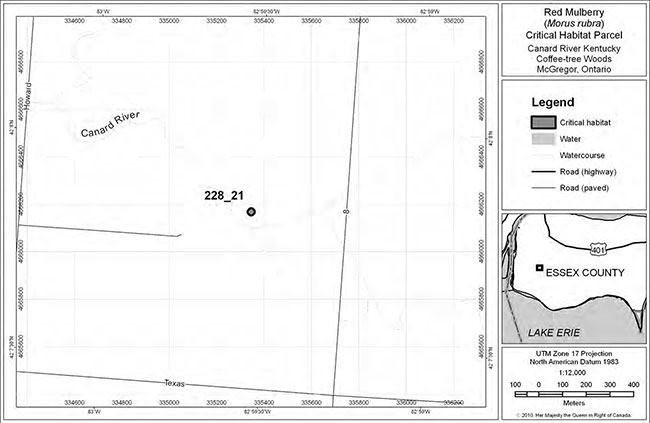

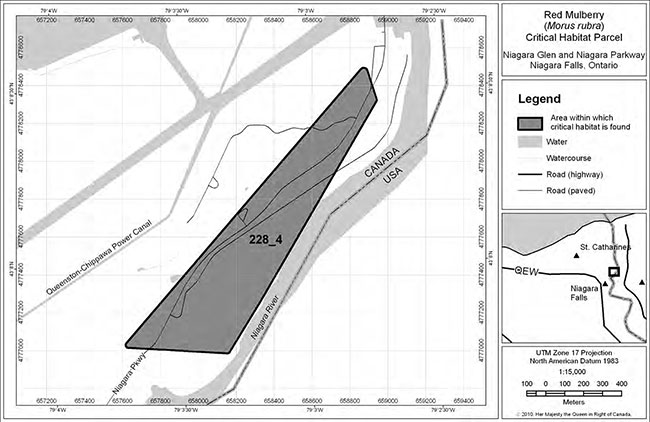

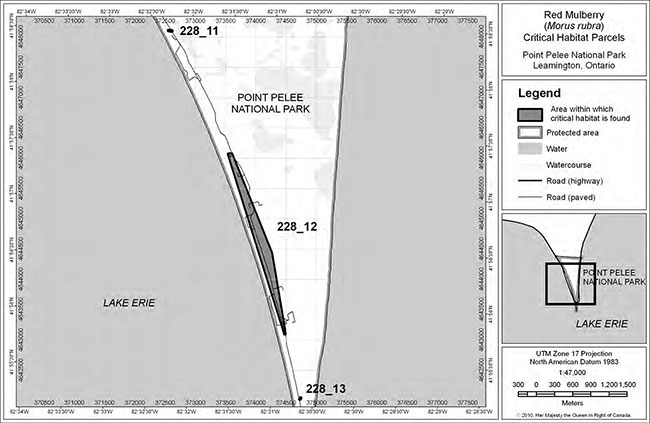

General locations of Red Mulberry critical habitat are shown in Figure 5. Site-specific critical habitat maps for 22 critical habitat parcels are provided in Appendix B. Where a Red Mulberry tree exists within 999 m of another Red Mulberry tree, the area within which critical habitat is found has been mapped. Only the areas within this boundary that meet the biophysical description of critical habitat outlined in this section are critical habitat.

Existing anthropogenic features are excluded from critical habitat as they are not suitable habitats for the long-term persistence of this species. These features include, but are not limited to existing infrastructure (e.g. roads, trails, and parking lots), existing cultivated areas (e.g. agricultural fields), and unnatural vegetation types (e.g. grassed areas and septic beds). In addition, all White Mulberry trees and hybrid mulberry trees are excluded from critical habitat as optimal habitat for Red Mulberry should be free from these trees.

Enlarge Figure 5: General locations of critical habitat for Red Mulberry in Canada (PDF)

7.1 Activities likely to result in the destruction of critical habitat

Examples of activities, in or near critical habitat, likely to destroy critical habitat include, but are not limited to those outlined in Table 4 below.

7.2 Schedule of studies to identify critical habitat

Additional work required to refine the population and distribution objectives and determine if critical habitat identification requires modification to support these objectives for recovery is outlined in Table 5.

Table 5: Schedule of studies for the identification of critical habitat.

8. Additional information requirements

Information gaps still exist and need to be filled in order to meet the population and distribution objectives set out in this recovery strategy. These gaps include:

• Census Surveys and Population Information: Searches need to continue for as yet undocumented trees, recording new distribution, abundance, demography, health, genetic variation, habitat, threats, and trends. Updates are needed for many known populations.
• Habitat Requirements: The habitat of Red Mulberry needs to be fully characterized, including a comparison of habitats in the two regions of its occurrence.
• Hybridization Research: An expansion of the screening of trees for hybrid status is needed. In addition, it is imperative that White Mulberry removal and Red Mulberry enhancement trials, past, present and future, be monitored to evaluate the effect on Red Mulberry recruitment and community response to tree removal so that adaptive management can take place.
• Disease and Causative Stress Factors: Whether the attack of opportunistic pathogens is as a result of stress from drought, low soil fertility, and/or poor canopy position and the severity of those threat(s) needs to be confirmed.
• Pollination: Pollination distances for Red, White, and hybrid Mulberry need to be determined to inform hybrid and White Mulberry management.
• Population Viability Analysis: Information (sex, fecundity, seed predation, germination, seed dispersion, survivorship, recruitment, dispersal) needs to be gathered to complete a population viability analysis ^{footnote 17[17]}.
• Transplantation: Factors that will increase the success of Red Mulberry establishment (e.g. seeds sown in the field vs. the use of older transplants) need to be determined.

9. Measuring progress

Performance measures for evaluating the success in achieving the Red Mulberry population and distribution objectives in five years are as follows:

• Ten core populations and 11 non-core populations of Red Mulberry can be found distributed in two metapopulations (Essex County/Municipality of Chatham-Kent, including Point Pelee National Park and Pelee, Middle, and East Sister Islands, and Hamilton/Burlington/Niagara).
• The genetic composition and purity of trees across the Canadian range is known such that the population and distribution objectives can be revised if necessary (e.g. should trees formerly identified as Red Mulberry be determined to be hybrids or M. murrayana).
• The number of individual Red Mulberry trees of all age classes (approximately 322) has not declined, unless genetic studies determined that trees formerly believed to be Red Mulberry are in fact M. murrayana or hybrids with White Mulberry. Should genetic research determine that there are fewer pure Red Mulberry trees in Canada than previously thought, the target number of trees to be maintained will be lowered based on the findings.
• Habitat suitability has been maintained (Woodland, Forest, and Talus ELC community classes still exist) in areas of critical habitat.

10. Statement on action plans

One or more action plans related to this recovery strategy will be completed by March 2018.

11. References

Allen, M. F. 1991. Ecology of Mycorrhizae. Cambridge University Press. Cambridge, United Kingdom.

Ambrose, J. D. 1987. Status Report on Red Mulberry (Morus rubra, Moraceae) in Canada. COSEWIC. Ottawa, Ontario. 21 pp.

Ambrose, J. D. 1991. Red Mulberry (Morus rubra) Progress Report for 1990-91. Prepared for the World Wildlife Fund and the Canadian Parks Service, Environment Canada. 4 pp.

Ambrose, J. D. 1993. Management Plan for Species Recovery in Canada: Red Mulberry (Morus rubra L.). Prepared for the Canadian Parks Service, Ontario Region, Environment Canada, and Metro Toronto Zoo. West Hill, Ontario. 10 pp. + 3 Appendices.

Ambrose, J. D. 1999. Update COSEWIC Status Report on the Red Mulberry Morus rubra in Canada, In COSEWIC Assessment and Update Status Report on the Red Mulberry Morus rubra in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa, Ontario. 11 pp.

Ambrose, J. D. and the Red Mulberry Recovery Team. 1998. National Recovery Plan for Red Mulberry (Morus rubra L.) (Revised 2001). 28 pp.

Argus, G. W. and J. White. 1987. Morus rubra L. In G. W. Argus and C. J. Keddy (Eds.). Atlas of the Rare Vascular Plants of Ontario, part 3. Natural Sciences Museum, Canadian National Museum. Ottawa, Ontario.

Beavers, R. 1998. Ecological differentiation in southern Ontario populations of Morus rubra (red mulberry). Department of Botany, University of Guelph. Guelph, Ontario. 23 pp.

Braun, E. L. 1961. The Woody Plants of Ohio. Hafner, New York.

Burgess, K. S. 1998 – 2010. Formerly a Ph.D. Candidate working on Red Mulberry hybridization, University of Guelph, now Assistant Professor of Biology, Columbus State University, Department of Biology, College of Science, Georgia. Personal communications.

Burgess, K. S. 2000. Hybridization in endangered populations of Red Mulberry. Field Botanists of Ontario Newsletter. 31(1): 6-8.

Burgess, K. S. 2003. Recovery Planning for Red Mulberry (Morus rubra L.) in Canada. Final report for the Ontario Ministry of Natural Resources.

Burgess K. S., 2004a. The genetic and demographic consequences of hybridization in small plant populations. PhD Thesis. University of Guelph. Guelph, Ontario.

Burgess K. S., 2004b. Ecological impacts of hybridization on the endangered Red Mulberry Morus rubra L.) in Canada: Evaluating mating disadvantage. Final Report for the Ontario Ministry of Natural Resources.

Burgess, K. S. and B. C. Husband. 2001. Hybridization in Canada’s endangered Red Mulberry (Morus rubra L.): Meeting the goals of management and science. Proceedings of the Conservation Research Forum. A. D. Latornell Endowment Fund and the Center for Land and Water Stewardship.

Burgess, K. S. and B. C. Husband. 2002a. The impact of hybridization on the endangered Red Mulberry (Morus rubra L.). In Parks Research Forum of Ontario Proceedings. University of Waterloo. Waterloo, Ontario.

Burgess, K. S. and B. C. Husband. 2002b. Out-planting trials for the Endangered Red Mulberry (Morus rubra L.) in Canada. Endangered Species Recovery Fund Project. Final report for World Wildlife Fund Canada and the Canadian Wildlife Service.

Burgess, K. S. and B. C. Husband. 2004. Maternal and paternal contributions to the fitness of hybrids between red and white mulberry (Morus, Moraceae). American Journal of Botany. 91(11): 1802-1808.

Burgess, K. S. and B. C. Husband. 2006. Habitat differentiation and the ecological costs of hybridization: the effects of introduced mulberry (Morus alba) on a native congener (M. rubra). Journal of Ecology. 94: 1061-1069.

Burgess, K. S., V. L. McKay, and R. Donley. 2008a. Survey of Point Pelee National Park Mainland Red Mulberry Trees.

Burgess K. S., M. Morgan, L. DeVerno, and B. C. Husband. 2005. Asymmetrical introgression between two Morus species (M. alba, M. rubra) that differ in abundance. Molecular Ecology 14: 3471-3483.

Burgess, K. S., M. Morgan, and B. C. Husband. 2008b. Interspecific seed discounting and the fertility cost of hybridization in an endangered species. New Phytologist. 177: 276-284.

COSEWIC. 2010. Wildlife Species Search: Red Mulberry. http://www.cosewic.gc.ca/eng/sct1/searchdetail_e.cfm?id=228&StartRow=21&boxStatus=3&boxTaxonomic=12&location=5&change=All&board=All&commonName=&scienceName=&returnFlag=0&Page=3. [link is inactive]

Dobbie, T. 2010. Ecosystem Management Coordinator, Point Pelee National Park, Parks Canada. Personal communications with V. L. McKay, Species at Risk Recovery Specialist, Parks Canada, Ontario Service Centre.

Dobbyn, S. 2010. Zone Ecologist, Southwest Zone, Ontario Parks. Personal communications with V. L. McKay, Species at Risk Recovery Specialist, Parks Canada, Ontario Service Centre.

Farrar, J. L. 1995. Trees in Canada. Fitzhenry & Whiteside Limited and the Canadian Forest Service, Natural Resources Canada. 502 pp.

Finney, N. 2010. Natural Heritage Ecologist, Conservation Projects, Conservation Halton, Burlington. Personal communication to V. L. McKay and K. Borg.

Forest Stewardship Council, A. C. 2004. FSC Principles and Criteria for Forest Stewardship. (http://www.fsccanada.org/docs/BA7B5940482ABABD.pdf) [link no longer active].

Galla, S. J., L. Brittney, P. Viers, E. Gradie, and D. E. Saar. 2009. Morus murrayana (Moraceae): A new mulberry from eastern North America. Phytologica: 91(1): 105 – 116 pp.

Government of Canada. 2004. Strategic Environmental Assessment: The Cabinet Directive on the Environmental Assessment of Policy, Plan, and Program Proposals. Guidelines for Implementing the Cabinet Directive. Privy Council Office and Canadian Environmental Assessment Agency. Ottawa, Ontario. 10 pp.

Government of Canada. 2009. Species at Risk Act Policies: Overarching Policy Framework. Draft. Environment Canada. Ottawa, Ontario. Electronic monograph in PDF format. 38 pp.

Harlow, W. M. and E. S. Harrar. 1969. Textbook of Dendrology. 5^th Edition. McGraw-Hill, New York, New York.

Hatch, J. J. and D. V. Weseloh. 1999. Double-crested Cormorant (Phalacrocorax autritius). 36 pp. In The Birds of North America. No. 441. (A. Poole and F. Gill, Eds.). The Birds of North America, Inc. Philadelphia, Pennsylvania.

Hebert, C. E., J. A. Duffe, D. V. Weseloh, E. M. T. Senese, and G. D. Haffner. 2005. Unique Island habitats may be threatened by double-crested cormorants. Journal of Wildlife Management. 69(1): 68-76.

Hobara, S., T. Osono, K. Koba, N. Tokuchi, S. Fujiwara, and K. Kameda. 2001. Forest floor quality and N transformations in a temperate forest affected by avian-derived N deposition. Water, Air, and Soil Pollution 130: 679-684.

Husband, B. C. and K. S. Burgess. 1999. Assessing the risks of hybridization in the threatened Red Mulberry (Morus rubra L.). Endangered Species Recovery Fund Project. Final report for World Wildlife Fund Canada and the Canadian Wildlife Service.

Husband, B. C. and K. S. Burgess. 2000. Reducing the risk of hybridization in the threatened Red Mulberry (Morus rubra L.). Endangered Species Recovery Fund Project. Final report for World Wildlife Fund Canada and the Canadian Wildlife Service.

Husband, B. C. and K. S. Burgess. 2001. Evaluating hybridization as a cause of species endangerment: A role for systematics in conservation. Pp. 82-95. In J. B. Phipps and P. M. Catling (Eds.). Proceedings of the Canadian Botanical Association conference symposium on Bioconservation and Systematics.

Husband, B. C., K. S. Burgess, and J. D. Ambrose. 2000. Recovery Planning for Red Mulberry (Morus rubra L.) in Canada. Ontario Ministry of Natural Resources. 11 pp.

Husband, B. C., K. S. Burgess, and J. Ambrose. 2001. Recovery action for Red Mulberry (Morus rubra L.) in Canada. Final report for COSSARO and Ontario Ministry of Natural Resources.

Janas, D., K. S. Burgess, and B. C. Husband. 2001. Endangered Plant Habitat Mapping for Red Mulberry (Morus rubra L.) in Canada. University of Guelph. Prepared for the Ontario Ministry of Natural Resources for the purposes of the Conservation Land Tax Incentive Program (CLTIP). Unpaginated.

Johnson, G. R. 1997. Tree preservation during construction: a guide to estimating costs. Minnesota Extension Service, University of Minnesota.

Johnson, W. T. and H. H. Lyon. 1976. Insects that feed on trees and shrubs. Comstock Publishing, Cornell University Press. Ithaca, New York.

Korfanty, C., W. Miyasaki, and J. L. Harcus. 1999. Review of the population status and management of double-crested cormorants in Ontario. In Symposium on Double-crested Cormorants: Population status and management issues in the Midwest (Tobin, M.E., Ed.). United States Department of Agriculture, Animal and Plant Health Inspection Service. Technical Bulletin 1879. pp. 131-146. December 9, 1997.

Larson, B. M., J. L. Riley, E. A. Snell, and H. G. Godschalk. 1999. The Woodland Heritage of Southern Ontario. Federation of Ontario Naturalists. Don Mills, Ontario.

Lee, H., W. Bakowsky, J. Riley, J. Bowles, M. Puddister, P. Uhlig, and S. McMurray. 1998 Ecological land classification for southern Ontario: First Approximation and its Application. Ontario Ministry of Natural Resources, Southcentral Science Section, Science Development and Transfer Branch. SCSS Field Guide FG-02.

Little, C. E. 1995. The Dying of the trees. Penguin Books. New York, New York. Loucks, O. 1996. Ecologist, Miami University of Ohio. Personal communication.

Martin, A. C., H. S. Zim, and A. L. Nelson. 1961. Mulberry family: Moraceae In American wildlife and plants. pp. 313-314. Dover Publications. New York, New York.

McLaughlin, J. and S. Greifenhagen. 2002. A Pathological Survey and Disease Management Analysis for Red Mulberry in Southern Ontario. Ontario Ministry of Natural Resources, Ontario Forest Research Institute. Sault Ste. Marie, Ontario.

Meyers, G. 1985. Naturalist, Grimsby. Personal communication to J. D. Ambrose.

NatureServe. 2010. NatureServe Explorer: An online encyclopedia of life [web application]. Version 5.0. NatureServe. Arlington, Virginia. Available at http://www.natureserve.org/explorer.

North-South Environmental, Inc. 2004. Vegetation communities and significant vascular plant species of Middle Island, Lake Erie. Prepared for Point Pelee National Park of Canada. 94 pp.

O'Hara, P. 2000. Preliminary Surveys and ELC habitat summaries for Red Mulberry (Morus rubra L.) in Dundas and Burlington, Ontario. Royal Botanical Gardens. Hamilton, Ontario. Unpublished report. 19+ pp.

Ontario Ministry of Natural Resources (OMNR). 1998. Guidelines for mapping endangered species habitats under the Conservation Land Tax Incentive Program. Natural Heritage Section, Lands and Natural Heritage Branch, OMNR. Peterborough, Ontario.

OMNR. 2005. A class environmental assessment for Provincial Parks and Conservation Reserves. Ministry of Natural Resources Environmental Assessment Report Series. OMNR, Peterborough, Ontario.

Parks Canada. 1998. Management Directive 2.4.1 Integrated Pest Management. File: C-6261-0. 11 pp. December.

Parks Canada. 2006. Point Pelee National Park of Canada. http://www.pc.gc.ca/pn-np. (Accessed: September 7, 2007). Current location: http://www.pc.gc.ca/eng/pn-np/on/pelee/index.aspx. [link no longer active]

Parks Canada. 2008. Point Pelee National Park of Canada Middle Island Conservation Plan. 44 pp. Pearce, T. 1992. Assistant Curator, Carnegie Museum of Natural History, University of Michigan. Personal communication.

Peattie, D. C. 1950. A natural history of trees. 2^nd Edition. Houghton Mifflin Company. Boston, Massachusetts.

Rodger, L. 1997. Review of the Exotic Species Management Plan and 1990 to 1996 Activities, Point Pelee National Park. Contract Report #PP96-15. Point Pelee National Park of Canada. Leamington, Ontario. iv + 39 pp.

Species at Risk Act (SARA). 2003. The Canada Gazette, Part III. Volume 25, No. 3. The Queen’s Printer for Canada.

Spisani, S. R., J. L. Sylvester, and C. J. Rothfels, 2004. Inventory and health assessment of the nationally endangered Morus rubra (red mulberry) on Royal Botanical Gardens' properties and adjacent areas. Unpublished report for the Ontario Ministry of Natural Resources, Guelph District. Guelph, Ontario. 62 pp.

Thompson, M. J. 2002a. Endangered Species Habitat Mapping for the purposes of the Conservation Land Tax Incentive Program: Red Mulberry (Morus rubra L.) Ontario Ministry of Natural Resources, Guelph District. Guelph, Ontario. Unpublished report. 24 pp. + appendices.

Thompson, M. J. 2002b. Status Report Update for Red Mulberry (Morus rubra L.) in Ontario. OMNR, Guelph District. Guelph, Ontario. Unpublished report. 11 pp. + appendices.

Thuring, C. and T. W. Smith. 2001. Census Descriptions and Ecological Land Classification Surveys for Red Mulberry (Morus rubra L.) in Hamilton and Halton Regions, Ontario. Royal Botanical Gardens. Hamilton, Ontario.

Tomlinson, P. B. 1980. The biology of trees native to tropical Florida. Harvard University Press. Allston, Massachusetts.

Vaughn, S. F. and M. A. Berhow. 1999. Allelochemicals isolated from tissues of the invasive weed garlic mustard (Alliaria petiolata). Journal of Chemical Ecology 25: 2495-2504.

Waldron, G. 2003. Trees of the Carolinian Forest: A Guide to Species, Their Ecology and Uses. Boston Mills Press. Erin, Ontario. 275 pp.

Waldron, G. 2010. Gerry Waldron M.Sc., Consulting Ecologist. Personal communications. Wedin, D. A. 1992. Biodiversity conservation in Europe and North America I. Grasslands: a common challenge. Restoration and Management Notes. 10(2): 137-143.

Wolf, D. E., N. Takebayashi, and L. H. Rieseberg. 2001. Predicting the risks of extinction through hybridization. Conservation Biology. 15: 1039-1053.

Appendix A: Effects on the environment and other species

A strategic environmental assessment (SEA) is conducted on all SARA recovery planning documents, in accordance with the Cabinet Directive on the Environmental Assessment of Policy, Plan and Program Proposals (Government of Canada 2004). The purpose of a SEA is to incorporate environmental considerations into the development of public policies, plans, and program proposals to support environmentally sound decision-making.

Recovery planning is intended to benefit species at risk and biodiversity in general. However, it is recognized that strategies may also inadvertently lead to environmental effects beyond the intended benefits. The planning process, based on national guidelines, directly incorporates consideration of all environmental effects, with a particular focus on possible impacts upon non-target species or habitats. The results of the SEA are incorporated directly into the strategy itself, but are also summarized below in this statement.

The majority of the broad strategies presented in this recovery strategy will have positive impacts on other species occupying the Carolinian forest, as well as the forests themselves. Many Red Mulberry populations occur in areas where there are other species at risk (e.g. Blue Ash [Fraxinus quadrangulata] and Butternut [Juglans cinerea]). Fragmentation is one of the main threats to Carolinian woodlands. Efforts to protect habitat, increase connectivity among habitat patches, and maintain and restore ecological integrity within the Carolinian Life Zone will inevitably benefit species at risk, as well as many common species found in association with Red Mulberry. Where White or hybrid Mulberry removal occurs or branch removal occurs near heavily shaded Red Mulberry trees, these activities will open the forest canopy, increasing light penetration to the benefit of shade intolerant, native plant species like Blue Ash. Such activities will need to be carefully monitored and managed to prevent a flush of other introduced/invasive species in these areas. Efforts to reduce invasive species will positively benefit other native species that are competing for space and resources. Increases in Red Mulberry abundance due to enhanced seedling recruitment will serve as a food source for birds, and, to a lesser extent, small and mid-sized mammals that feed on and later disperse its fruit.

Some of the strategies could, however, have a negative impact on other species occupying Carolinian forest habitat. Herbicide use to prevent White or hybrid Mulberry from resprouting could impact soil, ground and surface water quality, and damage surrounding vegetation if not carefully applied. To limit these impacts, herbicides should be directly applied through stem injections or through careful painting or wicking of the cut or girdled stems. Herbicide application on Parks Canada lands will need to comply with Integrated Pest Management Directive 2.4.1 (Parks Canada 1998). Where cutting of White or hybrid Mulberry trees occur, careful attention will need to be given to sensitive vegetation and fauna in the vicinity to ensure minimal damage occurs to other species, communities and ecological processes. Removal of larger White and/or hybrid Mulberry trees could potentially disturb nesting activities, damage nests or injure rare or migratory birds, small mammals (including the Southern Flying Squirrel) and other wildlife species utilizing them as habitat. Removal programs will need to take place during the fall to avoid the breeding bird season (May to August) to mitigate potential impacts to birds as well as on herbaceous plants and the understory. Trees are also most sensitive to herbicides during this time period and so this will increase the effectiveness of herbicide treatments. Careful field surveys prior to removal will be needed to determine if other species, including species at risk, will be impacted so that appropriate mitigation measures can be implemented. In addition, areas where trees are to be but down, as well as any access routes to be used for access or tree removal activities, will need to be scouted ahead of time to make sure that other species at risk are not being trampled or harmed. To the extent possible, the number of routes in and out of the areas to be targeted will be minimized. Gaps in the forest created through removals may promote the growth of invasive species. Soil disturbance should therefore be kept to a minimum. Native species recruitment in these gaps should be promoted through plantings, as well as immediate removal of colonizing invasive species, or other means. Depending on the density of White Mulberry removals, understory shade tolerant species may be negatively affected (Parks Canada 2006). In some locations, where White Mulberry occupies a significant proportion of the forest, removal may decrease food and habitat availability for some birds and small animals; however the increased presence of Red Mulberry through enhanced seedling recruitment could alleviate some of these effects. Removal programs targeting White Mulberry and hybrids should involve follow-up monitoring to determine the success of the techniques implemented, in addition to the impacts on other species, vegetation communities and ecological processes and changes in the rate of Red Mulberry hybridization. Removal of competing branches next to heavily shaded trees will also be monitored. In both cases, this will allow for adaptive management and continual adjustment and improvement of recovery efforts. As Red Mulberry is found within the Carolinian Life Zone, an area with a high number of protected and rare species, all monitoring and research activities should take care to minimize or avoid trampling and disturbance to those species.

Invasive species and vegetation removals at Point Pelee National Park may require screening level environmental assessments under the Canadian Environmental Assessment Act (1992, c. 37) (CEAA) to address project specific concerns. Control of insects, disease, and invasive vegetation in provincial parks are included under A Class Environmental Assessment for Provincial Parks and Conservation Reserves (OMNR 2005).

Addressing the large Double-crested Cormorant populations on Middle and East Sister Islands, which could include their control, will adversely affect individual cormorants, but will benefit many species of native plants, especially trees, which are killed by the cormorant’s ammonia- rich excrement. Maintaining the ecological integrity of the island’s Carolinian forest is the target. Efforts to control deer browse will positively benefit forest vegetation damaged by browsing. Both management practices have been assessed under their respective environmental assessment processes and project-specific environmental impacts and mitigation measures have been or will be implemented. Any potential conflicts arising from recovery efforts will need to be addressed early on through adaptive management.

Appendix B: Critical habitat maps

Enlarge Figure 6: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 6: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_1). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Note: The term "Protected Areas" used in the critical habitat maps has no relation to protection requirements under SARA.

Figure 7: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_2). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 7: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 8: Area within which critical habitat for Red Mulberry is found (critical habitat parcel# 228_3). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 8: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 9: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_4). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 9: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 10: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_5). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 10: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 11: Location and extent of critical habitat parcel# 228_6 for Red Mulberry. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 11: Location and extent of critical habitat parcel# 228_6 for Red Mulberry (PDF)

Figure 12: Location and extent of critical habitat parcel# 228_7 for Red Mulberry. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 12: Location and extent of critical habitat parcel# 228_7 for Red Mulberry (PDF)

Figure 13: Area within which critical habitat for Red Mulberry is found (critical habitat parcel# 228_8). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 13: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 14: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_9) and location and extent of critical habitat parcel # 228_10 for Red Mulberry. Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 14: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 15: Areas within which critical habitat for Red Mulberry are found (critical habitat parcel # 228_11, # 228_12, and # 228_13). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 15: Areas within which critical habitat for Red Mulberry are found

Figure 16: Location and extent of critical habitat parcel# 228_14 for Red Mulberry. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 16: Location and extent of critical habitat parcel# 228_14 for Red Mulberry (PDF)

Figure 17: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_15). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 17: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 18: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_16). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 18: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 19: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_17). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 19: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 20: Location and extent of critical habitat parcel # 228_18 for Red Mulberry. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 20: Location and extent of critical habitat (PDF)

Figure 21: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_19). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 21: Area within which critical habitat for Red Mulberry is found (PDF)

Figure 22: Location and extent of critical habitat parcel # 228_20 for Red Mulberry. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 22: Location and extent of critical habitat PDF

Figure 23: Location and extent of critical habitat parcel# 228_21 for Red Mulberry. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 23: Location and extent of critical habitat parcel# 228_21 for Red Mulberry (PDF)

Figure 24: Area within which critical habitat for Red Mulberry is found (critical habitat parcel # 228_22). Please refer to Section 7 for the description of biophysical attributes to help locate the critical habitat within this area. Critical habitat does not include existing infrastructure, existing cultivated areas, or unnatural vegetation types, as described in Section 7.

Enlarge Figure 24: Area within which critical habitat for Red Mulberry (PDF)

Appendix C: Recovery team members

Recovery team members and associated specialists

Donald Kirk, Chair, Natural Heritage Ecologist, OMNR, Guelph District
John D. Ambrose, Independent Consultant, Guelph, Ontario
Kevin S. Burgess, Assistant Professor, University of Virginia
Brian Husband, Professor, University of Guelph, Dept. of Botany
Dawn Burke, Carolinian Ecologist, OMNR, Southern Science and Information, London
Dennis Joyce, Provincial Forest Geneticist, OMNR, Sault Ste. Marie
Vicki McKay, Species at Risk Recovery Specialist, Parks Canada Agency
Natalie Iwanycki, Field Botanist and Herbarium Curator, Royal Botanical Gardens, Burlington

Recovery network

Shari Faulkenham, Ecologist, Hamilton Conservation Authority
Ross Hart, Park Superintendent, Wheatley Provincial Park, Ontario Parks
Kim Frohlich, Ecologist, Niagara Peninsula Conservation Authority
Kim Barrett, Senior Ecologist, Conservation Halton
Sandy Dobbyn, Zone Ecologist, Ontario Parks, Southwest Zone
Melinda Thompson-Black, Species at Risk Biologist, Ministry of Natural Resources, Aurora District
Deborah Whitehouse, Senior Director of Parks, Niagara Parks Commission
John McLaughlin, Forest Research Pathologist, Ontario Forest Research Institute
Gerry Waldron, Consulting Ecologist, Amherstburg

Former recovery team and network members

Heather Arnold, Former Science and Stewardship Coordinator, Nature Conservancy of Canada Linda DeVerno, former Acting Assistant Director, Science and Technology Directorate, Natural Resources Canada
Gary Mouland, former Park Ecologist, Point Pelee National Park of Canada
Paul Prevett, former Regional Ecologist, Southwest Zone and later Ecologist, Science and Technology Transfer Unit, OMNR
Robert Ritchie, Former Parks Naturalist, Niagara Parks Commission
Lisa Twolan, former RENEW Coordinator, Canadian Wildlife Service, Environment Canada P. Allen Woodliffe, District Ecologist, OMNR, Chatham/Aylmer
